Home ProductsLED High Mast Light

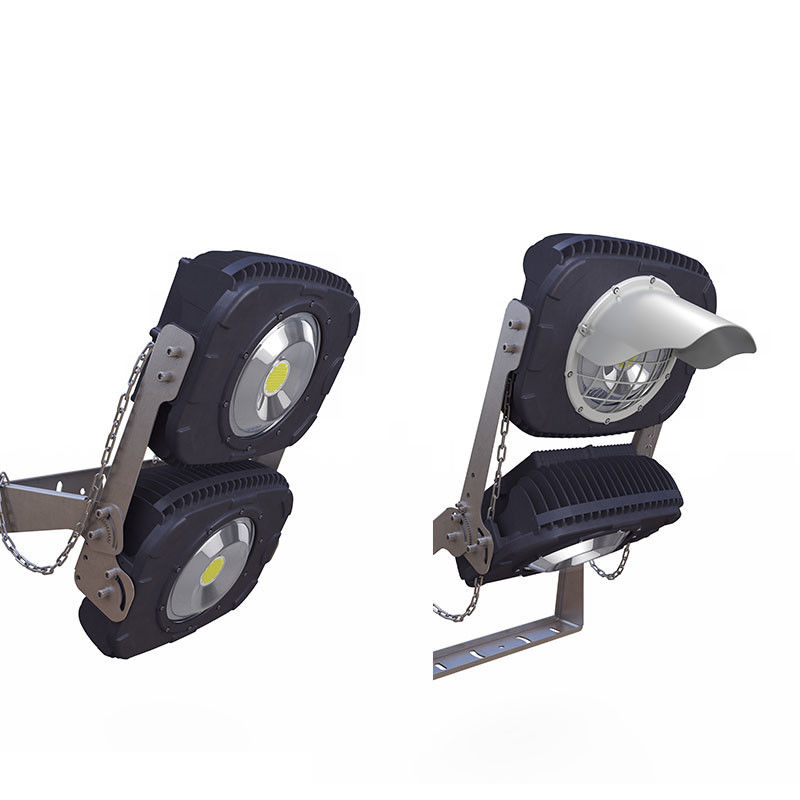

1000W Led High Mast Light

1000W Led High Mast Light

  • 1000W Led High Mast Light
1000W Led High Mast Light
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: LVD, RoHS, Saa, UL
Model Number: RGL2-1000A
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: $1,652.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*560mm<br>3.One 20'' Container can accept 250 Units
Contact Now
Detailed Product Description
Color Temperature(CCT): 5000K (Daylight), Cool White Lamp Luminous Efficiency(lm/w): 120, 120
Product Weight(kg): 30 Input Voltage(V): 80~315Vac, (347Vac Available On Request)
Lamp Body Material: Aluminum Alloy IP Rating: IP67
Lamp Luminous Flux(lm): 120000lm, 120000lm Product Name: High Mast LED Flood Lights
Type: High Efficiency LED
High Light:

120000lm Led High Mast Light

,

1000W Led High Mast Light

,

5000K high mast led lighting



Flood Lights Item Type and LED Light Source High Mast LED Flood Lights 1000W



Main Features



1. 80% lumen maintenance over 50,000hours

2. Wide Power range: 500W

3. 110-480Vac input voltage without additional adapter

4. Patent Built-in Serge Protection.

5. Top chips high efficacy 120lm/w with meanwell driver

6. IP67 waterproof, IK10 impact proof

7. Neutral Salt Spray Resistance

8. Anti-Corression power coating surface treatment

9. Stainless steel brackets material.(Upgradable to SS316)

10. 0-10VDC, DALI and wireless control available

11. DLC, TUV CE RoHS, CB, SAA, LM79 listed

12. High uniformity & color rendering index



Abstract

High mast lighting systems deliver large area illumination for stadiums and athletic fields,

roadways and interchanges, parking lots, airport aprons, freight terminals, and industrial facilities.



The appropriate partner will want to get an understanding of your desired outcome, not just what specific products they can sell you.

Not all LED products are created equal. There are different levels of value from different manufacturers for different applications,

and by working with a company that has the product expertise to recommend a solution that meets your project priorities,

you will ultimately achieve the best results.

We'd love to know more about your upcoming lighting project, or contact us and we'll get in touch with you.

Model
RGL2-1000A
Beam Angle
40° 60° 120° 140°
Stable Flux (5700K after 1 hour)
130000lm
Dimension (mm)
474*388*982


LEDs
900W
Power
Driver
100W
Consumption
Total
1000W
Replace HID Lamp
2200~2500W
Net Weight
30kg (66lbs)
Color Temperature
2700-6500K
Color Rendering
≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life
≥50000Hrs
Housing Material
Aluminum & Powder coating
Power Supply
Meanwell
IP Class
IP 65 (Upgradeable to IP 67)
IK Class
IK 10
Insulation Class
Class I
Working Temperature
-40C ~ 60C / -40F ~ 140F
Working Humidity
10% ~ 95%
AC Input
110-480Vac input voltage without additional adapter
DC Input
100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD
<10%
Power Factor
≥0.98
Warranty
LED Module
5 years
Driver
5 years
Housing
10 years




Lighting Distribution:



For Different application requirement, Razorlux Genius Series have different types of beam angles options.

at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.

 1000W Led High Mast Light 0

Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to

the delivery of products, each item will be checked and tested for several times.



Quality Control - Testing Equipments:

For every piece of Razorlux 200 Watt LED Flood Light are tested in different procedures.
No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)
No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.
No. 3 & 4: Dark Room for testing IES files and other Photometric datas.



Quality Control - Aging Department:
For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment

to make sure of their long term and stable performances within lifetime.


Razorlux Service:

1. Before and after sales in time service 7/24

2. Professional Lighting solution, DIALux simulation available

3. Payment terms: Paypal, TT, LC, DP etc

4. Shipment terms: FOB, CIF, CFR

5. Lead time: 5-7 working days

6. NO MOQ required, sample testing welcome
