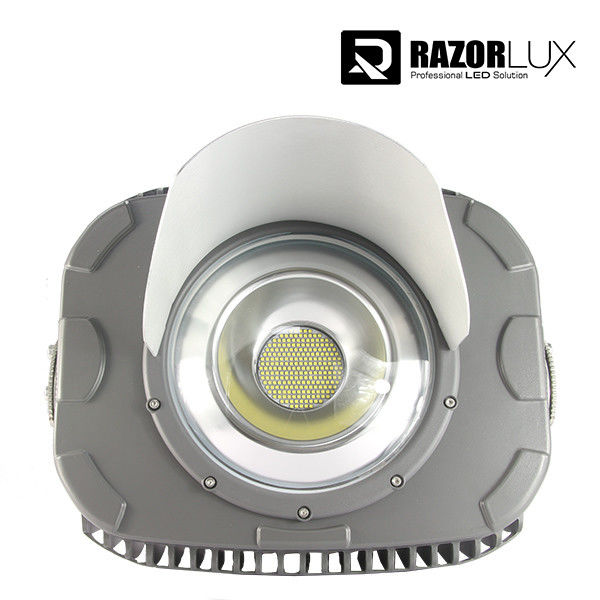

Aluminum Alloy Lamp Body Material And LED Light Source Portable Outdoor Sports Lighting

Aluminum Alloy Lamp Body Material And LED Light Source Portable Outdoor Sports Lighting

  • Aluminum Alloy Lamp Body Material And LED Light Source Portable Outdoor Sports Lighting
Aluminum Alloy Lamp Body Material And LED Light Source Portable Outdoor Sports Lighting
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, LVD, RoHS, Saa, UL
Model Number: RGL2-400A
Payment & Shipping Terms:
Price: $767.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units
Contact Now
Detailed Product Description
Color Temperature(CCT): 6000K (Daylight Alert), Cool White Lamp Luminous Efficiency(lm/w): 130, 130
Color Rendering Index(Ra): 80 Support Dimmer: Yes
Lighting Solutions Service: DIALux Evo Layout, Agi32 Layout, Auto CAD Layout Working Time (hours): 50000
Product Weight(kg): 15 Input Voltage(V): 80~315Vac, (347Vac Available On Request)
Beam Angle(°): 40° 60° 120° 140° Lamp Body Material: Aluminum Alloy
IP Rating: IP67 Application: Sports Stadiums
Light Source: LED Lamp Luminous Flux(lm): 52000, 52000lm
Working Temperature(℃): -40 To 60, -40 - 60 Warranty(Year): 5-Year
Product Name: Portable Outdoor Sports Lighting IP Class: IP 65 (Upgradeable To IP 67)
Color Temperature: 2700-6500K

Aluminum Alloy Lamp Body Material and LED Light Source Portable Outdoor Sports Lighting

Main Features
1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 400W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. Top chips high efficacy 130lm/w±7% with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. UL cUL DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index


Aluminum Alloy Lamp Body Material And LED Light Source Portable Outdoor Sports Lighting 0
Aluminum Alloy Lamp Body Material And LED Light Source Portable Outdoor Sports Lighting 2




ModelRGL2-400A
Beam Angle40° 60° 120° 140°

Stable Flux
(5700K after 1 hour)

52000lm
Dimension (mm)468*388*367
 LEDs360W
Power Driver40W
Consumption Total400W
Replace HID Lamp800~1000W
Net Weight17.9kg with stainless steel floodlight bracket
Color Temperature2700-6500K
Color Rendering≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life≥50000Hrs
Housing MaterialAluminum & Powder coating
Power SupplyMeanwell
IP Class

IP 65 (Upgradeable to IP 67)

IK Class

IK 10

Insulation ClassClass I
Working Temperature-40C ~ 60C / -40F ~ 140F
Working Humidity10% ~ 95%
AC Input110-480Vac input voltage without additional adapter
DC Input100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD<10%
Power Factor≥0.98
WarrantyLED Module5 year
Driver5 year
Housing10 year




Advantages of 500 Watt LED Outdoor Sport Court Lights

  • Top grade CREE/Samsung led chip
  • Meanwell Driver
  • Marine grade powder coating housing finish, and 316 stainless steel bracket
  • 15, 20, 30, 40, 60, 120, and 140 x 60 multil beam angle option
  • Clear tempered glass lens, and reflector make the classical shape lighting
  • IP67 and IK10 grade
  • Protection grid, visor available for optional
  • Anti-glare frosted lens available
