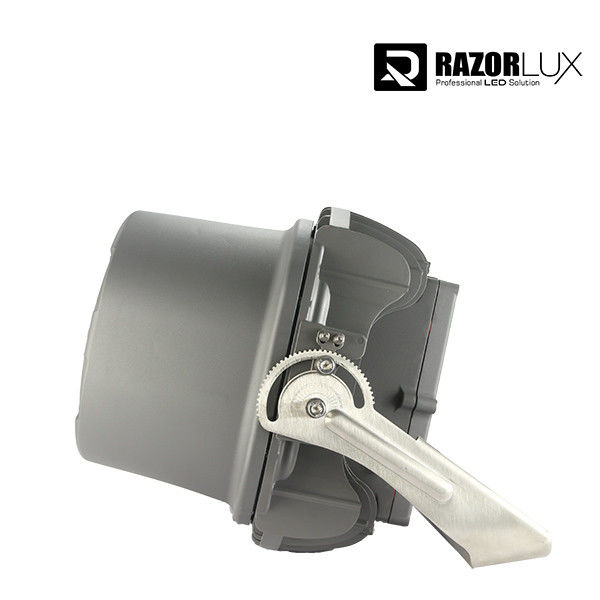

Football Field 140F Led Stadium Lights 1000 Watt 5700K Sports Lighting Fixtures

Football Field 140F Led Stadium Lights 1000 Watt 5700K Sports Lighting Fixtures

  • Football Field 140F Led Stadium Lights 1000 Watt 5700K Sports Lighting Fixtures
Football Field 140F Led Stadium Lights 1000 Watt 5700K Sports Lighting Fixtures
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, LVD, RoHS, Saa
Model Number: RGL-1000P-L15
Payment & Shipping Terms:
Price: $1,120.00 - $1,300.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units
Supply Ability: 5000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Color Temperature(CCT): 5700K (2700 ~ 6500K Available On Request) Lamp Luminous Efficiency(lm/w): 100
Lighting Solutions Service: Lighting And Circuitry Design, DIALux Evo Layout Working Time (hours): 50000
Input Voltage(V): 80 ~ 360Vac, 400 ~ 600Vac Beam Angle(°): 15° 20° 60° 120° 140°X60°, 15° 20° 60° 120° 140°X60°
Lamp Body Material: Aluminum & Powder Coating IP Rating: IP67
Application: Sports Stadiums Lamp Luminous Flux(lm): 100,000 Lm, 100,000 Lm
Working Temperature(℃): -40C~60C/40F~140F, -40C~60C/40F~140F Warranty(Year): 5-Year
Product Name: Football Field 1000 Watt Led Flood Light Power: 1000w
Color Temperature: 5700K (2700 ~ 6500K Available On Request)
High Light:

140F Led Stadium Lights

,

1000 watt Led Stadium Lights

,

5700K sports lighting fixtures


New technique chip technology outdoor garden lighting system ip67 football field 1000 watt led flood light

Description of 1000 watt led flood light.
1000 watt stadium floodlights can reach 120,000lumen, these 1000w Stadium Floodlights are perfect for basketball court, football field, tennis court and so on. If use it to replace HID lamps, it can keep 80% lumen maintenance. And the 1000 watt led stadium lighting can work over 50,000hours.

Model

1000P-L15
1000P-L20
1000A-L60
1000A-L120
1000A-L140
Beam Angle

15°
20°
60°
120°
140°x60°
Stable Flux
 (5700K after 1 hour)

100,000 lm
105,000 lm
110,000 lm
120,000 lm
 102,000 lm
Dimension (mm)

671x405x374mm  671x405x322mm  671x405x204mm





Power Consumption
LEDs
900W





Driver
100W





Total
1,000W




Replace HID Lamp

2000 ~ 3000W




Net Weight

29kg (64lbs) with stainless steel floodlight bracket




Color Temperature

5700K (2700 ~ 6500K available on request)




Color Rendering

≥Ra75 (≥Ra80, ≥Ra90 available on request)




Working Life

≥50000Hrs




Housing Material

Aluminum




Coating

Zinc Rich Paint




IP Class

IP 65 (Upgradeable to IP 67)




Insulation Class

Class I




Working Temperature

-40 ~ 60C / -40 ~ 140F




Working Humidity

10% ~ 95%




AC Input

80 ~ 360Vac, 400 ~ 600Vac




DC Input

100 ~ 400Vdc, 500Vdc ~ 800Vdc




THD

<10%




Power Factor

≥0.98





Warranty
LED Module
5 year





Driver
 5 year





Housing
10 year







Football Field 140F Led Stadium Lights 1000 Watt 5700K Sports Lighting Fixtures 4Football Field 140F Led Stadium Lights 1000 Watt 5700K Sports Lighting Fixtures 5

Features & Specifications of 1-10V Dimmable led flood light 400Watt

  • Patented Multi-function design, suitable for all working environments.
  • Rated Power: 400W-1200W
  • Input Voltage: AC90-305, DC127-431
  • Color Temperature: 2700K-6500K
  • Lamp Efficiency: 130LM/W
  • Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
  • CRI: Ra>75
  • IP Grade: IP65/IP67
  • Bracket: Stainless Steel
  • Net Weight: 15KG
  • Warranty: 5 Years

FAQ:

1. Are you a factory or trading company:

We are a factory located in Xi'an China, established in 2006.



2. What is your product range?

Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.



3. How many days of production will the order take?

Normally 7-15 days, depending on the order quanity.



4. How do you ship goods abroad?

For sample, trial order, or small quantities we will suggest shipping by air, for large quantity and bulk order we recommend shipping by sea.



5. Does your product support smart control like sensor, dimming, DALI, etc.

They support all of these features, please tell our sales during your negotiation when you need such features.



6. How do you deal with failed lights?

During the warranty period, we will send customer free part or lamp after checking the evidence. After warranty, we only charge the component fees, no extra charge for our customer.
