IP67 School Led Stadium Lights Outdoor 1000W 120000lm 6000K Daylight Alert

IP67 School Led Stadium Lights Outdoor 1000W 120000lm 6000K Daylight Alert

  • IP67 School Led Stadium Lights Outdoor 1000W 120000lm 6000K Daylight Alert
IP67 School Led Stadium Lights Outdoor 1000W 120000lm 6000K Daylight Alert
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, LVD, RoHS, Saa, UL
Model Number: RGL2-1000P
Payment & Shipping Terms:
Price: $10.00 - $1,652.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*560mm<br>3.One 20'' Container can accept 250 Units
Contact Now
All Products
LED Outdoor Flood Light (33)
Marine LED Flood Light (42)
Waterproof LED Flood Light (25)
LED Industrial Flood Light (18)
Dimmable LED Flood Light (22)
LED Stadium Lights (62)
LED Outdoor Sports Lighting (19)
LED Boat Deck Light (11)
LED High Mast Light (17)
LED Crane Light (10)
LED High Bay Lights (28)
LED Explosion Proof Light (28)
Detailed Product Description
Color Temperature(CCT): 6000K (Daylight Alert), Cool White Lamp Luminous Efficiency(lm/w): 120, 120
Color Rendering Index(Ra): 80 Support Dimmer: YES
Lighting Solutions Service: DIALux Evo Layout, Agi32 Layout, Auto CAD Layout Working Time (hours): 50000
Product Weight（kg）: 30 Input Voltage(V): 80~315Vac, (347Vac Available On Request)
Beam Angle(°): 15° 20° 30° Working Lifetime(Hour): 50000
Lamp Body Material: Aluminum Alloy IP Rating: IP67
Lamp Luminous Flux(lm): 120000, 120000lm Working Temperature(℃): -40 To 60, -40 - 60
Warranty(Year): 5-Year Product Name: High School Football Stadium Lights
Bracket Material: Stainless Steel
High Light:

120000lm Led Stadium Lights

,

IP67 School Led Stadium Lights

,

1000W led outdoor stadium lighting

HiFlood Lights Item Type and LED Light Source 1000W High School Football Stadium Lights





Main Features





1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 1000W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. TOP chips high efficacy 120lm/w with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index

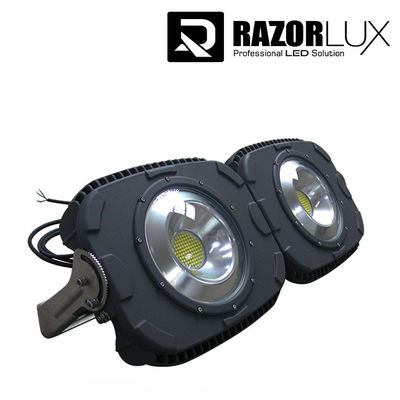

Photos of High School Football Stadium Lights:



 IP67 School Led Stadium Lights Outdoor 1000W 120000lm 6000K Daylight Alert 0



IP67 School Led Stadium Lights Outdoor 1000W 120000lm 6000K Daylight Alert 4





Parameter of Razorlux High School Football Stadium Lights:



Model RGL2-1000P
Beam Angle 15° 20° 30°

Stable Flux

(5700K after 1 hour)

 120000lm
Dimension (mm) 474*388*982
  LEDs 900W
Power  Driver 100W
Consumption  Total 800W
Replace HID Lamp 2200~2500W
Net Weight 38kg with stainless steel floodlight bracket
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class

IP 65 (Upgradeable to IP 67)
IK Class

IK 10
Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 year
Driver 5 year
Housing 10 year







Lighting Distribution of Razorlux High School Football Stadium Lights:



For Different application requirement, Razorlux Genius Series have different types of beam angles options.

at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.

 IP67 School Led Stadium Lights Outdoor 1000W 120000lm 6000K Daylight Alert 6









Model

G.W

Genius II 1000W P Series

38KGS





Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to

the delivery of products, each item will be checked and tested for several times.



Quality Control - Testing Equipments:



For every piece of Razorlux 1000 Watt LED Flood Light are tested in different procedures.

No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)

No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.
No. 3 & 4: Dark Room for testing IES files and other Photometric datas.







Quality Control - Aging Department:



For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment

to make sure of their long term and stable performances within lifetime.










Razorlux Service:









1. Before and after sales in time service 7/24

2. Professional Lighting solution, DIALux simulation available

3. Payment terms: Paypal, TT, LC, DP etc

4. Shipment terms: FOB, CIF, CFR

5. Lead time: 5-7 working days

6. NO MOQ required, sample testing welcome

Trade Shows





Razorlux at Lighting Fairs:



Hong Kong International Lighting Fair (Spring Edition) 2016/2017/2018

Hong Kong International Lighting Fair (Autumn Edition) 2016/2017/2018

2015 LED Expo in Den Bosch, Netherland

2016 Strategies in Light in Las Vegas, U.S.A

2016 IIDEX in Toronto, Canada
