Aluminum Alloy 1000 Watt Led Sports Field Lights 130000lm 130lm/W

Aluminum Alloy 1000 Watt Led Sports Field Lights 130000lm 130lm/W

  • Aluminum Alloy 1000 Watt Led Sports Field Lights 130000lm 130lm/W
  • Aluminum Alloy 1000 Watt Led Sports Field Lights 130000lm 130lm/W
  • Aluminum Alloy 1000 Watt Led Sports Field Lights 130000lm 130lm/W
  • Aluminum Alloy 1000 Watt Led Sports Field Lights 130000lm 130lm/W
  • Aluminum Alloy 1000 Watt Led Sports Field Lights 130000lm 130lm/W
  • Aluminum Alloy 1000 Watt Led Sports Field Lights 130000lm 130lm/W
Aluminum Alloy 1000 Watt Led Sports Field Lights 130000lm 130lm/W
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, LVD, RoHS, Saa, UL
Model Number: RGL2-1000A
Payment & Shipping Terms:
Price: $1,612.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units
Contact Now
All Products
LED Outdoor Flood Light (33)
Marine LED Flood Light (42)
Waterproof LED Flood Light (25)
LED Industrial Flood Light (18)
Dimmable LED Flood Light (22)
LED Stadium Lights (62)
LED Outdoor Sports Lighting (19)
LED Boat Deck Light (11)
LED High Mast Light (17)
LED Crane Light (10)
LED High Bay Lights (28)
LED Explosion Proof Light (28)
Detailed Product Description
Color Temperature(CCT): 6000K (Daylight Alert), Cool White Lamp Luminous Efficiency(lm/w): 120, 130
Color Rendering Index(Ra): 80 Support Dimmer: Yes
Working Time (hours): 50000 Product Weight（kg）: 30
Input Voltage(V): 80~315Vac, (347Vac Available On Request) Beam Angle(°): 40° 60° 120° 140°
Working Lifetime(Hour): 50000 Lamp Body Material: Aluminum Alloy
IP Rating: IP67 Working Temperature(℃): -40 To 65, -40 - 60
Warranty(Year): 5-Year Color Temperature: 2700-6500K
High Light:

130lm/w led sports field lights

,

1000 Watt led sports field lights

,

130000lm sports arena lighting

Aluminum Alloy Lamp Body Material and LED Light Source 1000W Stadium LED Light





Main Features





1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 1000W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. TOP chips high efficacy 130lm/w±7% with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index

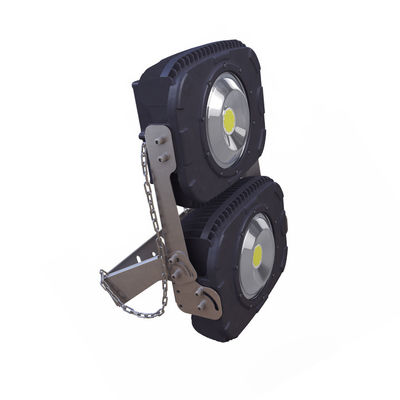

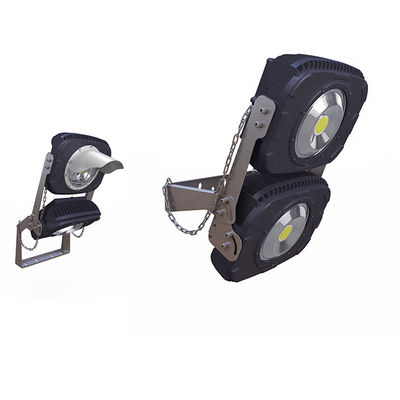

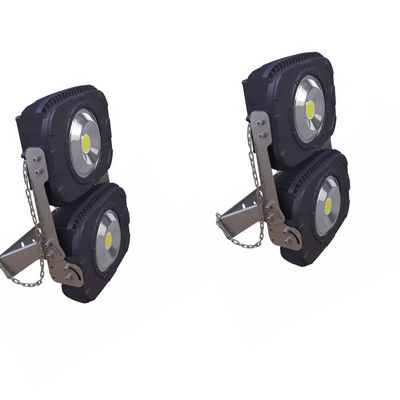

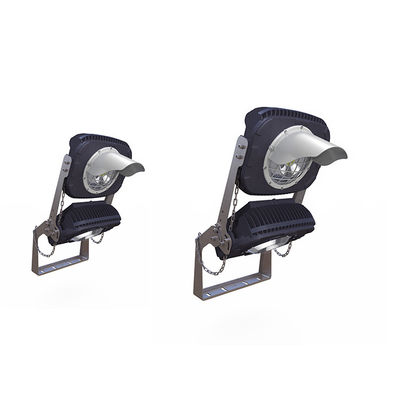

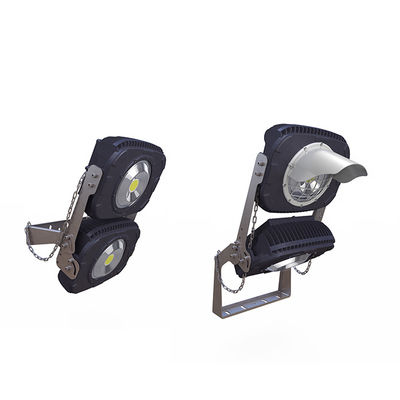

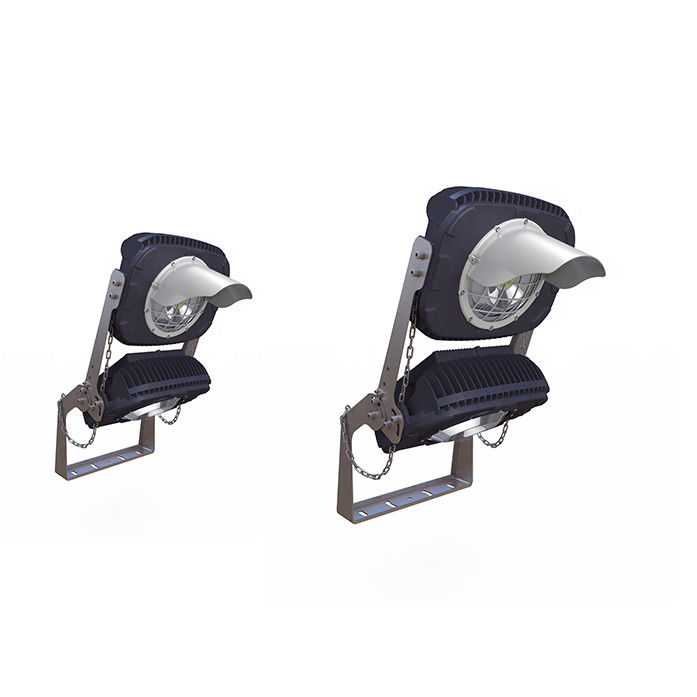

Photos of 1000W Stadium LED Light:



 Aluminum Alloy 1000 Watt Led Sports Field Lights 130000lm 130lm/W 0


Aluminum Alloy 1000 Watt Led Sports Field Lights 130000lm 130lm/W 3






Parameter of Razorlux 1000W Stadium LED Light:



Model RGL2-1000A
Beam Angle 40° 60° 120° 140°

Stable Flux

(5700K after 1 hour)

 130000lm
Dimension (mm) 474*388*982
  LEDs 900W
Power  Driver 100W
Consumption  Total 1000W
Replace HID Lamp 2200~2500W
Net Weight 30kg (66lbs)
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class

IP 65 (Upgradeable to IP 67)
IK Class

IK 10
Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 years
Driver 5 years
Housing 10 years







Lighting Distribution of 1000W Stadium LED Light:



For Different application requirement, Razorlux Genius Series have different types of beam angles options.

at the moment we have 40° 60° 120° 140° beam angle available.

 Aluminum Alloy 1000 Watt Led Sports Field Lights 130000lm 130lm/W 6






Certificates of Razorlux 1000W Stadium LED Light:

Aluminum Alloy 1000 Watt Led Sports Field Lights 130000lm 130lm/W 8

Model

G.W

Genius II 1000W A Series

30KGS







Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to

the delivery of products, each item will be checked and tested for several times.



Quality Control - Testing Equipments:



For every piece of Razorlux 1000 Watt LED Flood Light are tested in different procedures.

No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)

No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.
No. 3 & 4: Dark Room for testing IES files and other Photometric datas.







For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment

to make sure of their long term and stable performances within lifetime.






1. Before and after sales in time service 7/24

2. Professional Lighting solution, DIALux simulation available

3. Payment terms: Paypal, TT, LC, DP etc

4. Shipment terms: FOB, CIF, CFR

5. Lead time: 5-7 working days

6. NO MOQ required, sample testing welcome
