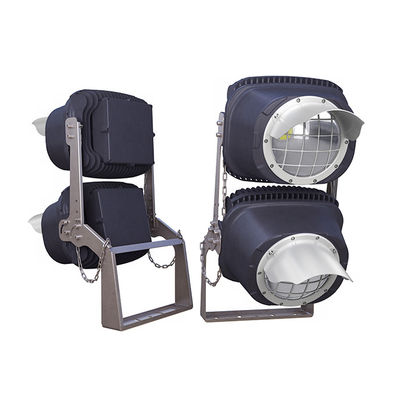

High Lumen 96000lm Led Football Stadium Lights Construction 120lm/W

High Lumen 96000lm Led Football Stadium Lights Construction 120lm/W

  • High Lumen 96000lm Led Football Stadium Lights Construction 120lm/W
High Lumen 96000lm Led Football Stadium Lights Construction 120lm/W
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, LVD, RoHS, Saa, UL
Model Number: RGL2-800P
Payment & Shipping Terms:
Price: $1,560.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*560mm<br>3.One 20'' Container can accept 250 Units
Contact Now
Detailed Product Description
Product Name: High Lumen IP67 800W LED Flood Light For High Mast Lamp Luminous Efficiency(lm/w): 120
Lamp Luminous Flux(lm): 96000lm Color Temperature(CCT): Cool White
Working Temperature(℃): -40 - 60 Warranty: 5Years
Housiong Material: Aluminum Working Life: 50000
IP Class: IP 65 (Upgradeable To IP 67)
High Light:

120lm/w led football stadium lights

,

96000lm led football stadium lights

,

IP67 led construction lights



High Lumen IP67 800W LED Flood Light for High Mast



Main Features



1. 80% lumen maintenance over 50,000hours

2. Wide Power range: 500W

3. 110-480Vac input voltage without additional adapter

4. Patent Built-in Serge Protection.

5. Top chips high efficacy 120lm/w with meanwell driver

6. IP67 waterproof, IK10 impact proof

7. Neutral Salt Spray Resistance

8. Anti-Corression power coating surface treatment

9. Stainless steel brackets material.(Upgradable to SS316)

10. 0-10VDC, DALI and wireless control available

11. DLC, TUV CE RoHS, CB, SAA, LM79 listed

12. High uniformity & color rendering index



High mast lighting is a type of site light fixture that is commonly used to illuminate large areas from a very high mounting height for storage, transportation, and pedestrian use and safety.

High mast fixtures are typically mounted on poles 40 feet to 150 feet tall, with four to 16 fixtures mounted on each pole.

This type of outdoor lighting is often used by municipalities, ports, municipal authorities, and in parking lots of large venues such as stadiums and sports facilities.



Freight terminals

High mast lighting can provide effective large-area illumination for outdoor logistics activities in airports, seaports, railroad terminals, and trucking terminals.

Freight terminals are often filled up with stacked cargo containers.

High piles of stock require a raised light source to provide adequate vertical illuminance and reduce shadows.

High mast lighting systems can be located remotely or used in confined spaces with no or minimal interference encroaching on adjacent cargoes or the loading and discharging equipment.


Model RGL2-800P
Beam Angle 15° 20° 30°

Stable Flux

(5700K after 1 hour)

96000lm
Dimension (mm) 474*388*982
  LEDs 720W
Power  Driver 80W
Consumption  Total 800W
Replace HID Lamp 1800~2200W
Net Weight 38kg with stainless steel floodlight bracket
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class

IP 65 (Upgradeable to IP 67)

IK Class

IK 10

Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 year
Driver 5 year
Housing 10 year



Lighting Distribution:



For Different application requirement, Razorlux Genius Series have different types of beam angles options.

at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.

 High Lumen 96000lm Led Football Stadium Lights Construction 120lm/W 0

Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to

the delivery of products, each item will be checked and tested for several times.



Quality Control - Testing Equipments:

For every piece of Razorlux 200 Watt LED Flood Light are tested in different procedures.
No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)
No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.
No. 3 & 4: Dark Room for testing IES files and other Photometric datas.



Quality Control - Aging Department:
For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment

to make sure of their long term and stable performances within lifetime.


Razorlux Service:

1. Before and after sales in time service 7/24

2. Professional Lighting solution, DIALux simulation available

3. Payment terms: Paypal, TT, LC, DP etc

4. Shipment terms: FOB, CIF, CFR

5. Lead time: 5-7 working days

6. NO MOQ required, sample testing welcome



Trade Shows
Hong Kong International Lighting Fair (Spring Edition) 2016/2017/2018
Hong Kong International Lighting Fair (Autumn Edition) 2016/2017/2018
2015 LED Expo in Den Bosch, Netherland
2016 Strategies in Light in Las Vegas, U.S.A
2016 IIDEX in Toronto, Canada
