LM79 Led High Mast Light 1000W 120000lm Aluminum Alloy

LM79 Led High Mast Light 1000W 120000lm Aluminum Alloy

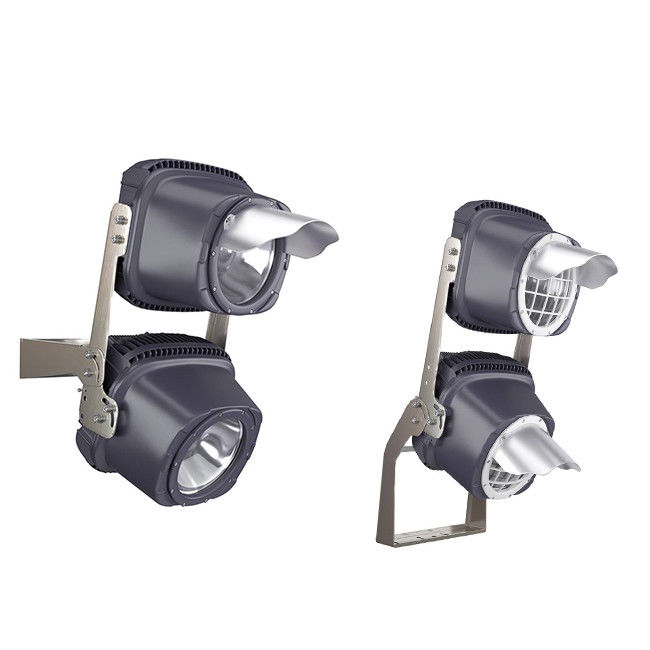

  • LM79 Led High Mast Light 1000W 120000lm Aluminum Alloy
LM79 Led High Mast Light 1000W 120000lm Aluminum Alloy
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, C-tick, EMC, LVD, RoHS, Saa
Model Number: RGL2-1000P
Payment & Shipping Terms:
Price: $1,652.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*560mm<br>3.One 20'' Container can accept 250 Units
Contact Now
Detailed Product Description
Support Dimmer: YES Lifespan (hours): 50000
Working Time (hours): 50000 Product Weight(kg): 30
Input Voltage(V): 80~315Vac Lamp Body Material: Aluminum Alloy
Product Name: Aluminum Cool White Color Temperature 1000W High Mast LED Light For Sports Lighting Working Life: 50000
High Light:

LM79 Led High Mast Light

,

120000lm Led High Mast Light

,

1000W high power led light

Aluminum Cool White Color Temperature 1000W High Mast LED Light for Sports Lighting

Main Features



1. 80% lumen maintenance over 50,000hours

2. Wide Power range: 500W

3. 110-480Vac input voltage without additional adapter

4. Patent Built-in Serge Protection.

5. Top chips high efficacy 120lm/w with meanwell driver

6. IP67 waterproof, IK10 impact proof

7. Neutral Salt Spray Resistance

8. Anti-Corression power coating surface treatment

9. Stainless steel brackets material.(Upgradable to SS316)

10. 0-10VDC, DALI and wireless control available

11. DLC, TUV CE RoHS, CB, SAA, LM79 listed

12. High uniformity & color rendering index



Abstract

High mast lighting systems deliver large area illumination for stadiums and athletic fields,

roadways and interchanges, parking lots, airport aprons, freight terminals, and industrial facilities.



Typical Applications

The ability to deliver large area illumination with maximum pole spacing lends high mast lighting to a multitude of applications.

That being said, high mast lighting is an extremely versatile outdoor lighting solution

in that it can provide accurate and comfortable visibility for massive outdoor areas during the nighttime and

extend the usability of large-scale outdoor facilities into night.

Among various types of outdoor lighting infrastructures, far-field, large area high mast lighting plays an exclusive role

in facilitating nighttime travel and transportation, citizen engagement in social gatherings and

sports/recreation activities, around-the-clock industrial production, safety and guidance of traffic,

and security of commercial, residential and public facilities and properties.



Model RGL2-1000P
Beam Angle 15° 20° 30°

Stable Flux

(5700K after 1 hour)

120000lm
Dimension (mm) 474*388*982
  LEDs 900W
Power Driver 100W
Consumption Total 800W
Replace HID Lamp 2200~2500W
Net Weight 38kg with stainless steel floodlight bracket
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class IP 65 (Upgradeable to IP 67)
IK Class IK 10
Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 year
Driver 5 year
Housing 10 year



Lighting Distribution:



For Different application requirement, Razorlux Genius Series have different types of beam angles options.

at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.

 LM79 Led High Mast Light 1000W 120000lm Aluminum Alloy 0

Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to

the delivery of products, each item will be checked and tested for several times.



Quality Control - Testing Equipments:

For every piece of Razorlux 200 Watt LED Flood Light are tested in different procedures.
No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)
No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.
No. 3 & 4: Dark Room for testing IES files and other Photometric datas.



Quality Control - Aging Department:
For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment

to make sure of their long term and stable performances within lifetime.


Razorlux Service:

1. Before and after sales in time service 7/24

2. Professional Lighting solution, DIALux simulation available

3. Payment terms: Paypal, TT, LC, DP etc

4. Shipment terms: FOB, CIF, CFR

5. Lead time: 5-7 working days

6. NO MOQ required, sample testing welcome
