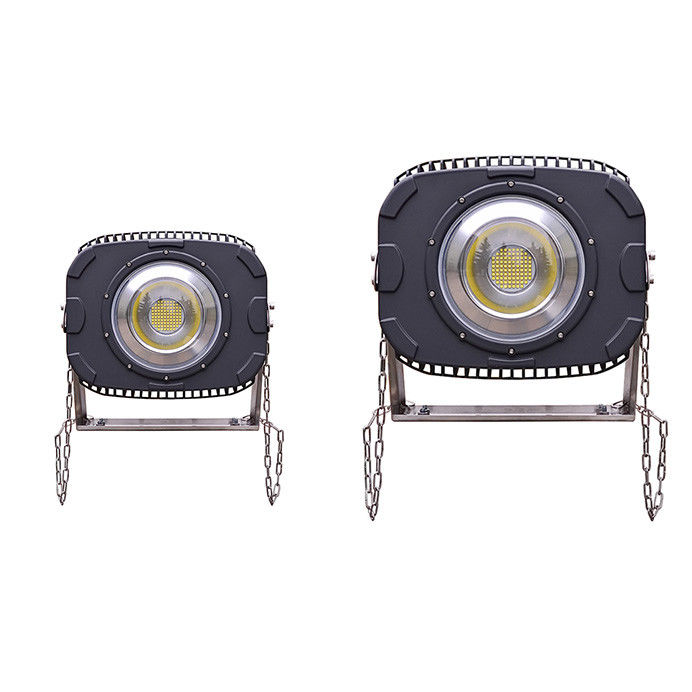

Outdoor 300 Watt Led High Mast Light IP67 Waterproof 39000lm LVD

Outdoor 300 Watt Led High Mast Light IP67 Waterproof 39000lm LVD

  • Outdoor 300 Watt Led High Mast Light IP67 Waterproof 39000lm LVD
Outdoor 300 Watt Led High Mast Light IP67 Waterproof 39000lm LVD
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, LVD, RoHS, Saa, UL
Model Number: RGL2-300A
Payment & Shipping Terms:
Price: $533.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units
Contact Now
All Products
LED Outdoor Flood Light (33)
Marine LED Flood Light (42)
Waterproof LED Flood Light (25)
LED Industrial Flood Light (18)
Dimmable LED Flood Light (22)
LED Stadium Lights (62)
LED Outdoor Sports Lighting (19)
LED Boat Deck Light (11)
LED High Mast Light (17)
LED Crane Light (10)
LED High Bay Lights (28)
LED Explosion Proof Light (28)
Detailed Product Description
Support Dimmer: YES Lifespan (hours): 50000
Working Time (hours): 50000 Product Weight（kg）: 12
Input Voltage(V): 80~315Vac, (347Vac Available On Request) Beam Angle(°): 40° 60° 120° 140°
Working Lifetime(Hour): 50000 Lamp Luminous Flux(lm): 39000, 39000lm
Working Temperature(℃): -40 To 60, -40 - 60 Product Name: 300 Watt High Mast Light
High Light:

39000lm Led High Mast Light

,

300 Watt Led High Mast Light

,

IP67 led high power lights



Hot Selling High Power Outdoor IP67 300 Watt High Mast Light



Main Features


1. 80% lumen maintenance over 50,000hours

2. Wide Power range: 500W

3. 110-480Vac input voltage without additional adapter

4. Patent Built-in Serge Protection.

5. Top chips high efficacy 120lm/w with meanwell driver

6. IP67 waterproof, IK10 impact proof

7. Neutral Salt Spray Resistance

8. Anti-Corression power coating surface treatment

9. Stainless steel brackets material.(Upgradable to SS316)

10. 0-10VDC, DALI and wireless control available

11. DLC, TUV CE RoHS, CB, SAA, LM79 listed

12. High uniformity & color rendering index



LED High-Mast lighting for highways, interchanges, ports, rail yards, container yards, correctional facilities,

truck stops, water treatment plants, large area Industrial, airports, security lighting, toll plazas and sports lighting.

The fourth generation Holophane HMAO™ LED high-mast fixture provides long system life and up to 65% energy reduction over traditional HID products.

Razorlux offers the flexibility of multiple lumen packages, integrated control options, both roadway and area optical distributions,

all providing the customer choices on light levels and energy savings when replacing 400-1000+ watt HID products.

This LED high-mast fixture is designed to excel for both retrofit and new construction.

Available with a wide variety of advanced controls options as well as XVOLT feature to enhance power quality protection of 277-480V operation.



Model RGL2-300A
Beam Angle 40° 60° 120° 140°

Stable Flux

(5700K after 1 hour)

 39000lm
Dimension (mm) 468*388*367
  LEDs 270W
Power Driver 30W
Consumption Total 300W
Replace HID Lamp 600~800W
Net Weight 17.9kg with stainless steel floodlight bracket
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class IP 65 (Upgradeable to IP 67)
IK Class IK 10
Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 year
Driver 5 year
Housing 10 year



Lighting Distribution:


For Different application requirement, Razorlux Genius Series have different types of beam angles options.

at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.

 Outdoor 300 Watt Led High Mast Light IP67 Waterproof 39000lm LVD 0



Packaging & Shipping

Model

G.W

Genius II Compact 600W A Series

19KGS

 Outdoor 300 Watt Led High Mast Light IP67 Waterproof 39000lm LVD 2





Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to

the delivery of products, each item will be checked and tested for several times.



 Quality Control - Testing Equipments:

For every piece of Razorlux 200 Watt LED Flood Light are tested in different procedures.

No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)

No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.
No. 3 & 4: Dark Room for testing IES files and other Photometric datas.



Quality Control - Aging Department:
For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment

to make sure of their long term and stable performances within lifetime.


Razorlux Service:

1. Before and after sales in time service 7/24

2. Professional Lighting solution, DIALux simulation available

3. Payment terms: Paypal, TT, LC, DP etc

4. Shipment terms: FOB, CIF, CFR

5. Lead time: 5-7 working days

6. NO MOQ required, sample testing welcome



Trade Shows

Hong Kong International Lighting Fair (Spring Edition) 2016/2017/2018

Hong Kong International Lighting Fair (Autumn Edition) 2016/2017/2018

2015 LED Expo in Den Bosch, Netherland

2016 Strategies in Light in Las Vegas, U.S.A

2016 IIDEX in Toronto, Canada





Tag:

1000W Led High Mast Light,

500W Led High Mast Light,

120000lm Led High Mast Light
