Feature: Curving heat sink and exterior Meanwell driver for outstanding heat dissipation and easy maintenance.
Lumileds Lumileds and Samsung LEDs with more than 120lm/w system efficiency.
Model No.: RHB-100A, RHB-150A, RHB-200A
Rated Power:100W, 150W, 200W
Input Voltage: AC100-277V
Color Temperature:3000-6500K
Lamp Efficiency: 120lm/w
Beam Angle: 60°,90°,110°
CRI: Ra>80 IP Grade: IP65
Benefits of LED High Bay Lights
Lower Utility Costs - Because LEDs use less power to get the same (or better) results than fluorescent or metal halide lights,
they provide reduced utility costs. They also burn at a cooler temperature so they won't negatively impact your cooling unit.
| Model |
RHB-100A |
RHB-150A |
RHB-200A |
| Size |
Φ280*185mm |
Φ340*187mm |
Φ400*196mm |
| Rated Power |
100W |
150W |
200W |
| Working Voltage |
AC85-265V 50-60Hz |
| LED Quantity |
140PCS, SMD3030 |
210PCS, SMD3030 |
294PCS, SMD3030 |
| Color Temperature |
2800-3000k, 3000-3200k, 4000-4500k, 5000-5500k, 6000-6500K |
| Luminous Flux |
12000LM |
18000 lm |
24000 lm |
| CRI |
>75 |
| Materials |
PC+Aluminum |
| Beam Angle |
60°, 90°, 120° |
| IP Grade |
IP65 |
| Package |
3.5kg/1pcs/Carton |
4.8kg/1pcs/Carton |
6.5kg/1pcs/Carton |
| Net Weight |
2.8kg/pcs |
3.5kg |
5.5kg/pcs |
| Power Factor |
0.95 |
| Insulation Class |
Class I |
| Warranty |
5 years |

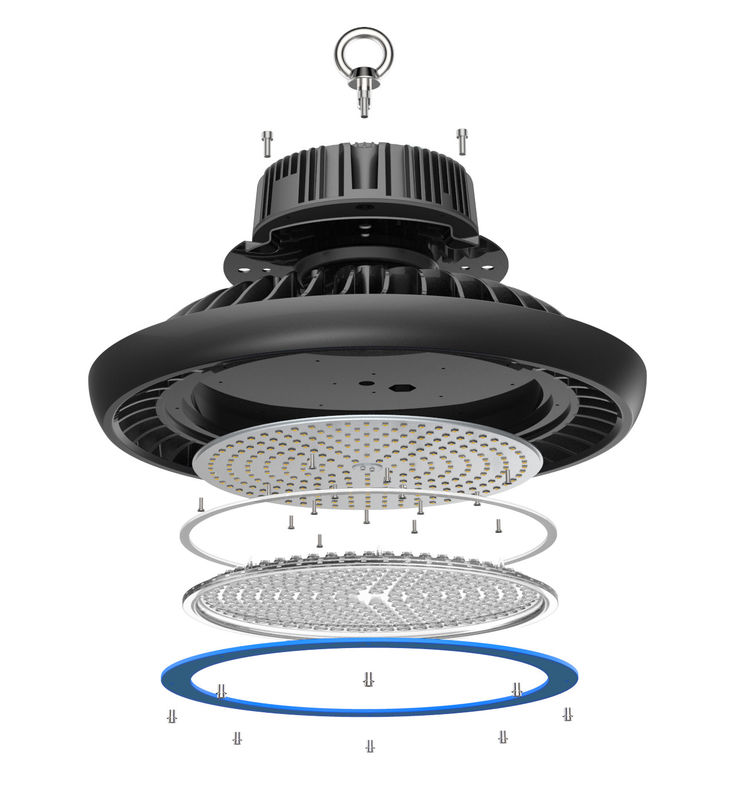

1. The Driver box is separated from the heat sink, very good for heat dissipation.
2. Large area for heat dissipation, it is uniform.
3. Philips SMD3030 chip or very bright SMD2835 chip, CRI>80 with 125lm/w system light efficiency.
4. Double sided water-proof silicone to reach water-proof, moisture-proof and dust proof.
5. PMMA lens or clear glass cover, clear PC cover, precision light distribution.
6. Stainless steel hexagonal screw, anti-corrosion rust.
