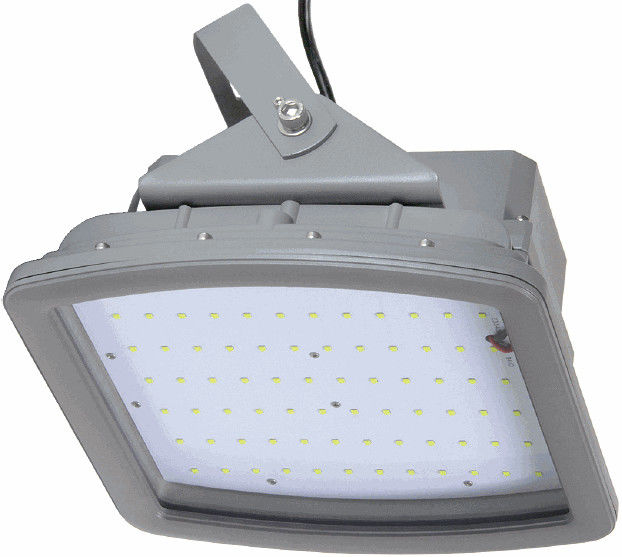

2700K Led Gas Station Canopy Lights 200W Construction Site Explosion Proof

2700K Led Gas Station Canopy Lights 200W Construction Site Explosion Proof

  • 2700K Led Gas Station Canopy Lights 200W Construction Site Explosion Proof
2700K Led Gas Station Canopy Lights 200W Construction Site Explosion Proof
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, C-tick, EMC, PSE, RoHS, Saa
Model Number: R EP-J-200
Payment & Shipping Terms:
Price: $300.00 - $400.00/Pieces
Packaging Details: Delivery term: FOB Tianjin/Shanghai, EX-Work, CFR, CIF <br>3-5 days for samples after payment
Supply Ability: 1000 Piece/Pieces per Week
Contact Now
Detailed Product Description
Color Temperature(CCT): 5700/4000/2700K, Cool White Input Voltage(V): 90-305 VAC
Lamp Luminous Efficiency(lm/w): 116, 116(lm/w) Lighting Solutions Service: Lighting And Circuitry Design, DIALux Evo Layout, Agi32 Layout
Lifespan (hours): 100,000 Working Time (hours): 100,000
Product Weight(kg): 12 CRI (Ra>): 75
Working Temperature(℃): -30 - 50 Product Name: 5-year Warranty IP68 Construction Site Gas Station Marine Grade 200W Led Explosion-proof Light
Material: Die Cast Aluminum
High Light:

2700K led gas station canopy lights

,

200W led gas station canopy lights

,

led canopy lights for petrol station

5-year warranty IP68 construction site gas station marine grade 200W led explosion-proof light

FEATURES:
1. High Efficacy low decay 700MA LED chip
2. High heat transmit die cast housing ADC12 aluminum, patent design, IP68
3. Shock and vibration resistant tempered glass, super clear 95% light transmit rate
4. Anti-glare.Scientific optical reflector design, making the light more focus,even, comfortable for eyes
5. Original Bridgelux LED source,high luminous efficacy and long lifespan
6. MEANWELL HLG series driver, the highest level of MEANWELL driver
7. Surface treatment-Powder painted, salt resistant and chemical resistant, also hard for dust to accumulate on the surface
8. 2.0mm aluminum PCB with heat index 2.5, keep LED working under cool temperature
9. Working temperature: -30ºC to 50ºC.

Application
1. Suitable for gas station, petroleum and chemical industries, coal mine, military, airport, warehouse, marine etc.
2. Zone1 & Zone2 gaseous environment, and Zone21 & Zone22 dust environment.
3. Class I Division 2 Group A, B, C, D


Long Lifespan & Better Design

50000 Hour Life with fully-sealed & vibration & resistant aluminum alloy housing which is designed for better safety & cooling & stable quality

to prevent the release of sparks and ensure long life performance! Moreover IP66 waterproof rating will provide full protection for dust and moisture area.

Instand on with Easy Installation (3/4" NPT or Bracket), NO humming & NO UV or IR in the beam, green and eco-friendly,

you will love this new product immediately!



Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation.

Instead of heating a small filament or using a combination of gases to produce light,

light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light.

With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology.

By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions.

This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.


ITEM NO. RLEP-J40 RLEP-J100 RLEP-J200
TOTAL POWER 30w 100w 185w
Replace HPS 150w 300-350w 700-1000w
Dimension 200*200*270mm 300*300*175mm 400*400*185
Weight 4KG 7.5KG 12KG
Reflector/ wide angle 120 wide angle wide angle
Nominal lumens 3480lm 11600lm 20880lm
Driver Current 350mA
# OF LEDS 24 84 156
System Efficacy 116 LM/W
Light Color option 5700/4000/2700K
Materia Die Cast Aluminum
Wide AC input 90-305 VAC
Power Factor 0.98
Total Harmonic Distortion < 10%
Surge protection IEC/EN 61000-4-5
Operation temp -30 ºC to +50 ºC
IP class 68
Rated Life 100,000+ hrs
Warranty 5 years
Certificate ROHS CE DLC ATEX SAA PSE C-TICK


1. UL TUV CB EMC CE certified MW
HLG series power driver, IP67 protective level, 7 years warranty.

2. The integration of reflective optical design,install directly in the light body,
make the light more focus and comfortable for eyes.

3. High pressure die casting alloy aluminum housing, create through high pressure(1600
ton) in one piece,high explosion proof level and IP68 waterproof protection.

4. LED chip with 2.0mm thick Aluminum PCB board installed directly onto Aluminum Shell. As a result,
the whole lamp is integrated as a radiator for the LED chips. Besides,the distance of LEDS are good
enough for spreading heat, to ensure long lifespan, and with special circuit design, each LED chip
won’t affect the others when fail to work, so the lamp will keep working even if some LED chips stopped.
