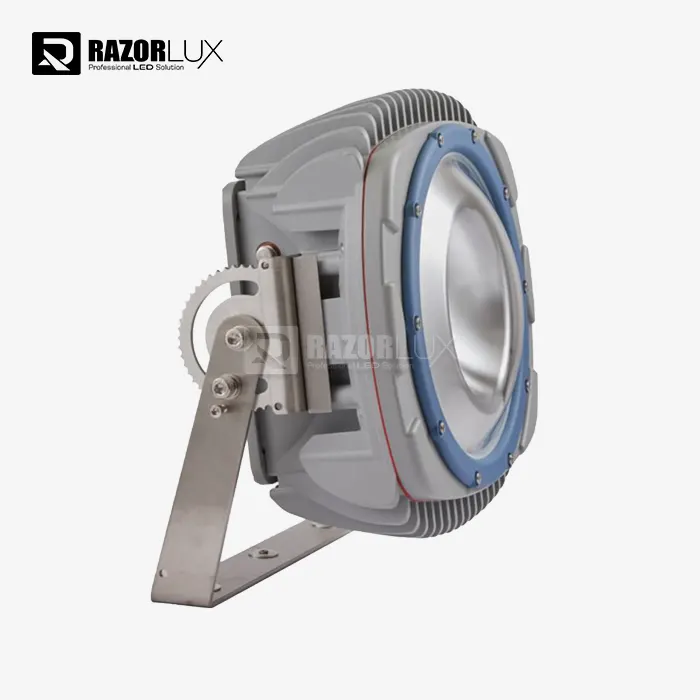

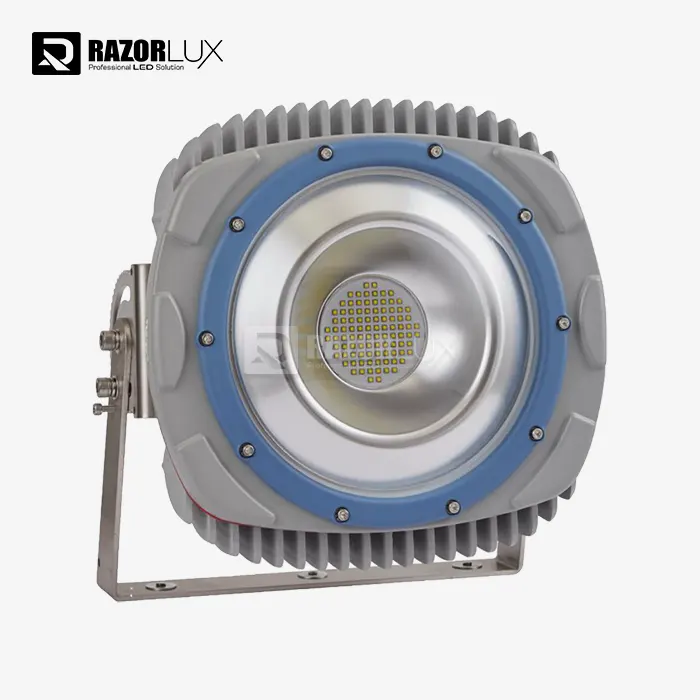

Lampu Sorot Halogen 500W Setara LED

Desain multifungsi yang dipatenkan, cocok untuk semua lingkungan kerja.
Nilai Daya: 270W
Tegangan Masukan: 110-480Vac DC100 ~ 400Vdc, 500Vdc ~ 800Vdc
Suhu Warna: 2700K-6500K
Efisiensi Lampu: 130LM/W
Sudut Pancaran: 40°, 60°, 120°, 140°x60°.
CRI: Ra> 75
IP Grade: IP67
Braket: Baja tahan karat
Berat Bersih: 15KG
Garansi: 5 Tahun
Sertifikat: CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001

Kirim Permintaan Unduh

Deskripsi Produk*

Produsen dan Pemasok Lampu Sorot Halogen 500W Setara LED

Usang 500W halogen floodlight led equivalent, require consistent support, and come up short when you require them most.
Our mechanical Led arrangement delivers:

65,000 lumens (equivalent to 1000W+ halogen brightness)
50,000-hour life expectancy (25x longer than halogen bulbs)
Zero warm-up time • Instant full brightness

Trusted by 2,000+ offices around the world counting mining operations, holder ports, and fabricating plants in 47 countries.

Lampu Sorot Halogen 500W Setara LED

Mengapa Memilih Produk Kami?

Mitra 500W halogen floodlight led equivalent offers numerous advantages over traditional halogen options:

Efisiensi Energi: Mengonsumsi daya hingga 80% lebih sedikit sambil tetap mempertahankan pencahayaan yang cemerlang.
Umur Panjang: Nikmati hingga 50,000 jam pengoperasian, mengurangi biaya penggantian.
Desain Kuat: Dibuat untuk menahan lingkungan keras dengan perlindungan IP65/IP67.
Aplikasi Serbaguna: Sempurna untuk lokasi konstruksi, fasilitas olahraga, dan acara luar ruangan.
Opsi yang Dapat Disesuaikan: Pilih dari berbagai sudut sinar dan suhu warna sesuai kebutuhan Anda.
,war

500W Halogen Floodlight LED Equivalent Specifications

Sudut Balok & Diagram Pemasangan

Pilih Model		RGL2-500A
Beam Angle		40 ° 60 ° 120 ° 140 °
Fluks Stabil (5700K setelah 1 jam)		65000lm
Dimensi (mm)		468 * 388 * 367
	LED	450W
Daya	sopir	50W
Konsumsi	Total	500W
Ganti Lampu HID		1000 ~ 1200W
Berat Bersih		15kg dengan braket lampu sorot baja tahan karat
Suhu Warna		2700-6500K
Rendering Warna		≥Ra75 (≥Ra80, ≥Ra90 tersedia berdasarkan permintaan)
Kehidupan bekerja		50000Jam
Perumahan Material		Aluminium & Pelapis Serbuk
Sumber Daya listrik		Meanwell
Kelas IP		IP 67
Kelas IK		IK 10
isolasi Kelas		kelas I
Suhu bekerja		-40C ~ 60C / -40F ~ 140F
Bekerja Kelembaban		10 95% ~%
Input AC		Tegangan input 110-480Vac tanpa adaptor tambahan
Input DC		Tegangan 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD		<10%
Faktor kekuatan		≥ 0.98
Jaminan	Modul LED	5 tahun
	sopir	5 tahun
	Perumahan	10 tahun

Choose the right pillar for your application:

15°/20°: Long-distance spotlighting (100m+)
30°/40°: Centered work areas
60°: Common range lighting
120°: Wide border coverage
140°x60°: Asymmetric (stopping parts, facades)

Sertifikasi & Kepatuhan

✓ UL/DLC Listed (North America)
✓ CE/RoHS (Europe)
✓ SAA/C-Tick (Australia/NZ)
✓ ATEX Zone 2 (unstable environments - optional)
✓ ISO 9001:2015 Certified Factory
✓ IES LM-80 Tested (lumen maintenance)

Dibuat untuk Industri Anda

Pertambangan & Industri yang Luar Biasa

·Challenge: Dust, vibration, corrosive atmospheres

·Solution: IP67 fixed lodging + strengthened stun mounts

·Proof: 500+ units working in Australian coal mines since 2019

Ports & Marine Facilities

·Challenge: Saltwater corrosion + 24/7 operation

·Solution: 316 marine-grade stainless steel + 5-year coastal guarantee

Situs konstruksi

· Challenge: Temporary power + rough handling

· Solution: 90-305V input + military-grade connectors

· Proof: Survived 3-year infrastructure project in Mongolia (-35°C winters)

Olahraga & Hiburan

· Challenge: Broadcast-quality color + instant-on

· Solution: CRI >80 option + zero flicker at 5000fps

· Proof: Used in 12 professional cricket stadiums across India

Gudang & Logistik

· Challenge: High ceilings + energy costs

· Solution: 140°x60° asymmetric beam + smart dimming

· Proof: Cut lighting costs 73% for 250,000 sq ft Amazon facility

produk-1-1 ,war

Instalasi & Kustomisasi

Opsi Pemasangan Fleksibel

· Trunnion mount: Adjustable 0-180° (standard)

· Yoke mount: High-bay applications

· Pole mount: Parking lots & perimeters

· Explosion-proof: ATEX/IECEx zones

Dukungan Instalasi Profesional:

· Free CAD drawings with every order

· Remote video consultation during install

· On-site commissioning available (50+ unit orders)

produk-1-1 ,war,war

produk-1-1

,warWarranty & Support (We Stand Behind Our Products)

Garansi Bebas Khawatir 5 Tahun

Cakupan Komprehensif:

· LED chips & driver electronics

· Housing & optics

· All mounting hardware

· Advanced replacement option (no downtime)

Failure Rate: <0.3% in first 5 years (industry avg: 2.1%)

Dukungan Teknis Seumur Hidup

· 24/7 emergency hotline

· Live chat with lighting engineers

· Video troubleshooting within 2 hours

· Replacement parts available for 10+ years

Pertanyaan yang Sering Diajukan

How bright is this compared to my current 500W halogen?

Most 500W incandescent lamp create 8,000-10,000 lumens. Our 500W Led outputs 65,000 lumens—that's 6-8x brighter. You'll likely require less installations to accomplish superior light.

Will this work in explosive/hazardous locations?

Our standard demonstrate is appraised for common mechanical utilize (Class I Div 2 compatible). For ATEX Zone 1/2 or NEC Course I Div 1, we offer certified explosion-proof lodgings.

Can I control these with my building administration framework?

Ya. Kami mendukung:

· 0-10V dimming (most common BMS)

· DALI-2 protocol

· Modbus RTU/TCP

· DMX512 (entertainment venues)

· Custom API integration for IoT platforms

What if I need a different voltage (e.g., 48VDC for solar)?

The standard model accepts DC 127-431V. For low-voltage DC systems (12V/24V/48V), we manufacture specialized drivers.
