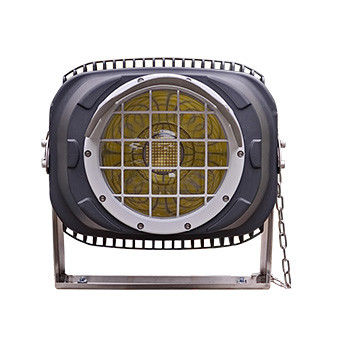

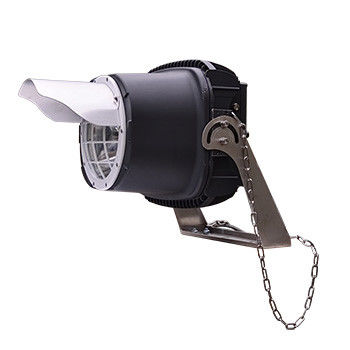

72000lm Led Baseball Field Lights

72000lm Led Baseball Field Lights
72000lm Led Baseball Field Lights 72000lm Led Baseball Field Lights

Large Image :  72000lm Led Baseball Field Lights

Product Details:
Place of Origin: Xi'an, China
Brand Name: Led Stadium Light
Certification: SAA UL CE TUV RoHS
Model Number: RGL-600w
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: 300-600 USD
Packaging Details: 1 unit/carton
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000 pcs per month
Detailed Product Description
Beam Angle(°): 15° 20° 30° Input Voltage(v): 90V-305VAC 47-63 Hz
Cri (ra>): 100~480Vac Ip Rating: IP67
Working Temperature(℃): -40C~60C/40F~140F Lamp Luminous Efficiency(lm/w): 72000lm
Color Temperature(cct): 2700-6500K Power Factor: ≥0.98
Warranty: 5 Years LED Chip: Samsung
High Light:

6500K led baseball field lights

,

72000lm led baseball field lights

,

IP67 Waterproof badminton court flood lights

Best Sale Lights Led Stadium Light To Soccer Tennis Court Flood Light With IP67 Waterproof





Main Features





1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 400W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. TOP chips high efficacy 130lm/w±7% with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index









Photos of Led Stadium Light:







250W LED flood light-1.jpg







250w led flood light-5.jpg

Product Description











Parameter of Led Stadium Light:



Model RGL2-600w
Beam Angle 15° 20° 30°

Stable Flux

(5700K after 1 hour)

72000lm
Dimension (mm) 487*388*391
  LEDs 540W
Power  Driver 60W
Consumption  Total 600W
Replace HID Lamp 1200~1500W
Net Weight 19kg with stainless steel floodlight bracket
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class

IP 65 (Upgradeable to IP 67)

IK Class

IK 10

Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 year
Driver 5 year
Housing 10 year







Lighting Distribution of Razorlux Led Stadium Light:



For Different application requirement, Razorlux Genius Series have different types of beam angles options.

at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.

 photometric data.jpg












Certificates of Razorlux:



1. UL Certificate No.: 20141114-E471702

2. TUV-EMC Certificate No. :E8A 16 11 76176 008

3. TUV-LVD Certificate No.: N8A 16 10 76176 005

4. LM-79 Testing Report No. :20141114-E471702

5. SAA Certificate No.: SAA132163

6. RoHs Certificate No.: LCGCll110284 (Issued on JuI.10, 2012)

7. For DLC, please check in website: www.designlights.org/search/#/results, search by keyword "Razorlux" for more details.







Packaging & Shipping





Model

G.W

Genius II Compact 600W A Series

19KGS





Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to

the delivery of products, each item will be checked and tested for several times.



Quality Control - Testing Equipments:



For every piece of Razorlux 400 Watt LED Flood Light are tested in different procedures.

No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)

No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.

No. 3 & 4: Dark Room for testing IES files and other Photometric datas.







Quality Control - Aging Department:



For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment

to make sure of their long term and stable performances within lifetime.

Aging test.JPG









Razorlux Service:









1. Before and after sales in time service 7/24

2. Professional Lighting solution, DIALux simulation available

3. Payment terms: Paypal, TT, LC, DP etc

4. Shipment terms: FOB, CIF, CFR

5. Lead time: 5-7 working days

6. NO MOQ required, sample testing welcome

Trade Shows





Razorlux at Lighting Fairs:



Hong Kong International Lighting Fair (Spring Edition) 2016/2017/2018

Hong Kong International Lighting Fair (Autumn Edition) 2016/2017/2018

2015 LED Expo in Den Bosch, Netherland

2016 Strategies in Light in Las Vegas, U.S.A

2016 IIDEX in Toronto, Canada
