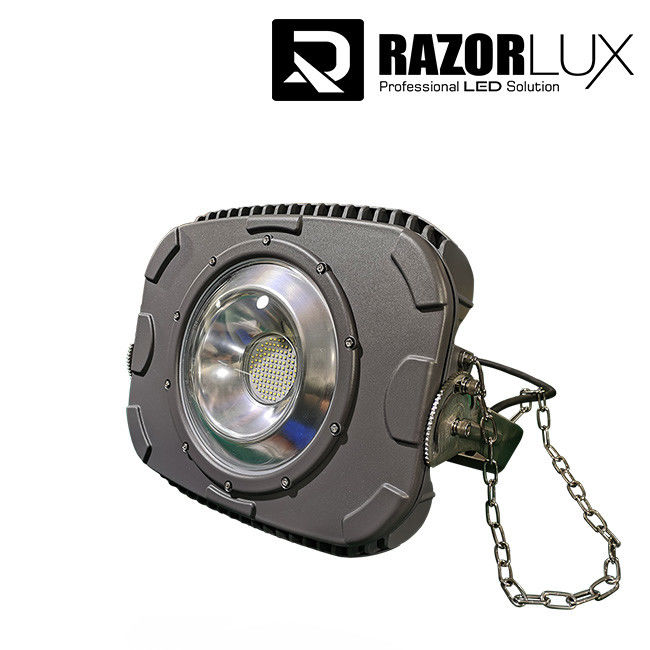

2021 Hot Selling Aluminum Alloy 500W Sports Floodlights for Tennis Court, Football Field

2021 Hot Selling Aluminum Alloy 500W Sports Floodlights for Tennis Court, Football Field

  • 2021 Hot Selling Aluminum Alloy 500W Sports Floodlights for Tennis Court, Football Field
2021 Hot Selling Aluminum Alloy 500W Sports Floodlights for Tennis Court, Football Field
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, LVD, RoHS, Saa, UL
Model Number: RGL2-500A
Payment & Shipping Terms:
Price: $819.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units
Contact Now
Detailed Product Description
Color Temperature(CCT): 6000K (Daylight Alert), Cool White Lamp Luminous Efficiency(lm/w): 125, 130
Color Rendering Index(Ra): 80 Support Dimmer: YES
Lighting Solutions Service: DIALux Evo Layout, Agi32 Layout, Auto CAD Layout Working Time (hours): 50000
Product Weight(kg): 15 Input Voltage(V): 80~315Vac, (347Vac Available On Request)
CRI (Ra>): 75 Beam Angle(°): 40° 60° 120° 140°
Working Lifetime(Hour): 50000 Lamp Body Material: Aluminum Alloy
IP Rating: IP67 Application: Sports Stadiums
Light Source: LED Lamp Luminous Flux(lm): 50000, 65000lm
Working Temperature(℃): -40 To 60, -40 - 60 Warranty(Year): 5-Year
Product Name: Sports Floodlights IP Class: IP 65 (Upgradeable To IP 67)
LED Chip: Samsung

2019 Hot Selling Aluminum Alloy 500W Sports Floodlights for Tennis Court, Football Field



Main Features
1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 500W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. top chips high efficacy 130lm/w±7% with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index







2021 Hot Selling Aluminum Alloy 500W Sports Floodlights for Tennis Court, Football Field 2

2021 Hot Selling Aluminum Alloy 500W Sports Floodlights for Tennis Court, Football Field 4







Parameter of Razorlux Sports Floodlights:



Model RGL2-500A
Beam Angle 40° 60° 120° 140°

Stable Flux

(5700K after 1 hour)

65000lm
Dimension (mm) 468*388*367
  LEDs 450W
Power  Driver 50W
Consumption  Total 500W
Replace HID Lamp 1000~1200W
Net Weight 17.5kg with stainless steel floodlight bracket
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class

IP 65 (Upgradeable to IP 67)

IK Class

IK 10

Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 year
Driver 5 year
Housing 10 year




Certificates of Razorlux:



1. UL Certificate No.: 20141114-E471702

2. TUV-EMC Certificate No. :E8A 16 11 76176 008

3. TUV-LVD Certificate No.: N8A 16 10 76176 005

4. LM-79 Testing Report No. :20141114-E471702

5. SAA Certificate No.: SAA132163

6. RoHs Certificate No.: LCGCll110284 (Issued on JuI.10, 2012)

7. For DLC, please check in website: www.designlights.org/search/#/results, search by keyword "Razorlux" for more details.
