Home ProductsLED Stadium Lights

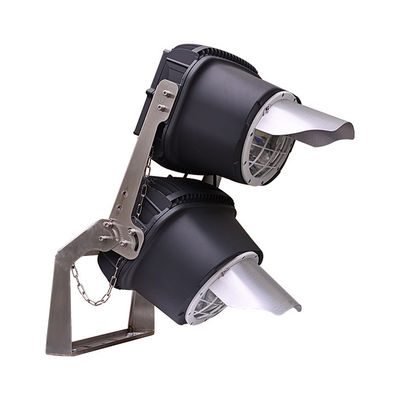

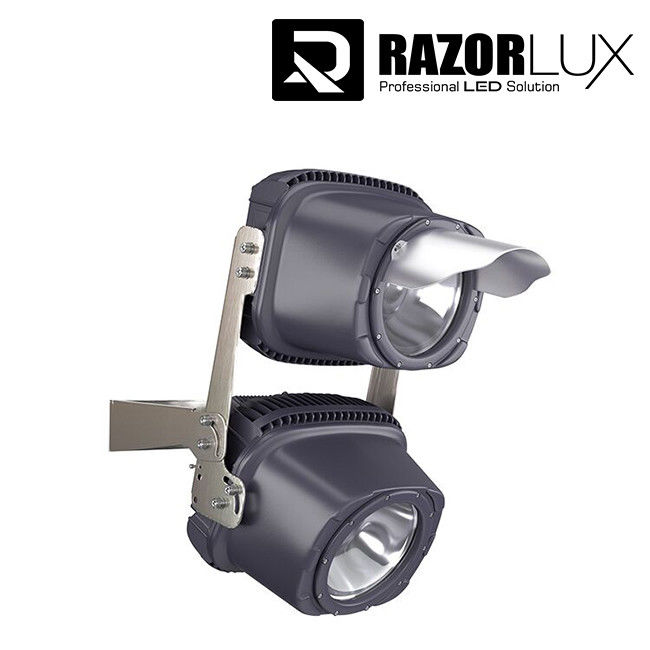

Aluminum Alloy Lamp Body Material and LED Light Source LED Sport Flood Light

Aluminum Alloy Lamp Body Material and LED Light Source LED Sport Flood Light

  • Aluminum Alloy Lamp Body Material and LED Light Source LED Sport Flood Light
  • Aluminum Alloy Lamp Body Material and LED Light Source LED Sport Flood Light
Aluminum Alloy Lamp Body Material and LED Light Source LED Sport Flood Light
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, LVD, RoHS, Saa, UL
Model Number: RGL2-1000P
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: $1,652.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*560mm<br>3.One 20'' Container can accept 250 Units
Contact Now
Detailed Product Description
Color Temperature(CCT): 5000K (Daylight), Cool White Lamp Luminous Efficiency(lm/w): 120, 120
Color Rendering Index(Ra): 80 Support Dimmer: YES
Lighting Solutions Service: DIALux Evo Layout, Agi32 Layout, Auto CAD Layout Lifespan (hours): 50000
Product Weight(kg): 30 Input Voltage(V): 80~315Vac, (347Vac Available On Request)
Beam Angle(°): 15° 20° 30° Lamp Body Material: Aluminum Alloy
IP Rating: IP67 Application: Sports Stadiums
Light Source: LED Lamp Luminous Flux(lm): 120000, 120000lm
Working Temperature(℃): -40 To 60, -40 - 60 Warranty(Year): 5-Year
Product Name: LED Sport Flood Light

Aluminum Alloy Lamp Body Material and LED Light Source LED Sport Flood Light





Main Features





1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 1000W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. TOP chips high efficacy 120lm/w with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index



Aluminum Alloy Lamp Body Material and LED Light Source LED Sport Flood Light 0

Aluminum Alloy Lamp Body Material and LED Light Source LED Sport Flood Light 1



Parameter of Razorlux LED Sport Flood Light:



Model RGL2-1000P
Beam Angle 15° 20° 30°

Stable Flux

(5700K after 1 hour)

120000lm
Dimension (mm) 474*388*982
  LEDs 900W
Power  Driver 100W
Consumption  Total 800W
Replace HID Lamp 2200~2500W
Net Weight 38kg with stainless steel floodlight bracket
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class

IP 65 (Upgradeable to IP 67)

IK Class

IK 10

Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 year
Driver 5 year
Housing 10 year







Lighting Distribution of Razorlux LED Sport Flood Light:



For Different application requirement, Razorlux Genius Series have different types of beam angles options.

at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.

 Aluminum Alloy Lamp Body Material and LED Light Source LED Sport Flood Light 3



Advantages of 500 Watt LED Sport Court Lights

  • Top grade CREE/Samsung led chip
  • Meanwell Driver
  • Marine grade powder coating housing finish, and 316 stainless steel bracket
  • 15, 20, 30, 40, 60, 120, and 140 x 60 multil beam angle option
  • Clear tempered glass lens, and reflector make the classical shape lighting
  • IP67 and IK10 grade
  • Protection grid, visor available for optional
  • Anti-glare frosted lens available

FAQ:

1. Are you a factory or trading company:

We are a factory located in Xi'an China, established in 2006.

2. What is your product range?

Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.

3. How many days of production will the order take?

Normally 7-15 days, depending on the order quanity.

4. How do you ship goods abroad?

For sample, trial order, or small quantities we will suggest shipping by air, for large quantity and bulk order we recommend shipping by sea.

5. Does your product support smart control like sensor, dimming, DALI, etc.

They support all of these features, please tell our sales during your negotiation when you need such features.
