Place of Origin: | Shaanxi, China |
Brand Name: | Razorlux |
Certification: | ce, LVD, Saa, UL |
Model Number: | RGL-30A |
Price: | $110.00 - $180.00/Pieces |
---|---|
Packaging Details: | 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):263*263*155 <br>3.One 20'' Container can accept 250 Units |
Supply Ability: | 5000 Piece/Pieces per Month |
Color Temperature(CCT): | 2000K - 6000K, 2000K - 6000K | Lamp Luminous Efficiency(lm/w): | 120, 120 |
---|---|---|---|
Lighting Solutions Service: | Lighting And Circuitry Design, DIALux Evo Layout | Lifespan (hours): | 50000 |
Input Voltage(V): | 80 ~315Vac | Beam Angle(°): | 60 /120/140x60 |
Working Lifetime(Hour): | 50000 | Application: | Sports Stadiums, Street/stadium/Ship/outdoor Lighting |
Lamp Luminous Flux(lm): | 3600 Lm, 3600 Lm | Working Temperature(℃): | -40C ~ 60C / -40F ~ 140F, -40C ~ 60C / -40F ~ 140F |

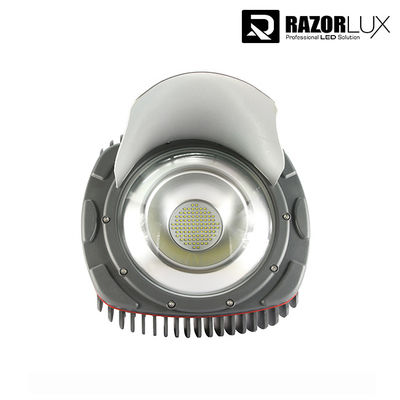

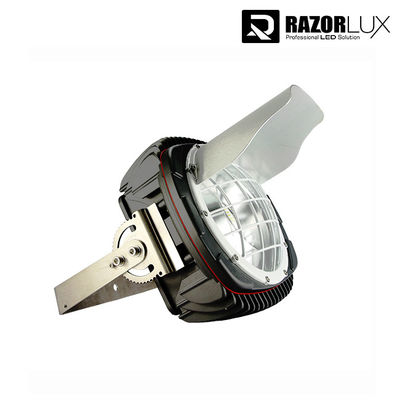

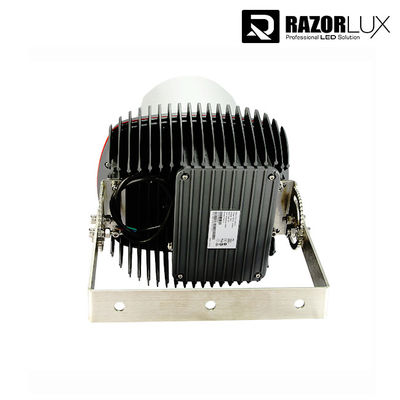

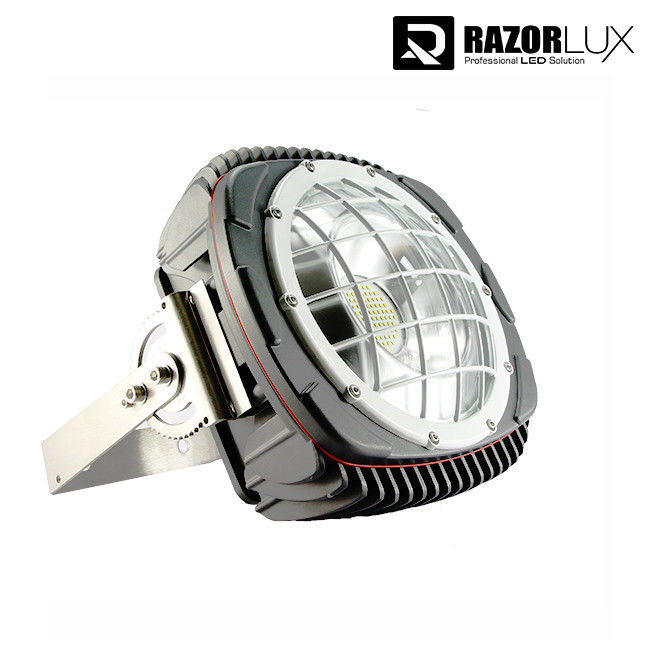

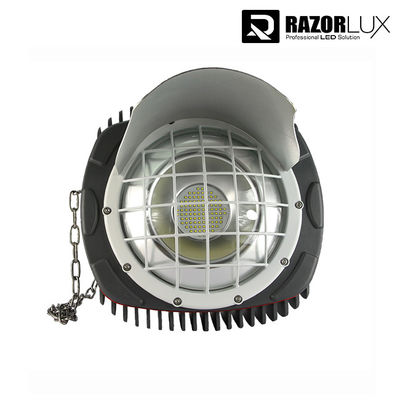

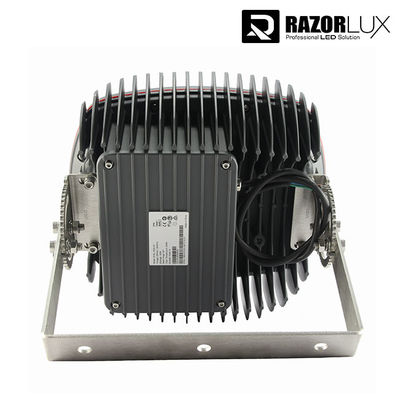

Product Name: | 30w Led Flood Light For Distric | Power: | 30w |
Housiong Material: | Aluminum | Warranty: | 3-5Years |
Model
|
|
RGL-30A
|
|
Beam Angle
|
|
60°/120°/140°x60°
|
|
Stable Flux (5700K after 1 hour)
|
|
3600 lm
|
|
Dimension (mm)
|
|
360x358x187mm
|
|
Power Consumption |
LEDs
|
27W
|
|
|
Driver
|
3W
|
|
|
Total
|
30W
|
|
Replace HID Lamp
|
|
80-100W
|
|
Net Weight
|
|
8kg (17.6lbs)
|
|
Color Temperature
|
|
2000K - 6000K
|
|
Color Rendering
|
|
≥Ra80
|
|
Working Life
|
|
≥50000Hrs
|
|
Housing Material
|
|
Aluminum
|
|
Coating
|
|
Zinc Rich Paint
|
|
IP Class
|
|
IP 65 (Upgradeable to IP 67)
|
|
Insulation Class
|
|
Class I (Upgradeable to Class II)
|
|
Working Temperature
|
|
-40C ~ 60C / -40F ~ 140F
|
|
Working Humidity
|
|
10% ~ 95%
|
|
AC Input
|
|
80 ~ 315Vac, (347Vac available on request)
|
|
DC Input
|
|
80 ~ 400Vdc, (12Vdc, 24Vdc and other input available on request)
|
|
THD
|
|
<10%
|
|
Power Factor
|
|
≥0.98
|
|
Warranty
|
LED Module
|
5 years
|
|
|
Driver
|
5 years
|
|
|
Housing
|
10 years
|
Features & Specifications of 1-10V Dimmable led flood light 400Watt
FAQ:
1. Are you a factory or trading company:
We are a factory located in Xi'an China, established in 2006.
2. What is your product range?
Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.
3. How many days of production will the order take?
Normally 7-15 days, depending on the order quanity.
4. How do you ship goods abroad?
For sample, trial order, or small quantities we will suggest shipping by air, for large quantity and bulk order we recommend shipping by sea.
5. Does your product support smart control like sensor, dimming, DALI, etc.
They support all of these features, please tell our sales during your negotiation when you need such features.
6. How do you deal with failed lights?
During the warranty period, we will send customer free part or lamp after checking the evidence. After warranty, we only charge the component fees, no extra charge for our customer.
