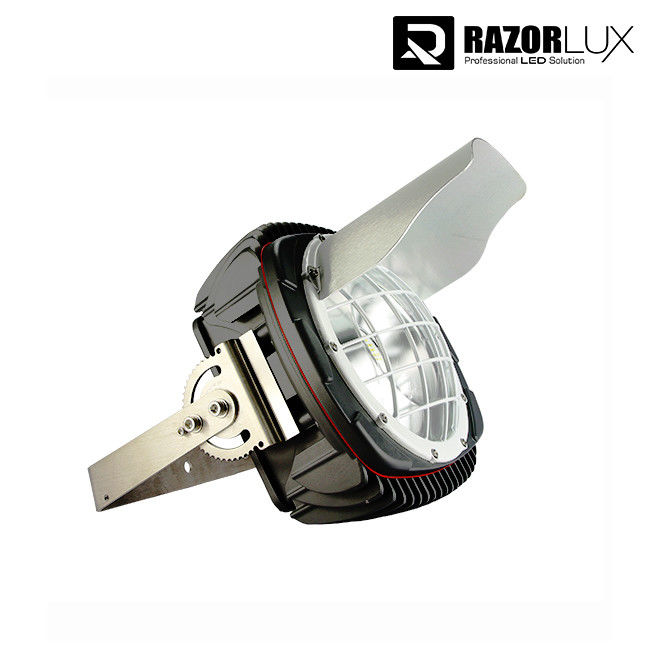

60 120 140x60 Wide Beam angle Stadium field high lumen efficiency led flood light 30w

60 120 140x60 Wide Beam angle Stadium field high lumen efficiency led flood light 30w

  • 60 120 140x60 Wide Beam angle Stadium field high lumen efficiency led flood light 30w
60 120 140x60 Wide Beam angle Stadium field high lumen efficiency led flood light 30w
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, EMC, LVD, Saa, UL
Model Number: RGL-30A
Payment & Shipping Terms:
Price: $110.00 - $180.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):263*263*155 <br>3.One 20'' Container can accept 250 Units
Supply Ability: 5000 Piece/Pieces per Month
Contact Now
All Products
LED Outdoor Flood Light (33)
Marine LED Flood Light (42)
Waterproof LED Flood Light (25)
LED Industrial Flood Light (18)
Dimmable LED Flood Light (22)
LED Stadium Lights (62)
LED Outdoor Sports Lighting (19)
LED Boat Deck Light (11)
LED High Mast Light (17)
LED Crane Light (10)
LED High Bay Lights (28)
LED Explosion Proof Light (28)
Detailed Product Description
Color Temperature(CCT): 2000K - 6000K, 2000K - 6000K Lamp Luminous Efficiency(lm/w): 120, 120
Color Rendering Index(Ra): 80 Lighting Solutions Service: Lighting And Circuitry Design, DIALux Evo Layout, Agi32 Layout
Lifespan (hours): 50000 Product Weight（kg）: 12
Input Voltage(V): 80 ~315Vac Beam Angle(°): 60 /120/140x60
Lamp Body Material: Aluminum Application: Sports Stadiums, Street/stadium/Ship/outdoor Lighting
Lamp Luminous Flux(lm): 3600 Lm, 3600 Lm Working Temperature(℃): -40C ~ 60C / -40F ~ 140F, -40C ~ 60C / -40F ~ 140F
Warranty(Year): 3-5 Year Product Name: High Lumen Led Flood Light 30w


60 120 140x60 Beam angle 120 lm/w system efficacy Stadium field high lumen led flood light 30w


Description of high lumen flood light 30w:

Stadium lighting fixtures play a role in any location, but it is especially important at sporting event locations. When it comes to outdoor stadium lighting, there are a few things to keep in mind. Here are a few suggestions to help you get the most out of your outdoor stadium lighting solutions.

We provide outdoor lighting, LED flood lights, LED light fixtures, light poles, crossarms and sports lighting control systems for baseball fields, football fields, soccer fields and general purpose athletic fields.Our exterior lighting fixtures feature special high output LED bulbs, producing brighter sports field lighting that enhances the safety of the players, the playability of the game and the enjoyment of the spectators.


Model

RGL-30A
Beam Angle

60°/120°/140°x60°
Stable Flux (5700K after 1 hour)

3600 lm
Dimension (mm)

360x358x187mm

Power Consumption
LEDs
27W

Driver
3W

Total
30W
Replace HID Lamp

80-100W
Net Weight

8kg (17.6lbs)
Color Temperature

2000K - 6000K
Color Rendering

≥Ra80
Working Life

≥50000Hrs
Housing Material

Aluminum
Coating

Zinc Rich Paint
IP Class

IP 65 (Upgradeable to IP 67)
Insulation Class

Class I (Upgradeable to Class II)
Working Temperature

-40C ~ 60C / -40F ~ 140F
Working Humidity

10% ~ 95%
AC Input

80 ~ 315Vac, (347Vac available on request)
DC Input

80 ~ 400Vdc, (12Vdc, 24Vdc and other input available on request)
THD

<10%
Power Factor

≥0.98

    Warranty
LED Module
5 years

Driver
5 years

Housing
10 years





60 120 140x60 Wide Beam angle Stadium field high lumen efficiency led flood light 30w 560 120 140x60 Wide Beam angle Stadium field high lumen efficiency led flood light 30w 6

Features & Specifications of 1-10V Dimmable led flood light 400Watt

  • Patented Multi-function design, suitable for all working environments.
  • Rated Power: 400W-1200W
  • Input Voltage: AC90-305, DC127-431
  • Color Temperature: 2700K-6500K
  • Lamp Efficiency: 130LM/W
  • Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
  • CRI: Ra>75
  • IP Grade: IP65/IP67
  • Bracket: Stainless Steel
  • Net Weight: 15KG
  • Warranty: 5 Years

WHY CHOOSE US:

1.For Different application requirement, Razorlux Genius Series have different types of beam angles options.at the moment we have 60° 120° 140° beam angle available.
2.Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to the delivery of products, each item will be checked and tested for several times.
3.For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment to make sure of their long term and stable performances within lifetime.
