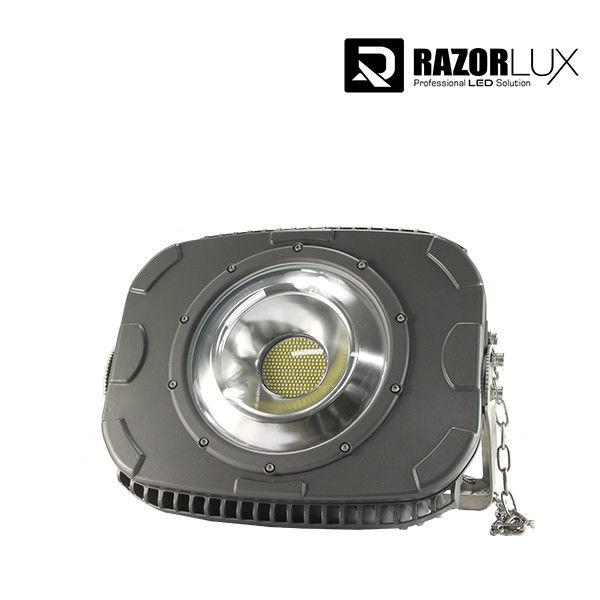

LVD Led Stadium Lights 400W IP67 Led Sports Field Lighting Outdoor Tennis Court

LVD Led Stadium Lights 400W IP67 Led Sports Field Lighting Outdoor Tennis Court

  • LVD Led Stadium Lights 400W IP67 Led Sports Field Lighting Outdoor Tennis Court
LVD Led Stadium Lights 400W IP67 Led Sports Field Lighting Outdoor Tennis Court
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, C-tick, EMC, LVD, RoHS, Saa, UL
Model Number: RGL2-400A
Payment & Shipping Terms:
Price: $767.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units
Contact Now
All Products
LED Outdoor Flood Light (33)
Marine LED Flood Light (42)
Waterproof LED Flood Light (25)
LED Industrial Flood Light (18)
Dimmable LED Flood Light (22)
LED Stadium Lights (62)
LED Outdoor Sports Lighting (19)
LED Boat Deck Light (11)
LED High Mast Light (17)
LED Crane Light (10)
LED High Bay Lights (28)
LED Explosion Proof Light (28)
Detailed Product Description
Color Temperature(CCT): 6000K (Daylight Alert), Cool White Lamp Luminous Efficiency(lm/w): 130, 130
Lighting Solutions Service: Lighting And Circuitry Design, DIALux Evo Layout, Agi32 Layout Working Time (hours): 50000
Product Weight（kg）: 15 Input Voltage(V): 80~315Vac, (347Vac Available On Request)
Beam Angle(°): 40° 60° 120° 140° Lamp Body Material: Aluminum Alloy
IP Rating: IP67 Application: Sports Stadiums
Light Source: LED Lamp Luminous Flux(lm): 52000lm, 52000lm
Working Temperature(℃): -40C ~ 60C / -40F ~ 140F, -40 - 60 Warranty(Year): 5-Year
Product Name: Outdoor Tennis Court Floodlight Housiong Material: Aluminum
High Light:

LVD Led Stadium Lights

,

400W Led Stadium Lights

,

IP67 led sports field lighting


Waterproof High Temperature Resistant 400W Sports Stadium outdoor tennis court floodlight


Description of LED stadium light:

The stadium lighting market was valued at US$ 465.7 Mn in 2017 and expected to grow at a compounded annual growth rate (CAGR) of 8.4% during the forecast period from 2018 to 2026.

Replacement of traditional stadium lights with LED stadium light is one of the most common factors complimenting the growth of the market.

Stadiums across the world in an urge to switch to energy efficient solution are increasingly adopting LED lights.


Model

RGL2-400A
Beam Angle

40° 60° 120° 140°
Stable Flux (5700K after 1 hour)

52000lm
Dimension (mm)

468*388*367

Power Consumption
LEDs
360W

Driver
40W

Total
400W
Replace HID Lamp

800~1000W
Net Weight

15kg (33lbs)
Color Temperature

2700-6500K
Color Rendering

≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life

≥50000Hrs
Housing Material

Aluminum & Powder coating
Power Supply

Meanwell
IP Class

IP 65 (Upgradeable to IP 67)
IK Class

IK 10
Insulation Class

Class I
Working Temperature

-40C ~ 60C / -40F ~ 140F
Working Humidity

10% ~ 95%
AC Input

110-480Vac input voltage without additional adapter
DC Input

100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD

<10%
Power Factor

≥0.98

    Warranty
LED Module
5 years

Driver
5 years

Housing
10 years

Features:

✦ 80% lumen maintenance over 50,000hours.
✦ 110-480Vac input voltage without additional adapter.
✦ 0-10VDC, DALI and wireless control available.
✦ Photocell & motion sensor system available.
✦ Built-in surge protection & thermal protection.
✦ Mercury free, No UV or IR.
✦ High uniformity & color rendering index.



LVD Led Stadium Lights 400W IP67 Led Sports Field Lighting Outdoor Tennis Court 0LVD Led Stadium Lights 400W IP67 Led Sports Field Lighting Outdoor Tennis Court 1

Advantages of 500 Watt LED Sport Court Lights

  • Top grade CREE/Samsung led chip
  • Meanwell Driver
  • Marine grade powder coating housing finish, and 316 stainless steel bracket
  • 15, 20, 30, 40, 60, 120, and 140 x 60 multil beam angle option
  • Clear tempered glass lens, and reflector make the classical shape lighting
  • IP67 and IK10 grade
  • Protection grid, visor available for optional
  • Anti-glare frosted lens available
  • Safety chains
  • UL, DLC, CE, ROHS, EAC, SAA, C-Tick certified.
