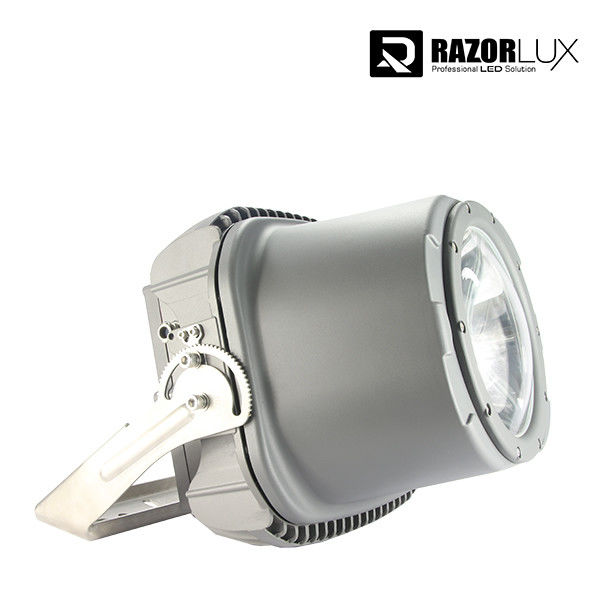

Aluminum IK10 Led Stadium Lights 500W 60000lm Led Sports Ground Floodlights

Aluminum IK10 Led Stadium Lights 500W 60000lm Led Sports Ground Floodlights

  • Aluminum IK10 Led Stadium Lights 500W 60000lm Led Sports Ground Floodlights
Aluminum IK10 Led Stadium Lights 500W 60000lm Led Sports Ground Floodlights
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, C-tick, EMC, LVD, RoHS, Saa, UL
Model Number: RGL2-500P
Payment & Shipping Terms:
Price: $10.00 - $837.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*560mm<br>3.One 20'' Container can accept 250 Units
Supply Ability: 5000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Color Temperature(CCT): 6000, Cool White Lamp Luminous Efficiency(lm/w): 120, 120
Support Dimmer: Yes Lighting Solutions Service: DIALux Evo Layout, Agi32 Layout, Auto CAD Layout
Lifespan (hours): 50000 Product Weight(kg): 30
Input Voltage(V): 80~315Vac, (347Vac Available On Request) Beam Angle(°): 15° 20° 30°
Working Lifetime(Hour): 50000 Lamp Body Material: Aluminum Alloy
IP Rating: IP67 Application: Sports Stadiums
Lamp Luminous Flux(lm): 60000lm, 60000lm Working Temperature(℃): -40-60, -40 - 60
Warranty(Year): 5-Year IP Class: IP 65 (Upgradeable To IP 67)
IK Rate: IK10
High Light:

IK10 Led Stadium Lights

,

500W Led Stadium Lights

,

60000lm led sports ground floodlights

Aluminum housing Flood Lights Item Type and LED Light Source Levels 500W Stadium LED Lights

Description of Portable Stadium Lights:

Furthermore, in coming years, the adoption of IoT in the field of portable stadium lights expected to witness a growth on account of the numerous benefit it offers pertaining to improvements in a stadium's infrastructural capabilities.

For instance, recently, IoT-connected portable stadium lights was installed in the training ground of Sparta '25, Netherlands.

Europe owing to the presence of a large number of sports stadiums and its openness to embrace the latest of stadium lighting technologies are important factors that have enabled it to become the largest market for portable stadium lights in terms of value.

However, in the coming years, Asia Pacific and The Middle East & Africa expected to emerge as important markets for stadium lighting and would remain key markets for future investments

Main Features



1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 500W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. Top chips high efficacy 120lm/w with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index

 Aluminum IK10 Led Stadium Lights 500W 60000lm Led Sports Ground Floodlights 0

Aluminum IK10 Led Stadium Lights 500W 60000lm Led Sports Ground Floodlights 2

Parameter of Razorlux Stadium LED Lights:



Model RGL2-500P
Beam Angle 15° 20° 30°

Stable Flux

(5700K after 1 hour)

60000lm
Dimension (mm) 466*388*487
  LEDs 450W
Power  Driver 50W
Consumption  Total 500W
Replace HID Lamp 1000~2000W
Net Weight 19kg with stainless steel floodlight bracket
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class

IP 65 (Upgradeable to IP 67)

IK Class

IK 10

Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 years
Driver 5 years
Housing 5 years



For Different application requirement, Razorlux Genius Series have different types of beam angles options.

at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.

 Aluminum IK10 Led Stadium Lights 500W 60000lm Led Sports Ground Floodlights 4



Advantages of 500 Watt LED Sport Court Lights

  • Top grade CREE/Samsung led chip
  • Meanwell Driver
  • Marine grade powder coating housing finish, and 316 stainless steel bracket
  • 15, 20, 30, 40, 60, 120, and 140 x 60 multil beam angle option
  • Clear tempered glass lens, and reflector make the classical shape lighting
  • IP67 and IK10 grade
  • Protection grid, visor available for optional
  • Anti-glare frosted lens available
  • Safety chains
  • UL, DLC, CE, ROHS, EAC, SAA, C-Tick certified.

FAQ:

1. Are you a factory or trading company:

We are a factory located in Xi'an China, established in 2006.

2. What is your product range?

Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.

3. How many days of production will the order take?

Normally 7-15 days, depending on the order quanity.

4. How do you ship goods abroad?

For sample, trial order, or small quantities we will suggest shipping by air, for large quantity and bulk order we recommend shipping by sea.

5. Does your product support smart control like sensor, dimming, DALI, etc.

They support all of these features, please tell our sales during your negotiation when you need such features.

6. How do you deal with failed lights?

During the warranty period, we will send customer free part or lamp after checking the evidence. After warranty, we only charge the component fees, no extra charge for our customer.
