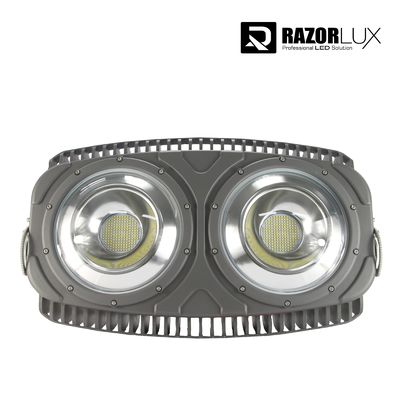

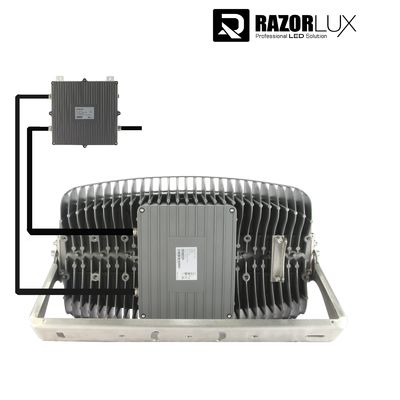

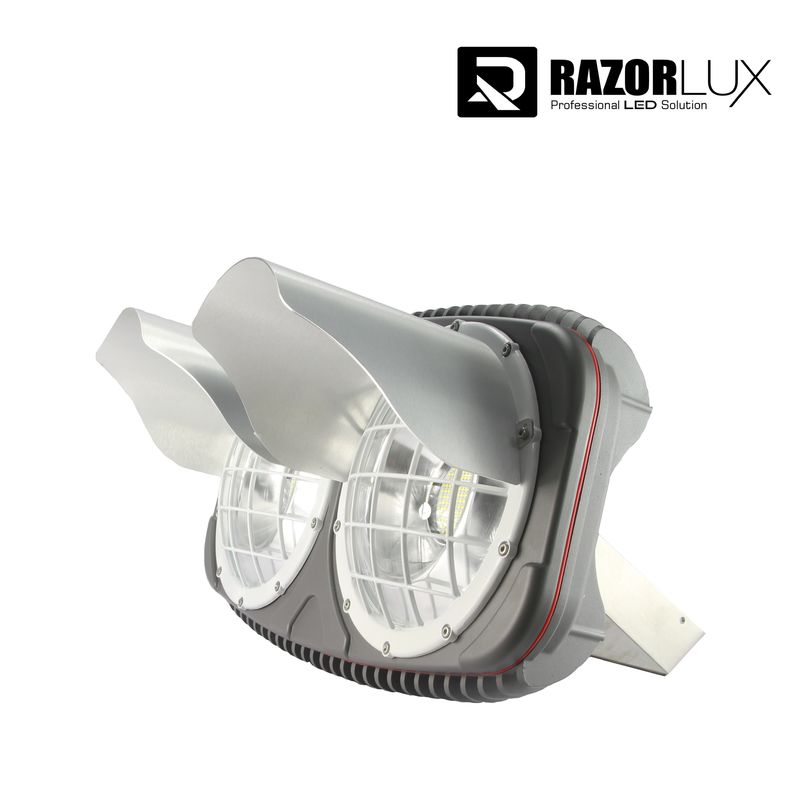

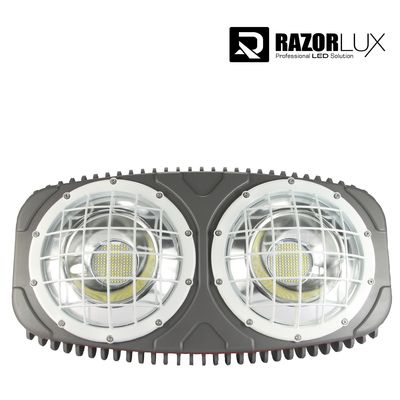

Aluminum Alloy 347Vac Waterproof Led Flood Light SS316 130000lm

Aluminum Alloy 347Vac Waterproof Led Flood Light SS316 130000lm

  • Aluminum Alloy 347Vac Waterproof Led Flood Light SS316 130000lm
  • Aluminum Alloy 347Vac Waterproof Led Flood Light SS316 130000lm
  • Aluminum Alloy 347Vac Waterproof Led Flood Light SS316 130000lm
  • Aluminum Alloy 347Vac Waterproof Led Flood Light SS316 130000lm
Aluminum Alloy 347Vac Waterproof Led Flood Light SS316 130000lm
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, LVD, RoHS, Saa, UL
Model Number: RGL2-1000A
Payment & Shipping Terms:
Price: $1,612.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units
Contact Now
Detailed Product Description
Color Temperature(CCT): 6000K (Daylight Alert), Cool White Lamp Luminous Efficiency(lm/w): 130LM/W
Support Dimmer: YES Lighting Solutions Service: DIALux Evo Layout, Agi32 Layout, Auto CAD Layout
Lifespan (hours): 50000 Input Voltage(V): 80~305Vac,180-528vac
CRI (Ra>): 75 Beam Angle(°): 40° 60° 120° 140°
Working Lifetime(Hour): 50000 Lamp Body Material: Aluminum Alloy
Light Source: LED Lamp Luminous Flux(lm): 130000lm
Working Temperature(℃): -40 To 60, -40 - 60 IP Class: IP 65 (Upgradeable To IP 67)
High Light:

347Vac Waterproof Led Flood Light

,

130000lm Waterproof Led Flood Light

,

SS316 waterproof led street light

Best Selling Waterproof IP67 Aluminum Alloy Stadium Light 1000W

Features:



1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 1000W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. TOP chips high efficacy 130lm/w±7% with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index


Parameters:



Model RGL2-1000A
Beam Angle 40° 60° 120° 140°

Stable Flux

(5700K after 1 hour)

130000lm
Dimension (mm) 474*388*982
  LEDs 900W
Power  Driver 100W
Consumption  Total 1000W
Replace HID Lamp 2200~2500W
Net Weight 30kg (66lbs)
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class

IP 65 (Upgradeable to IP 67)

IK Class

IK 10

Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 years
Driver 5 years
Housing 10 years



For Different application requirement, Razorlux Genius Series have different types of beam angles options.

at the moment we have 40° 60° 120° 140° beam angle available.

 Aluminum Alloy 347Vac Waterproof Led Flood Light SS316 130000lm 0



Application:



Outdoor/Indoor, Stadium, Airport, Marine, Ship, Dock, Trawer, Harour, Mining, Industrial lighting, etc.



Marine: Tugboats, towboats, offshore service vessels, offshore wind platforms and service vessels, ferries, barges, fishing vessels, patrol boats, shipyard cranes, offshore cranes, dredging equipment, shipyard cranes.



Aluminum Alloy 347Vac Waterproof Led Flood Light SS316 130000lm 2



FAQ:



Q1. Are you a factory?
YES, our factory in XI'AN established in 2010 with 50 workers and 10 engineers.

Q2. : Color temperature of the outdoor led high mast light?
3000/3500/4000/4500/5000/5700/6000/6500K

Q3: Certificates for the outdoor led high mast light?
CE(EMC + LVD) SAA ROHS UL DLC

Q4: How long is the lifetime for the outdoor led high mast light?
50,000HOURS

Q5: Lumens of the outdoor led high mast light?
100-130 LM/W Differs with different series

Q6: Warranty for the outdoor led high mast light?
5 years warranty depends on customers requests

Q7: What lamps can be replaced with the outdoor led high mast light?
Halogen,HPSL & compact fluorescent lamps.

Q8: Any intelligent options for the outdoor led high mast light?
0-10V PWM DALI PLC light control

Q9: Any OEM accessories can be provided when the standard one does not work for installation?
Yes, OEM/ODM support for the different application request.

Q10: Can I have our LOGO on the products and packages?
A: Yes.

Q11: How to deal with the faulty?
Our products are produced in a strict quality control system and the defective rate is less than 0.2%.
If a Quality problem happens, Return/Refund policy according to warranty agreement.
