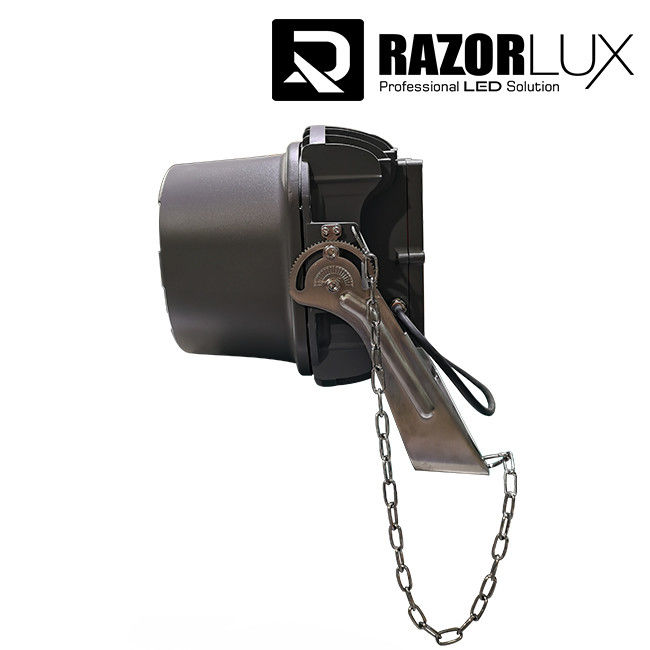

Sport Court SAA Approved Led Stadium Lights Floodlights 500W

Sport Court SAA Approved Led Stadium Lights Floodlights 500W

  • Sport Court SAA Approved Led Stadium Lights Floodlights 500W
Sport Court SAA Approved Led Stadium Lights Floodlights 500W
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, LVD, RoHS, Saa, UL
Model Number: RGL2-500P
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: $837.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*560mm<br>3.One 20'' Container can accept 250 Units
Contact Now
Detailed Product Description
Color Rendering Index(Ra): 80 Lighting Solutions Service: DIALux Evo Layout, Agi32 Layout, Auto CAD Layout
Working Time (hours): 50000 Product Weight(kg): 15
Input Voltage(V): 80~315Vac, (347Vac Available On Request) Beam Angle(°): 15° 20° 30°
Lamp Body Material: Aluminum Alloy IP Rating: IP67
Application: Sports Stadiums Lamp Luminous Flux(lm): 60000lm, 60000lm
Working Temperature(℃): -40-60, -40 - 60 Warranty: 5 Years
Working Life: 50000 IP Class: IP 65 (Upgradeable To IP 67)
High Light:

SAA Approved Led Stadium Lights

,

500W Led Stadium Lights

,

Sport Court led stadium floodlights

CE SAA Approved High Power LED 500W Flood Light for Sport Court Lighting

Description of Stadium Lights Fixtures:

Sports is considered to be any physical activity that demands a particular set of skills and teams to participate and compete against each other for the sole reason of entertainment. For these sports to take place there need to be dedicated venues which are called stadiums that should accommodate the participants and the fans.

They can take place during any time of the day and lighting plays an important part in making sports success. Stadium lights fixtures are, therefore, the incorporation of artificial lighting in the stadiums to help mimic the natural lighting during the day to ensure the continuity of the sports.



Main Features of Sport Court Lighting
1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 500W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. Top chips high efficacy 120lm/w with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index



Advantages of 500 Watt LED Sport Court Lights

  • Top grade CREE/Samsung led chip
  • Meanwell Driver
  • Marine grade powder coating housing finish, and 316 stainless steel bracket
  • 15, 20, 30, 40, 60, 120, and 140 x 60 multil beam angle option
  • Clear tempered glass lens, and reflector make the classical shape lighting
  • IP67 and IK10 grade
  • Protection grid, visor available for optional
  • Anti-glare frosted lens available
  • Safety chains
  • UL, DLC, CE, ROHS, EAC, SAA, C-Tick certified.



Parameter of Razorlux Sport Court Lighting:



Model RGL2-500P
Beam Angle 15° 20° 30°

Stable Flux

(5700K after 1 hour)

60000lm
Dimension (mm) 466*388*487
  LEDs 450W
Power  Driver 50W
Consumption  Total 500W
Replace HID Lamp 1000~2000W
Net Weight 19kg with stainless steel floodlight bracket
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class

IP 65 (Upgradeable to IP 67)

IK Class

IK 10

Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 years
Driver 5 years
Housing 5 years



Sport Court SAA Approved Led Stadium Lights Floodlights 500W 0Sport Court SAA Approved Led Stadium Lights Floodlights 500W 1

FAQ:

1. Are you a factory or trading company:

We are a factory located in Xi'an China, established in 2006.





2. What is your product range?

Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.





3. How many days of production will the order take?

Normally 7-15 days, depending on the order quanity.





4. How do you ship goods abroad?

For sample, trial order, or small quantities we will suggest shipping by air, for large quantity and bulk order we recommend shipping by sea.





5. Does your product support smart control like sensor, dimming, DALI, etc.

They support all of these features, please tell our sales during your negotiation when you need such features.





6. How do you deal with failed lights?

During the warranty period, we will send customer free part or lamp after checking the evidence. After warranty, we only charge the component fees, no extra charge for our customer.
