78000lm 5700K Led Outdoor Sports Lighting 600W Flood Lights For Sporting Grounds

78000lm 5700K Led Outdoor Sports Lighting 600W Flood Lights For Sporting Grounds

  • 78000lm  5700K Led Outdoor Sports Lighting 600W Flood Lights For Sporting Grounds
78000lm  5700K Led Outdoor Sports Lighting 600W Flood Lights For Sporting Grounds
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, LVD, RoHS, Saa, UL
Model Number: RGL2-400A
Payment & Shipping Terms:
Price: $767.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units
Contact Now
Detailed Product Description
Color Temperature(CCT): 6000K (Daylight Alert) Lamp Luminous Efficiency(lm/w): 130
Color Rendering Index(Ra): 80 Lighting Solutions Service: DIALux Evo Layout, Agi32 Layout, Auto CAD Layout
Working Time (hours): 50000 Product Weight(kg): 15
Input Voltage(V): 80~315Vac, (347Vac Available On Request) Beam Angle(°): 40° 60° 120° 140°
Working Lifetime(Hour): 50000 Lamp Body Material: Aluminum Alloy
IP Rating: IP67 Application: Sports Stadiums
Lamp Luminous Flux(lm): 78000 Working Temperature(℃): -40 To 60
Warranty(Year): 5-Year Product Name: Stadium Lighting LED
LED Driver: Meanwell Housing Material: Die-cast Aluminum Alloy
Finish: Powder Coating Bracket: Stainless Steel
IK Rate: IK10 Housiong Material: Aluminum
High Light:

5700K Led Outdoor Sports Lighting

,

78000lm Led Outdoor Sports Lighting

,

600W flood lights for sporting grounds

Waterproof IP67 5700K SMD 400W Stadium Lighting LED

Main Features



1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 400W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. Top chips high efficacy 130lm/w±7% with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. UL cUL DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index

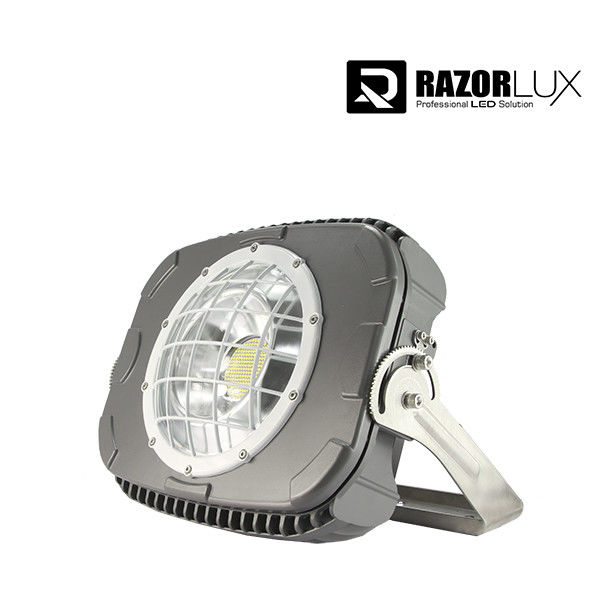

Photos of Stadium Lighting LED :
















78000lm  5700K Led Outdoor Sports Lighting 600W Flood Lights For Sporting Grounds 3

78000lm  5700K Led Outdoor Sports Lighting 600W Flood Lights For Sporting Grounds 5



Parameter of Razorlux Stadium Lighting LED:



Model RGL2-400A
Beam Angle 40° 60° 120° 140°

Stable Flux

(5700K after 1 hour)

52000lm
Dimension (mm) 468*388*367
  LEDs 360W
Power  Driver 40W
Consumption  Total 400W
Replace HID Lamp 800~1000W
Net Weight 17.9kg with stainless steel floodlight bracket
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class

IP 65 (Upgradeable to IP 67)

IK Class

IK 10

Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 year
Driver 5 year
Housing 10 year



Features & Specifications of 1-10V Dimmable led flood light 400Watt

  • Patented Multi-function design, suitable for all working environments.
  • Rated Power: 400W-1200W
  • Input Voltage: AC90-305, DC127-431
  • Color Temperature: 2700K-6500K
  • Lamp Efficiency: 130LM/W
  • Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
  • CRI: Ra>75
  • IP Grade: IP65/IP67
  • Bracket: Stainless Steel
  • Net Weight: 15KG
  • Warranty: 5 Years

FAQ:

1. Are you a factory or trading company:

We are a factory located in Xi'an China, established in 2006.

2. What is your product range?

Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.

3. How many days of production will the order take?

Normally 7-15 days, depending on the order quanity.

4. How do you ship goods abroad?

For sample, trial order, or small quantities we will suggest shipping by air, for large quantity and bulk order we recommend shipping by sea.

5. Does your product support smart control like sensor, dimming, DALI, etc.

They support all of these features, please tell our sales during your negotiation when you need such features.

6. How do you deal with failed lights?

During the warranty period, we will send customer free part or lamp after checking the evidence. After warranty, we only charge the component fees, no extra charge for our customer.
