EMC Led Outdoor Sports Lighting Football Floodlights 130lm/W Powder Coating

EMC Led Outdoor Sports Lighting Football Floodlights 130lm/W Powder Coating

  • EMC Led Outdoor Sports Lighting Football Floodlights 130lm/W Powder Coating
EMC Led Outdoor Sports Lighting Football Floodlights 130lm/W Powder Coating
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, C-tick, EMC, LVD, RoHS, Saa, UL
Model Number: RGL2-1000A
Payment & Shipping Terms:
Price: $1,600.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units
Contact Now
Detailed Product Description
Color Temperature(CCT): 6000K (Daylight Alert), 2700K-6500K Lamp Luminous Efficiency(lm/w): 130
Color Rendering Index(Ra): 80 Lighting Solutions Service: DIALux Evo Layout, Agi32 Layout, Auto CAD Layout
Working Time (hours): 50000 Product Weight(kg): 30
Input Voltage(V): 80~315Vac, (347Vac Available On Request) Beam Angle(°): 40° 60° 120° 140°
Lamp Body Material: Aluminum Alloy IP Rating: IP67
Application: Sports Stadiums Lamp Luminous Flux(lm): 130000
Working Temperature(℃): -40 To 60, -40 - 60 Warranty(Year): 5-Year
LED Chip: Samsung LED Driver: Meanwell
Bracket Material: Stainless Steel Housing Finish: Powder Coating
IK Class: IK10
High Light:

EMC Led Outdoor Sports Lighting

,

130lm/w Led Outdoor Sports Lighting

,

2700K led football floodlights

2700K 6500K Waterproof IP67 1000W Stadium Lights

1000w stadium lights can be described as a floodlight tower designed to illuminate large spaces. In this case, the bulbs in the floodlight emit LED light, which is bright, focused, and covers a large area depending on the height of the tower. The towers can be permanently fixed to a certain spot, or mobile. Light towers are powered in different ways, some of which are covered below:

A floodlight is an illuminating fixture that is found at the top of a mobile light tower. Floodlights are usually composed of several large light bulbs that emit intense light beams outwards. The type of light technology used in the bulbs is different for every floodlight, and popular ones include LED lighting, Compact Fluorescent Light (CFL), and halogen lighting. The most preferred lights today are LED ones because of several reasons.

Main Features
1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 1000W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. Top chips high efficacy 130lm/w±7% with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. UL cUL DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index

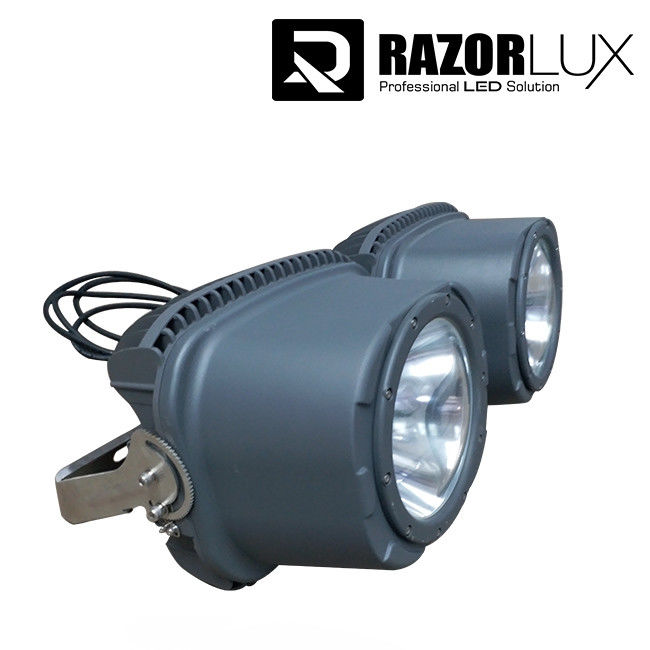

Photos of Stadium Lights:



 EMC Led Outdoor Sports Lighting Football Floodlights 130lm/W Powder Coating 0

EMC Led Outdoor Sports Lighting Football Floodlights 130lm/W Powder Coating 2



Parameter of Razorlux Stadium Lights:



Model RGL2-1000A
Beam Angle 40° 60° 120° 140°

Stable Flux

(5700K after 1 hour)

130000lm
Dimension (mm) 474*388*982
  LEDs 900W
Power  Driver 100W
Consumption  Total 1000W
Replace HID Lamp 2200~2500W
Net Weight 30kg (66lbs)
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class

IP 65 (Upgradeable to IP 67)

IK Class

IK 10

Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 years
Driver 5 years
Housing 10 years





Lighting Distribution of Razorlux Stadium Lights:



For Different application requirement, Razorlux Genius Series have different types of beam angles options.

at the moment we have 40° 60° 120° 140° beam angle available.

 EMC Led Outdoor Sports Lighting Football Floodlights 130lm/W Powder Coating 4

Advantages of 500 Watt LED Sport Court Lights

  • Top grade CREE/Samsung led chip
  • Meanwell Driver
  • Marine grade powder coating housing finish, and 316 stainless steel bracket
  • 15, 20, 30, 40, 60, 120, and 140 x 60 multil beam angle option
  • Clear tempered glass lens, and reflector make the classical shape lighting
  • IP67 and IK10 grade
  • Protection grid, visor available for optional
  • Anti-glare frosted lens available

FAQ:

1. Are you a factory or trading company:

We are a factory located in Xi'an China, established in 2006.

2. What is your product range?

Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.

3. How many days of production will the order take?

Normally 7-15 days, depending on the order quanity.

4. How do you ship goods abroad?

For sample, trial order, or small quantities we will suggest shipping by air, for large quantity and bulk order we recommend shipping by sea.

5. Does your product support smart control like sensor, dimming, DALI, etc.

They support all of these features, please tell our sales during your negotiation when you need such features.

6. How do you deal with failed lights?

During the warranty period, we will send customer free part or lamp after checking the evidence. After warranty, we only charge the component fees, no extra charge for our customer.
