High Power IP67 Outdoor LED Stadium Lights 1200W Softball Field Lighting
Description of Sports Hall Lighting:
We have been designing, manufacturing and installing sports hall lighting systems throughout the world for over 10 years. From outdoor LED sports lighting to retractable floodlighting systems. We offer a high standard of service and reliability at affordable prices. Specialists in retractable lighting and LED sports floodlighting we provide cutting edge technology to suit all your sports lighting requirements.
Main Features
1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 1200W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. TOP chips high efficacy 120lm/w with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index

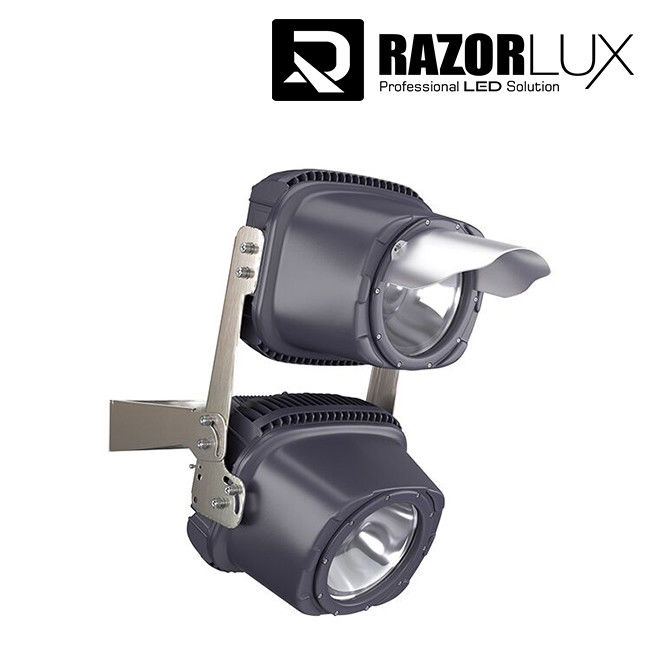

Photos of softball field lighting:
Parameter of Razorlux softball field lighting:
Model
RGL2-1200P
Beam Angle
15° 20° 30°
Stable Flux
(5700K after 1 hour)
144000lm
Dimension (mm)
474*388*982
LEDs
1080W
Power
Driver
120W
Consumption
Total
1200W
Replace HID Lamp
2500~3000W
Net Weight
38kg with stainless steel floodlight bracket
Color Temperature
2700-6500K
Color Rendering
≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life
≥50000Hrs
Housing Material
Aluminum & Powder coating
Power Supply
Meanwell
IP Class
IP 65 (Upgradeable to IP 67)
IK Class
IK 10
Insulation Class
Class I
Working Temperature
-40C ~ 60C / -40F ~ 140F
Working Humidity
10% ~ 95%
AC Input
110-480Vac input voltage without additional adapter
DC Input
100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD
<10%
Power Factor
≥0.98
Warranty
LED Module
5 year
Driver
5 year
Housing
10 year
Lighting Distribution of Razorlux softball field lighting:
For Different application requirement, Razorlux Genius Series have different types of beam angles options.
at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.
15, 20, 30, 40, 60, 120, and 140 x 60 multil beam angle option
Clear tempered glass lens, and reflector make the classical shape lighting
IP67 and IK10 grade
Protection grid, visor available for optional
Anti-glare frosted lens available
FAQ:
1. Are you a factory or trading company:
We are a factory located in Xi'an China, established in 2006.
2. What is your product range?
Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.
3. How many days of production will the order take?
Normally 7-15 days, depending on the order quanity.
4. How do you ship goods abroad?
For sample, trial order, or small quantities we will suggest shipping by air, for large quantity and bulk order we recommend shipping by sea.
5. Does your product support smart control like sensor, dimming, DALI, etc.
They support all of these features, please tell our sales during your negotiation when you need such features.
6. How do you deal with failed lights?
During the warranty period, we will send customer free part or lamp after checking the evidence. After warranty, we only charge the component fees, no extra charge for our customer.
