Place of Origin: | Shaanxi, China |
Brand Name: | Razorlux |
Certification: | ce, EMC, LVD, RoHS, Saa |
Model Number: | RGL2-1400A |
Price: | $1,400.00 - $1,580.00/Pieces |
---|---|
Packaging Details: | 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units |
Supply Ability: | 5000 Piece/Pieces per Month |
Color Temperature(CCT): | 2700-6500K | Lamp Luminous Efficiency(lm/w): | 130, 130 |
---|---|---|---|
Lighting Solutions Service: | Lighting And Circuitry Design, DIALux Evo Layout, Agi32 Layout | Working Time (hours): | 50000 |
Product Weight(kg): | 30 | Input Voltage(V): | 80~315Vac, (347Vac Available On Request) |
Beam Angle(°): | 40° 60° 120° 140°, 40° 60° 120° 140° | Working Lifetime(Hour): | 50000 |
Lamp Body Material: | Aluminum & Powder Coating | Application: | Sports Stadiums |
Lamp Luminous Flux(lm): | 182000lm, 182000lm | Working Temperature(℃): | -40C~60C/40F~140F, -40C~60C/40F~140F |

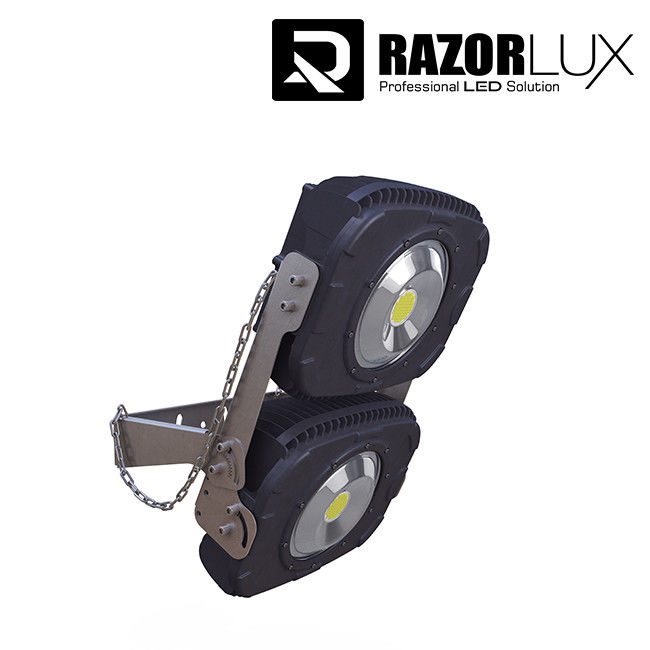

Warranty(Year): | 5-Year | Product Name: | 1400w Professional Led Flood Light Outdoor |
Color Temperature: | 2700-6500K | Housiong Material: | Aluminum & Powder Coating |
IP Class: | IP 67 | Color Rendering: | ≥Ra75 |
High Light: | 182000lm led sports ground floodlights,1400w led sports ground floodlights,IP67 high lumen outdoor led flood light |
The baseball lights of the baseball field is different from the lighting requirements of other fields. The area of the baseball field is about 1.6 times that of a football field. The shape of the baseball field is fan-shaped. The average illuminance in the external field is about 50%, so the uniformity of the external field illuminance is a difficult point, that is, the illuminance at the interface between the internal field and the external field must be considered.
Lighting should be provided to the athletes and spectators who play the baseball game in a place where the glare phenomenon can be minimized.
The layout of the baseball field lighting is divided into infield and outfield, and the uniformity and illuminance are designed to be in proper condition.
Model
|
|
RGL2-1400A
|
|
Beam Angle
|
|
40° 60° 120° 140°
|
|
Stable Flux (5700K after 1 hour)
|
|
182000lm
|
|
Dimension (mm)
|
|
474*388*982
|
|
Power Consumption |
LEDs
|
1260W
|
|
|
Driver
|
140W
|
|
|
Total
|
1400W
|
|
Replace HID Lamp
|
|
3000~3500W
|
|
Net Weight
|
|
30kg (66lbs)
|
|
Color Temperature
|
|
2700-6500K
|
|
Color Rendering
|
|
≥Ra75
|
|
Working Life
|
|
≥50000Hrs
|
|
Housing Material
|
|
Aluminum & Powder coating
|
|
Power Supply
|
|
Meanwell
|
|
IP Class
|
|
IP 67
|
|
Working Temperature
|
|
-40C ~ 60C / -40F ~ 140F
|
|
AC Input
|
|
80~315Vac, (347Vac available on request)
|
|
Power Factor
|
|
≥0.98
|
|
Warranty
|
|
5 Years
|
Features & Specifications of 1-10V Dimmable led flood light 400Watt
Advantages of 500 Watt LED Sport Court Lights
FAQ:
1. Are you a factory or trading company:
We are a factory located in Xi'an China, established in 2006.
2. What is your product range?
Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.
3. How many days of production will the order take?
Normally 7-15 days, depending on the order quanity.
4. How do you ship goods abroad?
For sample, trial order, or small quantities we will suggest shipping by air, for large quantity and bulk order we recommend shipping by sea.
5. Does your product support smart control like sensor, dimming, DALI, etc.
They support all of these features, please tell our sales during your negotiation when you need such features.
6. How do you deal with failed lights?
During the warranty period, we will send customer free part or lamp after checking the evidence. After warranty, we only charge the component fees, no extra charge for our customer.
