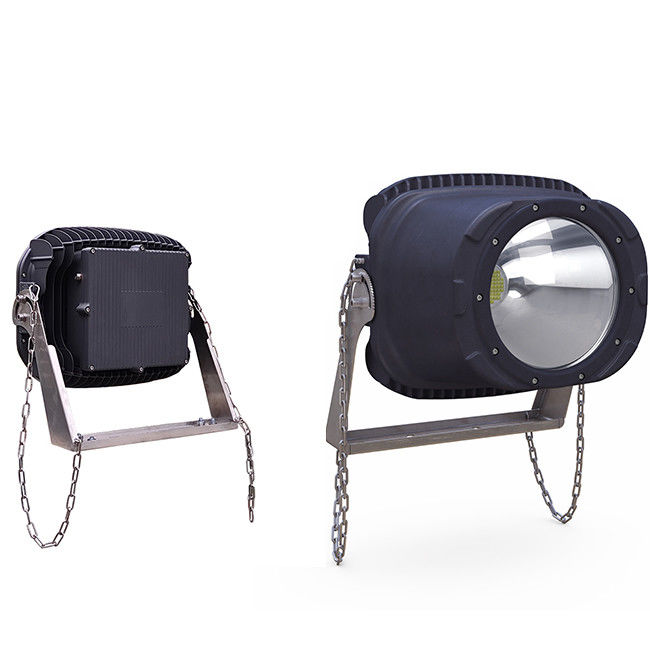

48000lm High Mast Street Light 400W IP67 Led Flood Light For Football Field

48000lm High Mast Street Light 400W IP67 Led Flood Light For Football Field

  • 48000lm High Mast Street Light 400W IP67 Led Flood Light For Football Field
48000lm High Mast Street Light 400W IP67 Led Flood Light For Football Field
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, LVD, RoHS, Saa
Model Number: RGL2-400P
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: $783.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*560mm<br>3.One 20'' Container can accept 250 Units
Contact Now
Detailed Product Description
Support Dimmer: YES Product Weight(kg): 15
Product Name: Super Bright IP67 Waterproof 48000lm 400W High Mast LED Flood Light Housing Material: Die-cast Aluminum Alloy
Paint: Powder Coating Bracket Material: Stainless Steel
Power Facor: ≥0.98 THD: ≤10%
Warranty: 5 Years IK Rate: IK10
High Light:

48000lm high mast street light

,

400W high mast street light

,

IP67 led flood light for football field

Super Bright IP67 Waterproof 48000lm 400W High Mast LED Flood Light



Main Features


1. 80% lumen maintenance over 50,000hours

2. Wide Power range: 500W

3. 110-480Vac input voltage without additional adapter

4. Patent Built-in Serge Protection.

5. Top chips high efficacy 120lm/w with meanwell driver

6. IP67 waterproof, IK10 impact proof

7. Neutral Salt Spray Resistance

8. Anti-Corression power coating surface treatment

9. Stainless steel brackets material.(Upgradable to SS316)

10. 0-10VDC, DALI and wireless control available

11. DLC, TUV CE RoHS, CB, SAA, LM79 listed

12. High uniformity & color rendering index



Commercial parking lots

A high mounting height for area luminaires assists in reducing shadows between parked vehicles.

Highly efficient lighting with minimal obtrusive light for drivers can be provided for very large parking areas by using high mast installations.

In environments with multi-pole lighting installations, the area where the candlepower beams of adjacent luminaires meet usually has a low luminance

that requires the visual system to adjust to the change in the light level.

Wide coverage of light with high mast lights reduces pole density,

which means reduced frequency of transient adaptation to different vision states.

High mast poles can be placed along perimeters of the parking areas for a minimum of interference.



Model RGL2-400P
Beam Angle 15° 20° 30°

Stable Flux

(5700K after 1 hour)

48000lm
Dimension (mm) 466*388*487
  LEDs 360W
Power Driver 40W
Consumption Total 400W
Replace HID Lamp 400~600W
Net Weight 19kg with stainless steel floodlight bracket
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class IP 65 (Upgradeable to IP 67)
IK Class IK 10
Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 3 years
Driver 3 years
Housing 5 years

Lighting Distribution:


For Different application requirement, Razorlux Genius Series have different types of beam angles options.

at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.

 48000lm High Mast Street Light 400W IP67 Led Flood Light For Football Field 0

Packaging & Shipping



Model

G.W

Genius II Compact 400W P Series

19KGS

 48000lm High Mast Street Light 400W IP67 Led Flood Light For Football Field 2





Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to

the delivery of products, each item will be checked and tested for several times.



 Quality Control - Testing Equipments:

For every piece of Razorlux 200 Watt LED Flood Light are tested in different procedures.

No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)

No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.

No. 3 & 4: Dark Room for testing IES files and other Photometric datas.



Quality Control - Aging Department:
For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment

to make sure of their long term and stable performances within lifetime.


Razorlux Service:

1. Before and after sales in time service 7/24

2. Professional Lighting solution, DIALux simulation available

3. Payment terms: Paypal, TT, LC, DP etc

4. Shipment terms: FOB, CIF, CFR

5. Lead time: 5-7 working days

6. NO MOQ required, sample testing welcome
