Home ProductsLED High Mast Light

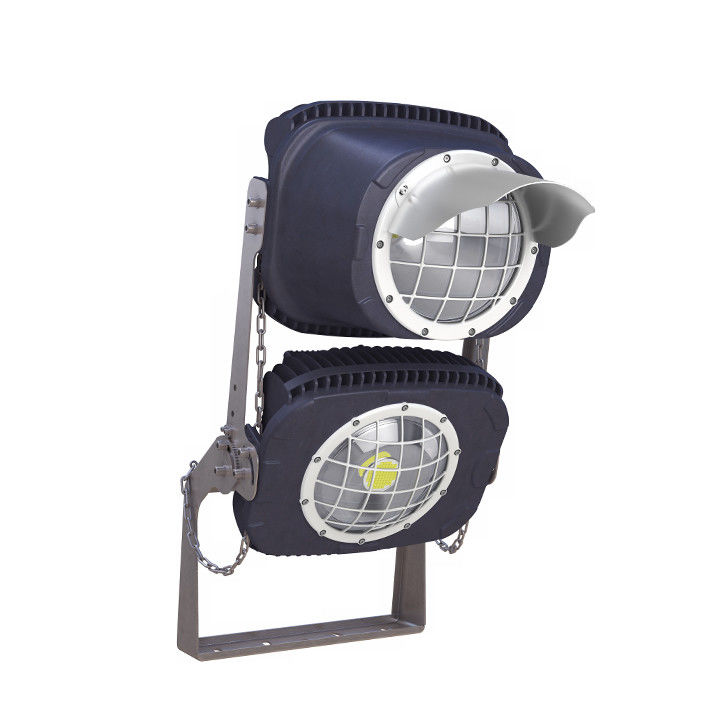

Saa UL High Mast Light Pole 6500K 316l Ss High Mast Flood Light

Saa UL High Mast Light Pole 6500K 316l Ss High Mast Flood Light

  • Saa UL High Mast Light Pole 6500K 316l Ss High Mast Flood Light
Saa UL High Mast Light Pole 6500K 316l Ss High Mast Flood Light
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, LVD, RoHS, Saa, UL
Model Number: RGL2-1000A
Payment & Shipping Terms:
Price: $1,612.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units
Contact Now
Detailed Product Description
Support Dimmer: YES Product Weight(kg): 30
Input Voltage(V): 80~315Vac, (347Vac Available On Request) Product Name: Hot Products Aluminum Alloy 1000W High Mast Light For Large Area Lighting
Housing Color: Dark Or Light Grey Housing Material: Die-cast Aluminum Alloy
Bracket Material: Stainless Steel Power Facor: ≥0.98
THD: ≤10% IP Class: IP 65 (Upgradeable To IP 67)
Color Temperature: 2700-6500K
High Light:

Saa UL high mast light pole

,

6500K high mast light pole

,

316l ss high mast flood light

Hot Products Aluminum Alloy 1000W High Mast Light for Large Area Lighting

Main Features



1. 80% lumen maintenance over 50,000hours

2. Wide Power range: 500W

3. 110-480Vac input voltage without additional adapter

4. Patent Built-in Serge Protection.

5. Top chips high efficacy 120lm/w with meanwell driver

6. IP67 waterproof, IK10 impact proof

7. Neutral Salt Spray Resistance

8. Anti-Corression power coating surface treatment

9. Stainless steel brackets material.(Upgradable to SS316)

10. 0-10VDC, DALI and wireless control available

11. DLC, TUV CE RoHS, CB, SAA, LM79 listed

12. High uniformity & color rendering index



Abstract

High mast lighting systems deliver large area illumination for stadiums and athletic fields,

roadways and interchanges, parking lots, airport aprons, freight terminals, and industrial facilities.



Advantages of High Mast Lighting

High mast lighting is primarily designed to provide an extended lighting coverage while minimizing shadows that may occur when shorter poles are utilized.

Expansive light distribution from a single assembly of luminaires allows 1000W High Mast Light with minimum poles.

Wide pole spacing means less visual clutter and improved visibility.

Low pole density creates less physical obstacles and hence leads to improved safety.

Increased mounting heights allow far reaching illumination using high power luminaires,

therefore high mast poles can be located away from traffic areas and high activity spaces.

This results in fewer design conflicts with other elements and allows more efficient space utilization of the area being illuminated.

The use of high mast lighting poles for co-location of other high mast equipment such as surveillance cameras and cellular antennas reduces the number of tall structures required in an area.

Model
RGL2-1000A
Beam Angle
40° 60° 120° 140°
Stable Flux (5700K after 1 hour)
130000lm
Dimension (mm)
474*388*982


LEDs
900W
Power
Driver
100W
Consumption
Total
1000W
Replace HID Lamp
2200~2500W
Net Weight
30kg (66lbs)
Color Temperature
2700-6500K
Color Rendering
≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life
≥50000Hrs
Housing Material
Aluminum & Powder coating
Power Supply
Meanwell
IP Class
IP 65 (Upgradeable to IP 67)
IK Class
IK 10
Insulation Class
Class I
Working Temperature
-40C ~ 60C / -40F ~ 140F
Working Humidity
10% ~ 95%
AC Input
110-480Vac input voltage without additional adapter
DC Input
100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD
<10%
Power Factor
≥0.98
Warranty
LED Module
5 years
Driver
5 years
Housing
10 years




Lighting Distribution:



For Different application requirement, Razorlux Genius Series have different types of beam angles options.

at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.

 Saa UL High Mast Light Pole 6500K 316l Ss High Mast Flood Light 0

Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to

the delivery of products, each item will be checked and tested for several times.



Quality Control - Testing Equipments:

For every piece of Razorlux 200 Watt LED Flood Light are tested in different procedures.
No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)
No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.
No. 3 & 4: Dark Room for testing IES files and other Photometric datas.

Quality Control - Aging Department:
For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment

to make sure of their long term and stable performances within lifetime.


Razorlux Service:

1. Before and after sales in time service 7/24

2. Professional Lighting solution, DIALux simulation available

3. Payment terms: Paypal, TT, LC, DP etc

4. Shipment terms: FOB, CIF, CFR

5. Lead time: 5-7 working days

6. NO MOQ required, sample testing welcome



Trade Shows
Hong Kong International Lighting Fair (Spring Edition) 2016/2017/2018
Hong Kong International Lighting Fair (Autumn Edition) 2016/2017/2018
2015 LED Expo in Den Bosch, Netherland
2016 Strategies in Light in Las Vegas, U.S.A
2016 IIDEX in Toronto, Canada
