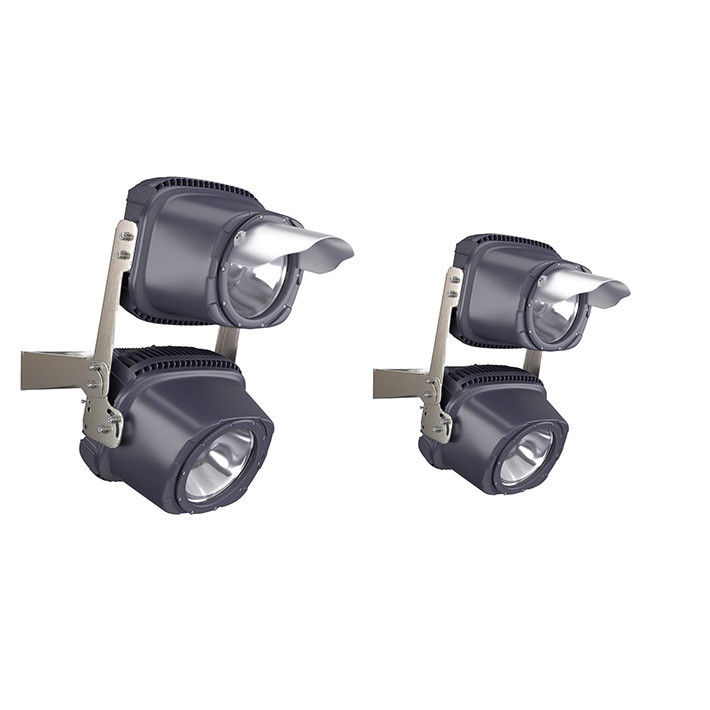

Flood Lights Item Type and LED Light Source High Mast LED Stadium Light
Main Features
1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 500W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. Top chips high efficacy 120lm/w with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index
Abstract
High mast lighting systems deliver large area illumination for stadiums and athletic fields,
roadways and interchanges, parking lots, airport aprons, freight terminals, and industrial facilities.
A high mast light is an area lighting system that is raised high to minimize ground level obstructions and create uniform illumination across a large area.
Throwing a controlled flood of light from above 15 meters (18 m - 55 m typically),
high mast lighting systems are the functional extension of public lighting infrastructure which provides area and road illumination at pedestrian,
urban or vehicle scale from below or at a height of 15 meters.
The high mounting height combined with a multiple-luminaire configuration makes high mast lighting the most efficient and effective way of illuminating large areas.
High mast lights are also the most heavy duty lighting systems that must possess the strength and resistance required to survive the most challenging outdoor environments.
Model
RGL2-1000P
Beam Angle
15° 20° 30°
Stable Flux
(5700K after 1 hour)
120000lm
Dimension (mm)
474*388*982
LEDs
900W
Power
Driver
100W
Consumption
Total
800W
Replace HID Lamp
2200~2500W
Net Weight
38kg with stainless steel floodlight bracket
Color Temperature
2700-6500K
Color Rendering
≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life
≥50000Hrs
Housing Material
Aluminum & Powder coating
Power Supply
Meanwell
IP Class
IP 65 (Upgradeable to IP 67)
IK Class
IK 10
Insulation Class
Class I
Working Temperature
-40C ~ 60C / -40F ~ 140F
Working Humidity
10% ~ 95%
AC Input
110-480Vac input voltage without additional adapter
DC Input
100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD
<10%
Power Factor
≥0.98
Warranty
LED Module
5 year
Driver
5 year
Housing
10 year
Lighting Distribution:
For Different application requirement, Razorlux Genius Series have different types of beam angles options.
at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.
Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to
the delivery of products, each item will be checked and tested for several times.
Quality Control - Testing Equipments:
For every piece of Razorlux 200 Watt LED Flood Light are tested in different procedures.
No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)
No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.
No. 3 & 4: Dark Room for testing IES files and other Photometric datas.
Quality Control - Aging Department:
For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment
to make sure of their long term and stable performances within lifetime.
Razorlux Service:
1. Before and after sales in time service 7/24
2. Professional Lighting solution, DIALux simulation available
3. Payment terms: Paypal, TT, LC, DP etc
4. Shipment terms: FOB, CIF, CFR
5. Lead time: 5-7 working days
6. NO MOQ required, sample testing welcome
