Place of Origin: | Shaanxi, China |
Brand Name: | Razorlux |
Certification: | ce, LVD, RoHS, Saa, UL |
Model Number: | RGL2-1000P |
Minimum Order Quantity: | 2 Pieces |
---|---|
Price: | $1,652.00/Pieces |
Packaging Details: | 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*560mm<br>3.One 20'' Container can accept 250 Units |
Color Temperature(CCT): | 6000K (Daylight Alert), Cool White | Lamp Luminous Efficiency(lm/w): | 120, 120 |
---|---|---|---|
Color Rendering Index(Ra): | 80 | Product Weight(kg): | 30 |
Input Voltage(V): | 80~315Vac, (347Vac Available On Request) | Beam Angle(°): | 15° 20° 30° |
Working Lifetime(Hour): | 50000 | Lamp Body Material: | Aluminum Alloy |

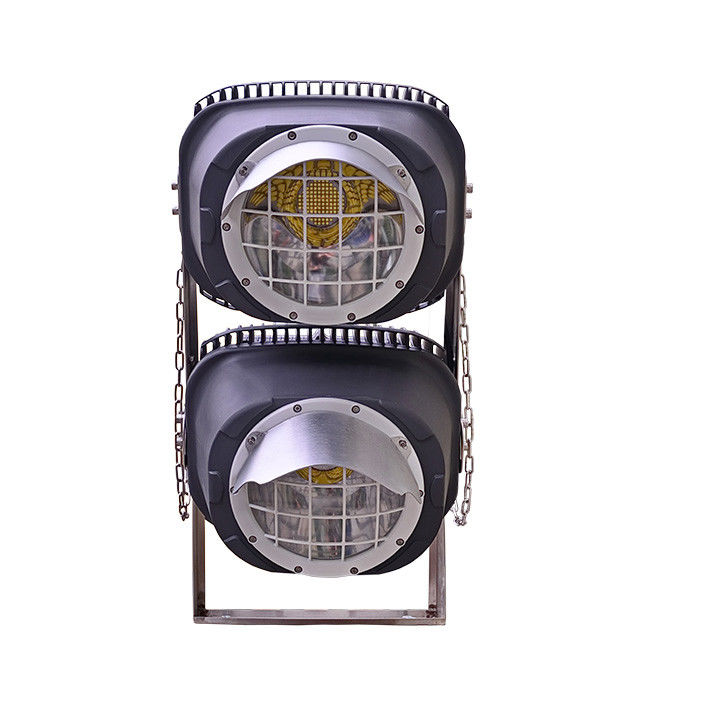

Product Name: | High Mast 1000W LED Flood Light | ||
High Light: | LVD Housing Led High Mast Light,TUV Led High Mast Light,6000K 1000w led flood light |
Main Features
1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 500W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. Top chips high efficacy 120lm/w with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index
Abstract
High mast lighting systems deliver large area illumination for stadiums and athletic fields,
roadways and interchanges, parking lots, airport aprons, freight terminals, and industrial facilities.
APPLICATIONS
1000 Watt LED Flood Lights are Wet location IP66 rated and High Impact IK08 Rated and can operate in temperatures ranging from -22°+104°F,
allowing it to be utilized in a wide variety of applications and climates.
Common uses include: sports and field lighting, security lighting, area lighting, parking lot lighting,
stadium lighting, high mast lighting, wharfs, train stations, outdoor music venues and truck stops.
ENERGY SAVINGS
This fixture provides a lumen output equal to 2000 Watt MH/HPS and can reduce your lighting bill between 50% and up to 80%.
With a lifespan of 176,000 (L70) hours, these lights/fixtures will last 10+ years under normal conditions.
This LED light/fixture will save you a lot of money with lowered lighting bills and maintenance costs over its lifetime.
WARRANTY / CERTIFICATIONS
Buy with confidence: LED Lighting Supply provides a 5-year limited warranty along with ETL certifications to provide long lasting LED Lighting with safe operation!
Model | RGL2-1000P | |
Beam Angle | 15° 20° 30° | |
Stable Flux | 120000lm | |
Dimension (mm) | 474*388*982 | |
LEDs | 900W | |
Power | Driver | 100W |
Consumption | Total | 800W |
Replace HID Lamp | 2200~2500W | |
Net Weight | 38kg with stainless steel floodlight bracket | |
Color Temperature | 2700-6500K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 65 (Upgradeable to IP 67) | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 110-480Vac input voltage without additional adapter | |
DC Input | 100 ~ 400Vdc, 500Vdc ~ 800Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 year |
Driver | 5 year | |
Housing | 10 year |
Lighting Distribution:
For Different application requirement, Razorlux Genius Series have different types of beam angles options.
at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.
Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to
the delivery of products, each item will be checked and tested for several times.
Quality Control - Testing Equipments:
For every piece of Razorlux 200 Watt LED Flood Light are tested in different procedures. |
No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree) |
No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment. |
No. 3 & 4: Dark Room for testing IES files and other Photometric datas. |
Quality Control - Aging Department:
For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment
to make sure of their long term and stable performances within lifetime.
Razorlux Service:
1. Before and after sales in time service 7/24
2. Professional Lighting solution, DIALux simulation available
3. Payment terms: Paypal, TT, LC, DP etc
4. Shipment terms: FOB, CIF, CFR
5. Lead time: 5-7 working days
6. NO MOQ required, sample testing welcome
