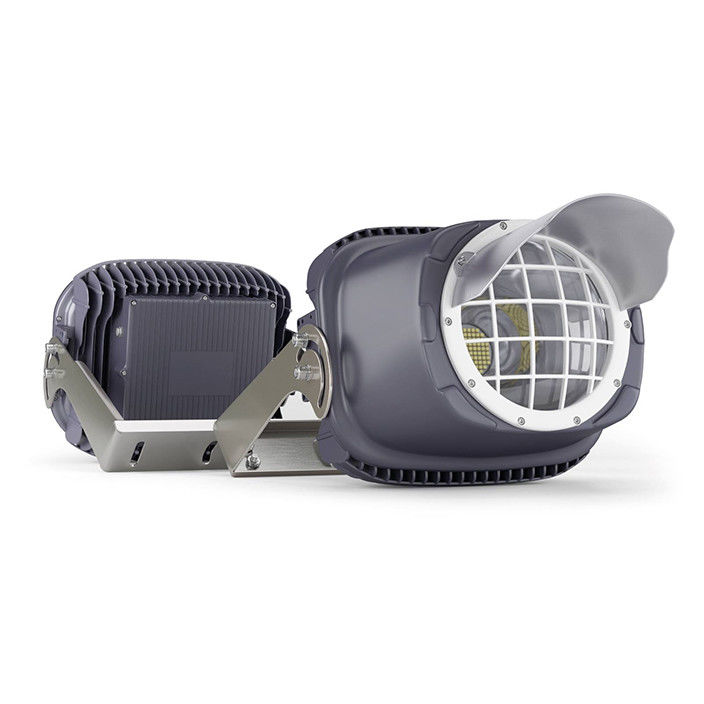

DLC Led High Mast Light 500W 60000lm High Output Led Flood Lights

DLC Led High Mast Light 500W 60000lm High Output Led Flood Lights

  • DLC Led High Mast Light 500W 60000lm High Output Led Flood Lights
DLC Led High Mast Light 500W 60000lm High Output Led Flood Lights
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, LVD, RoHS, Saa, UL
Model Number: RGL2-500P
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: $837.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*560mm<br>3.One 20'' Container can accept 250 Units
Contact Now
Detailed Product Description
Input Voltage(V): 80~315Vac, (347Vac Available On Request) CRI (Ra>): 75
Beam Angle(°): 15° 20° 30° Working Lifetime(Hour): 50000
Lamp Luminous Flux(lm): 60000lm, 60000lm Working Temperature(℃): -40-60, -40 - 60
Warranty(Year): 5-Year Product Name: LED High Mast Lighting
Warranty: 5 Years
High Light:

DLC Led High Mast Light


500W Led High Mast Light


60000lm high output led flood lights


DLC Approved High Power LED light 500W LED High Mast Lighting

Main Features

1. 80% lumen maintenance over 50,000hours

2. Wide Power range: 500W

3. 110-480Vac input voltage without additional adapter

4. Patent Built-in Serge Protection.

5. Top chips high efficacy 120lm/w with meanwell driver

6. IP67 waterproof, IK10 impact proof

7. Neutral Salt Spray Resistance

8. Anti-Corression power coating surface treatment

9. Stainless steel brackets material.(Upgradable to SS316)

10. 0-10VDC, DALI and wireless control available

11. DLC, TUV CE RoHS, CB, SAA, LM79 listed

12. High uniformity & color rendering index


LED High Mast Lights are high output fixtures mounted on top of very tall polls.

Light poles can range from 50 feet high to a high mounting height of 150 feet and each pole is capable of holding from 2 to as many as 16 light fixtures.

Energy usage is easily reduced by 50-75%, and maintenance costs drop dramatically with these highly durable, robust fixtures.


OVERVIEW. 500 Watt LED Flood Light produces 60,000 lumens at 120 lumens/watt.

Die-cast aluminum lighting modules are individually adjustable.

All fixtures are equipped with a 1-10V dimmable driver and built-in 10KvA surge protection.

It comes in 120-277V or 277-480V in either 4000K or 5000K color temperature. 10°, 15°, 30°, 45°, standard 60° or 40*100° beam angles are available.

INSTALL. This fixture has several different mounting options including Yoke / Trunnion or 2 3/8' slip fitter.

Our innovative modular technology along with the multiple mounting configurations makes this high power flood light ideal for many outdoor applications.


Model RGL2-500P
Beam Angle 15° 20° 30°

Stable Flux

(5700K after 1 hour)

Dimension (mm) 466*388*487
  LEDs 450W
Power  Driver 50W
Consumption  Total 500W
Replace HID Lamp 1000~2000W
Net Weight 19kg with stainless steel floodlight bracket
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class

IP 65 (Upgradeable to IP 67)

IK Class

IK 10

Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 years
Driver 5 years
Housing 5 years



Lighting Distribution:

For Different application requirement, Razorlux Genius Series have different types of beam angles options.

at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.

 DLC Led High Mast Light 500W 60000lm High Output Led Flood Lights 0


Application Projects



Packaging & Shipping




Genius II Compact 500W P Series


 DLC Led High Mast Light 500W 60000lm High Output Led Flood Lights 2



Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to

the delivery of products, each item will be checked and tested for several times.


 Quality Control - Testing Equipments:

For every piece of Razorlux 200 Watt LED Flood Light are tested in different procedures.

No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)

No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.

No. 3 & 4: Dark Room for testing IES files and other Photometric datas.


Quality Control - Aging Department:
For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment

to make sure of their long term and stable performances within lifetime.

Razorlux Service:

1. Before and after sales in time service 7/24

2. Professional Lighting solution, DIALux simulation available

3. Payment terms: Paypal, TT, LC, DP etc

4. Shipment terms: FOB, CIF, CFR

5. Lead time: 5-7 working days

6. NO MOQ required, sample testing welcome
