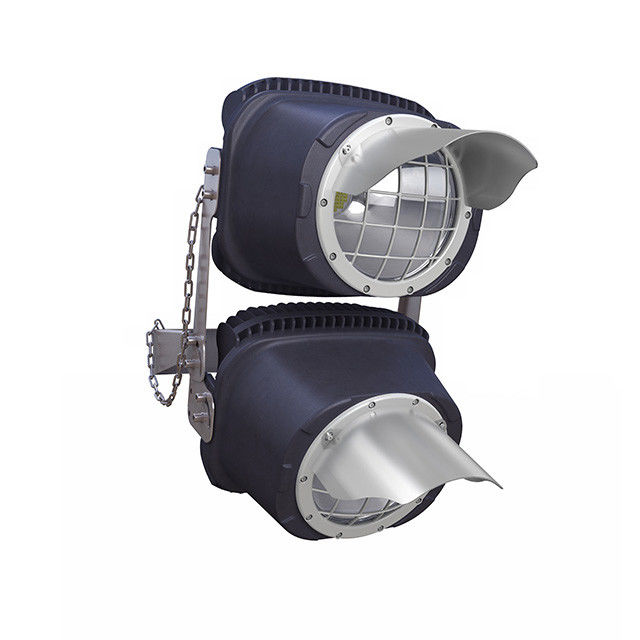

Die Cast Aluminum 1000W High Mast Light for Airport Lighting
Main Features
1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 500W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. Top chips high efficacy 120lm/w with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index
Abstract
High mast lighting systems deliver large area illumination for stadiums and athletic fields,
roadways and interchanges, parking lots, airport aprons, freight terminals, and industrial facilities.
Lighting Performance
Depending on the type of HID lamp your facility utilizes, the performance characteristics of your existing high mast lighting can vary significantly.
For example, if you are using metal halide lamps you may see light that is whiter, but these types of lamps tend to have accelerated lumen degradation,
meaning the light output of the lamps decrease quickly after initial install, and as a result the overall lifetime of the lamp decreases (we have all seen those high mast fixtures
that have “pink” lamps that are barely providing any illumination on the ground).
If you are using high pressure sodium you may see longer “useful” life as these lamps see less lumen degradation than metal halide,
but their fuel structure produces a very “orange” light with a very low color rendering index.
So basically you trade a longer life for a poorer quality light, in regards to visual perspective with HPS.
Model
RGL2-1000P
Beam Angle
15° 20° 30°
Stable Flux
(5700K after 1 hour)
120000lm
Dimension (mm)
474*388*982
LEDs
900W
Power
Driver
100W
Consumption
Total
800W
Replace HID Lamp
2200~2500W
Net Weight
38kg with stainless steel floodlight bracket
Color Temperature
2700-6500K
Color Rendering
≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life
≥50000Hrs
Housing Material
Aluminum & Powder coating
Power Supply
Meanwell
IP Class
IP 65 (Upgradeable to IP 67)
IK Class
IK 10
Insulation Class
Class I
Working Temperature
-40C ~ 60C / -40F ~ 140F
Working Humidity
10% ~ 95%
AC Input
110-480Vac input voltage without additional adapter
DC Input
100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD
<10%
Power Factor
≥0.98
Warranty
LED Module
5 year
Driver
5 year
Housing
10 year
Lighting Distribution:
For Different application requirement, Razorlux Genius Series have different types of beam angles options.
at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.
Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to
the delivery of products, each item will be checked and tested for several times.
Quality Control - Testing Equipments:
For every piece of Razorlux 200 Watt LED Flood Light are tested in different procedures.
No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)
No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.
No. 3 & 4: Dark Room for testing IES files and other Photometric datas.
Quality Control - Aging Department:
For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment
to make sure of their long term and stable performances within lifetime.
Razorlux Service:
1. Before and after sales in time service 7/24
2. Professional Lighting solution, DIALux simulation available
3. Payment terms: Paypal, TT, LC, DP etc
4. Shipment terms: FOB, CIF, CFR
5. Lead time: 5-7 working days
6. NO MOQ required, sample testing welcome
