Lighting And Circuitry Design, DIALux Evo Layout, Agi32 Layout
Lifespan (hours):
50000
Working Time (hours):
50000
Product Weight（kg）:
30
Input Voltage(V):
80~315Vac, (347Vac Available On Request)
CRI (Ra>):
75
High Light:

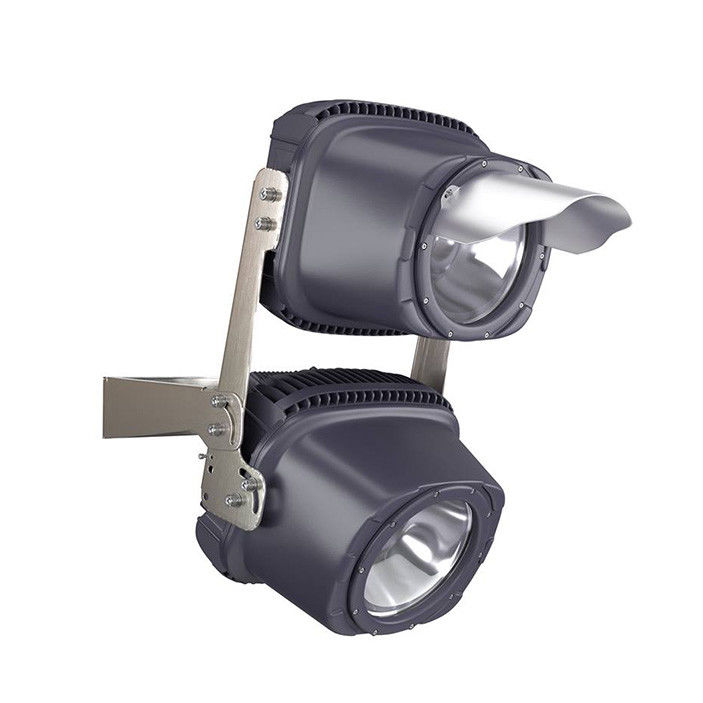

75 CRI Aluminum led flood light fixtures
,
800W led flood light fixtures
,
800W high lumen outdoor flood light
2021 Hot Selling Aluminum Alloy Material IP67 800W Airport Lighting
Main Features
1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 500W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. Top chips high efficacy 120lm/w with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index
High mast lighting is a type of site light fixture that is commonly used to illuminate large areas from a very high mounting height for storage, transportation, and pedestrian use and safety.
High mast fixtures are typically mounted on poles 40 feet to 150 feet tall, with four to 16 fixtures mounted on each pole.
This type of outdoor lighting is often used by municipalities, ports, municipal authorities, and in parking lots of large venues such as stadiums and sports facilities.
Energy Costs
Common (HID) lamp wattages used for conventional high mast fixtures range from 400 watts to 2,000 watts.
The higher the wattage the higher the light output. The function of the area being illuminated, combined with the quantity, spacing,
and mounting height of the light fixtures play a role in the existing wattages that are utilized.
A few 1000w or 2000w high pressure sodium high mast lights (very common wattages for existing high mast lighting) can cost up to
$6,300 and $12,500. respectively. to operate per year, in electricity costs alone.
Model
RGL2-800P
Beam Angle
15° 20° 30°
Stable Flux
(5700K after 1 hour)
96000lm
Dimension (mm)
474*388*982
LEDs
720W
Power
Driver
80W
Consumption
Total
800W
Replace HID Lamp
1800~2200W
Net Weight
38kg with stainless steel floodlight bracket
Color Temperature
2700-6500K
Color Rendering
≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life
≥50000Hrs
Housing Material
Aluminum & Powder coating
Power Supply
Meanwell
IP Class
IP 65 (Upgradeable to IP 67)
IK Class
IK 10
Insulation Class
Class I
Working Temperature
-40C ~ 60C / -40F ~ 140F
Working Humidity
10% ~ 95%
AC Input
110-480Vac input voltage without additional adapter
DC Input
100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD
<10%
Power Factor
≥0.98
Warranty
LED Module
5 year
Driver
5 year
Housing
10 year
Lighting Distribution:
For Different application requirement, Razorlux Genius Series have different types of beam angles options.
at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.
Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to
the delivery of products, each item will be checked and tested for several times.
Quality Control - Testing Equipments:
For every piece of Razorlux 200 Watt LED Flood Light are tested in different procedures.
No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)
No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.
No. 3 & 4: Dark Room for testing IES files and other Photometric datas.
Quality Control - Aging Department:
For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment
to make sure of their long term and stable performances within lifetime.
Razorlux Service:
1. Before and after sales in time service 7/24
2. Professional Lighting solution, DIALux simulation available
3. Payment terms: Paypal, TT, LC, DP etc
4. Shipment terms: FOB, CIF, CFR
5. Lead time: 5-7 working days
6. NO MOQ required, sample testing welcome
Trade Shows
Hong Kong International Lighting Fair (Spring Edition) 2016/2017/2018
Hong Kong International Lighting Fair (Autumn Edition) 2016/2017/2018
