Marine Deck Use IP65 Outdoor Waterproof High Power 90w professional led flood light outdoor
Model
RGL-90A
Beam Angle
60°
Stable Flux (5700K after 1 hour)
10800lm
Dimension (mm)
360x358x187mm
Power Consumption
LEDs
81W
Driver
9W
Total
90W
Replace HID Lamp
150-250W
Net Weight
8kg (17.6lbs)
Color Temperature
2000K - 6000K
Color Rendering
≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life
≥50000Hrs
Housing Material
Aluminum & Powder coating
Power Supply
Meanwell
IP Class
IP 65 (Upgradeable to IP 67)
IK Class
IK 10
Insulation Class
Class I (Upgradeable to Class II)
Working Temperature
-40C ~ 60C / -40F ~ 140F
Working Humidity
10% ~ 95%
AC Input
110-480Vac input voltage without additional adapter
DC Input
100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD
<10%
Power Factor
≥0.98
Warranty
LED Module
5 years
Driver
5 years
Housing
10 years
Features:
✦ 80% lumen maintenance over 50,000hours.
✦ 110-480Vac input voltage without additional adapter.
✦ 0-10VDC, DALI and wireless control available.
✦ Photocell & motion sensor system available.
✦ Built-in surge protection & thermal protection.
✦ Mercury free, No UV or IR.
✦ High uniformity & color rendering index.
Application:
Marine: Tugboats, towboats, offshore service vessels, offshore wind platforms and service vessels, ferries, barges, fishing vessels, patrol boats, shipyard cranes, offshore cranes, dredging equipment, shipyard cranes
Marine LED Lights are high power flood and high mast lights designed with a specialized corrosion resistant finish that withstands the harsh salt water marine environment. Salt water ocean environments can be incredibly destructive on LED Lighting. These finishes provide a level of assurance and they can withstand these challenging environments for yars.
Description

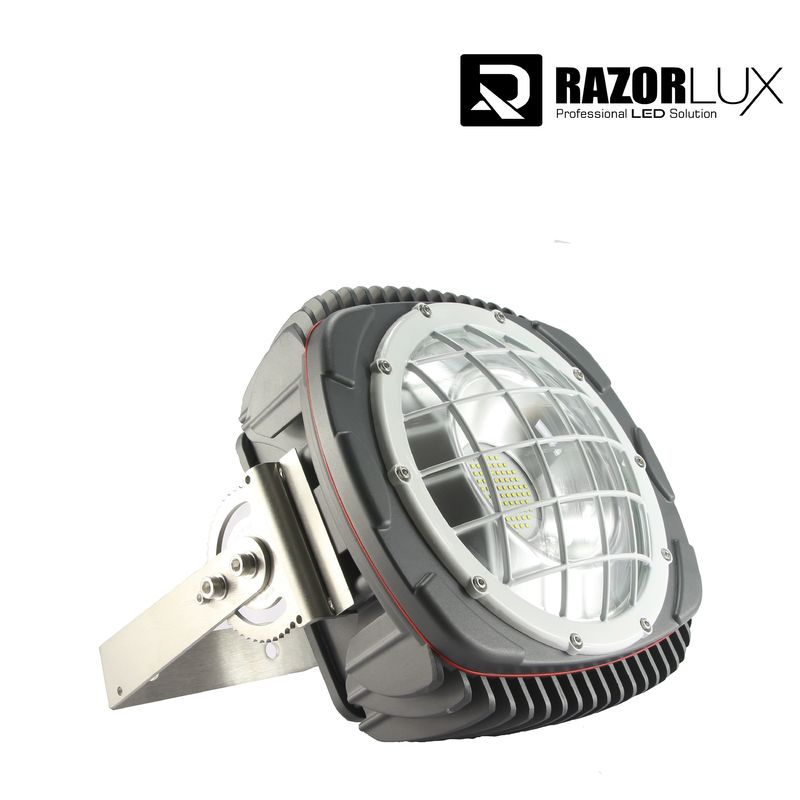

The Razorlux LED is the perfect floodlight for the harsh Marine environment. which is a maintenance free lighting product thanks to the quality materials like the impact resistant, the premium corrosion-resistant aluminium housing. powder treatment for surface coating on the flood lights greatly improve their robust durability. The sophisticated combination of various coating methods ensures a high level of corrosion resistance and improved protection against damage to the work lights. This means that the housing is well protected and ideal for use in harsh conditions and is particularly effective when exposed to large amounts of salt and water. Lamps are available in close or long range optic designs, to suit any working situation.
.For Different application requirement, Razorlux Genius Series have different types of beam angles options.at the moment we have 60° 120° 140° beam angle available.
2.Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to the delivery of products, each item will be checked and tested for several times.
3.For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment to make sure of their long term and stable performances within lifetime.
