Place of Origin: | Shaanxi, China |
Brand Name: | Razorlux |
Certification: | ce, LVD, RoHS, Saa |
Model Number: | RGL2-400P |
Minimum Order Quantity: | 2 Pieces |
---|---|
Price: | $787.00/Pieces |
Packaging Details: | 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*560mm<br>3.One 20'' Container can accept 250 Units |
Input Voltage(V): | 80~305Vac | CRI (Ra>): | 75 |
---|---|---|---|
Beam Angle(°): | 15° 20° 30° | Working Lifetime(Hour): | 50000 |
Lamp Body Material: | Aluminum Alloy | Light Source: | LED |
Lamp Luminous Flux(lm): | 120, 48000lm | Lamp Luminous Efficiency(lm/w): | 120 |
Color Temperature(CCT): | Cool White | Working Temperature(℃): | -40 - 60 |
Housiong Material: | Aluminum | IP Class: | IP 65 (Upgradeable To IP 67) |
High Light: | Saa led security flood light,2700-6500K led security flood light,waterproof marine high intensity led flood light |
Description:

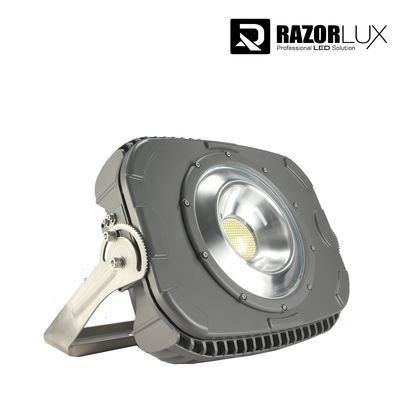

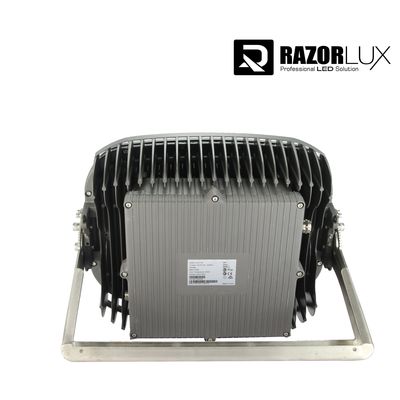

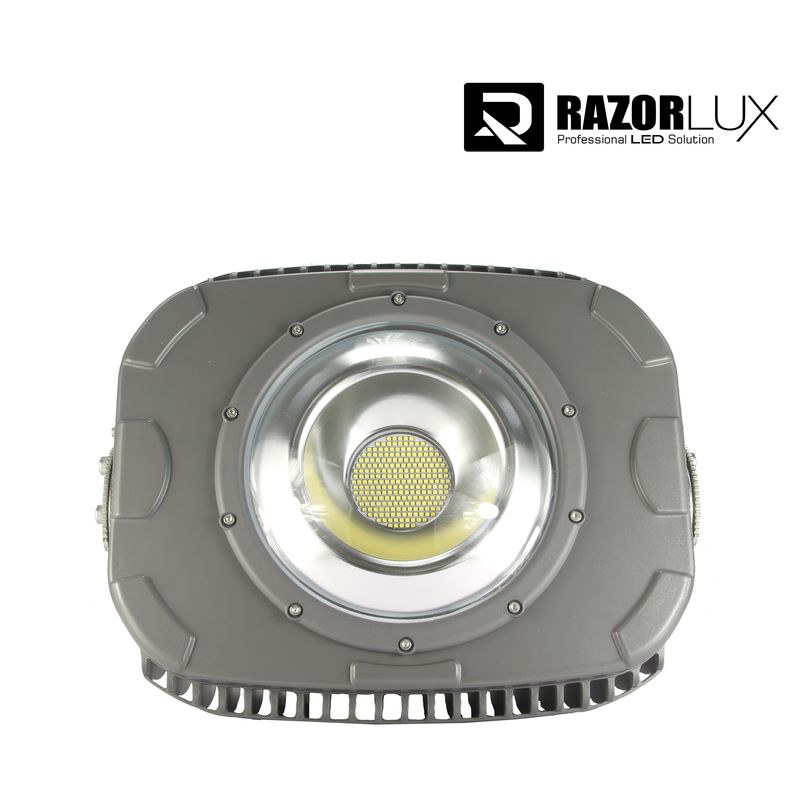

Razorlux now offers floodlights with up to 120000 lumens, among the highest lumen outputs in the industry., marine-grade powder-coated die-cast aluminum, completely water sealed and IP67 compliant, Robust bracket,stainless steel 316 bracket ,this super powerful floodlight will illuminate your workspace and beyond.
Parameter:
Model | RGL2-400P | |
Beam Angle | 15° 20° 30° | |
Stable Flux (5700K after 1 hour) |
48000lm | |
Dimension (mm) | 466*388*487 | |
LEDs | 360W | |
Power | Driver | 40W |
Consumption | Total | 400W |
Replace HID Lamp | 400~600W | |
Net Weight | 19kg with stainless steel floodlight bracket | |
Color Temperature | 2700-6500K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class |
IP 65 (Upgradeable to IP 67) |
|
IK Class |
IK 10 |
|
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 110-480Vac input voltage without additional adapter | |
DC Input | 100 ~ 400Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 year |
Driver | 5 year | |
Housing | 10 year |
For Different application requirement, Razorlux Genius Series have different types of beam angles options.
at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.
Features:
80-305Vac,12-24V DC Voltage Range
Commercial marine grade powder-coating and treatment on a die-cast aluminum housing
316 Stainless steel mounting bracket and fastening components
IP67 for protection from the elements and maintenance-free operation
2700K-6000K,5000K Daylight White color, perfect for work areas
LEDs with a 15,°20°,40°, 60°120°,beam angle
IP67 waterproof, IK10 impact proof
TOP chips high efficacy 130lm/w±7% with meanwell driver
0-10VDC, Casambi,DALI and wireless control available
DLC, TUV CE RoHS, CB, SAA, UL,LM79 listed
Neutral Salt Spray Resistance
Application:
Marine: Tugboats, towboats, offshore service vessels, offshore wind platforms and service vessels, ferries, barges, fishing vessels, patrol boats, shipyard cranes, offshore cranes, dredging equipment, shipyard cranes
Advantage:
Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to
the delivery of products, each item will be checked and tested for several times.
For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment to make sure of their long term and stable performances within lifetime.
FAQ:
Q1. Are you a factory?
YES, our factory in XI'AN established in 2010 with 50 workers and 10 engineers.
Q2. : Color temperature of the outdoor led high mast light?
3000/3500/4000/4500/5000/5700/6000/6500K
Q3: Certificates for the outdoor led high mast light?
CE(EMC + LVD) SAA ROHS UL DLC
Q4: How long is the lifetime for the outdoor led high mast light?
50,000HOURS
Q5: Lumens of the outdoor led high mast light?
100-130 LM/W Differs with different series
Q6: Warranty for the outdoor led high mast light?
5 years warranty depends on customers requests
Q7: What lamps can be replaced with the outdoor led high mast light?
Halogen,HPSL & compact fluorescent lamps.
Q8: Any intelligent options for the outdoor led high mast light?
0-10V PWM DALI PLC light control
Q9: Any OEM accessories can be provided when the standard one does not work for installation?
Yes, OEM/ODM support for the different application request.
Q10: Can I have our LOGO on the products and packages?
A: Yes.
Q11: How to deal with the faulty?
Our products are produced in a strict quality control system and the defective rate is less than 0.2%.
If a Quality problem happens, Return/Refund policy according to warranty agreement.
