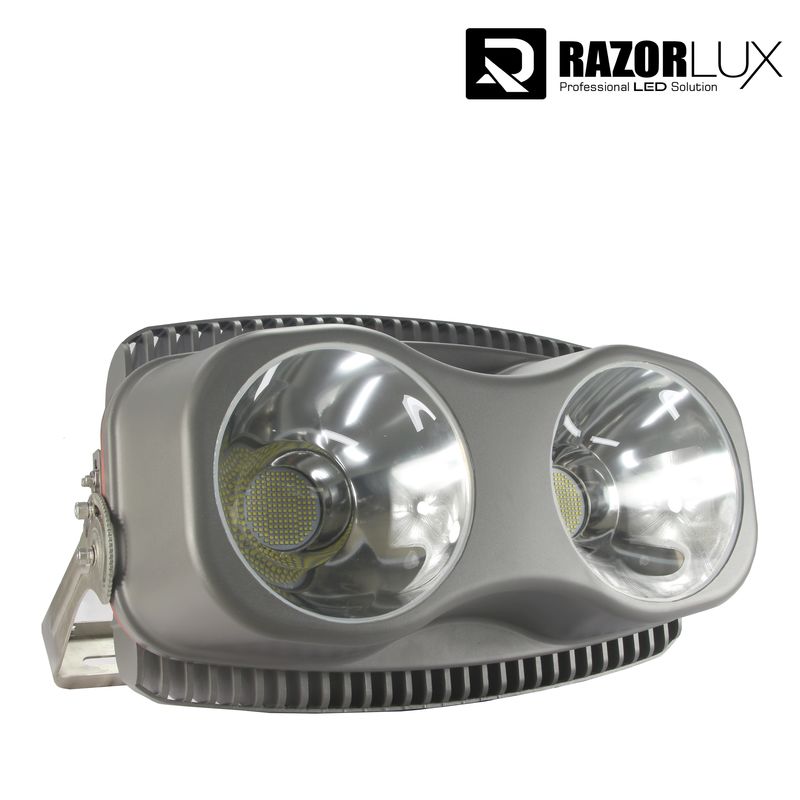

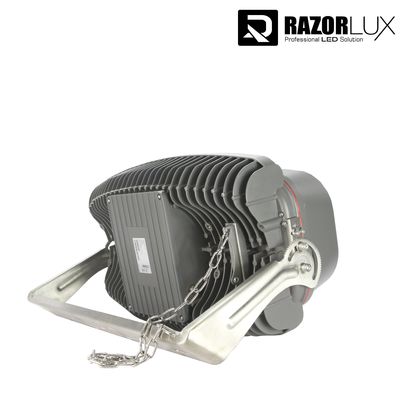

Aluminum House 12V 24VDC Boat Navigation Lights 96000lm Outside Flood Lights 800W

Aluminum House 12V 24VDC Boat Navigation Lights 96000lm Outside Flood Lights 800W

  • Aluminum House 12V 24VDC Boat Navigation Lights 96000lm Outside Flood Lights 800W
  • Aluminum House 12V 24VDC Boat Navigation Lights 96000lm Outside Flood Lights 800W
Aluminum House 12V 24VDC Boat Navigation Lights 96000lm Outside Flood Lights 800W
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, LVD, RoHS, Saa, UL
Model Number: RGL2-800P
Payment & Shipping Terms:
Price: $10.00 - $1,543.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*560mm<br>3.One 20'' Container can accept 250 Units
Supply Ability: 5000 Set/Sets per Month
Contact Now
All Products
LED Outdoor Flood Light (33)
Marine LED Flood Light (42)
Waterproof LED Flood Light (25)
LED Industrial Flood Light (18)
Dimmable LED Flood Light (22)
LED Stadium Lights (62)
LED Outdoor Sports Lighting (19)
LED Boat Deck Light (11)
LED High Mast Light (17)
LED Crane Light (10)
LED High Bay Lights (28)
LED Explosion Proof Light (28)
Detailed Product Description
Color Temperature(CCT): 2700-6500K, Cool White Lamp Luminous Efficiency(lm/w): 120lm/w
Color Rendering Index(Ra): 75 Lighting Solutions Service: Lighting And Circuitry Design, DIALux Evo Layout
Lifespan (hours): 50000 Product Weight（kg）: 30
Input Voltage(V): 80~305Vac,180-528vac Beam Angle(°): 15° 20° 30°
Lamp Body Material: Aluminum Alloy Lamp Luminous Flux(lm): 96000lm
Working Temperature(℃): -40C ~ 60C / -40F ~ 140F, -40 - 60 IP Class: IP 65 (Upgradeable To IP 67)
High Light:

12V 24VDC boat navigation lights

,

800W boat navigation lights

,

96000lm outside flood lights

Aluminum house 12V 24VDC 800W marine light led for Boat Rescue

Parameters:

Model

RGL2-800P
Beam Angle

15° 20° 30°
Stable Flux (5700K after 1 hour)

96000lm
Dimension (mm)

671*405*379

Power Consumption
LEDs
720W
Power
Driver
80W
Consumption
Total
800W
Replace HID Lamp

1800~2200W
Net Weight

38kg (84lbs)
Color Temperature

2700-6500K
Color Rendering

≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life

≥50000Hrs
Housing Material

Aluminum & Powder coating
Power Supply

Meanwell
IP Class

IP 65 (Upgradeable to IP 67)
IK Class

IK 10
Insulation Class

Class I
Working Temperature

-40C ~ 60C / -40F ~ 140F
Working Humidity

10% ~ 95%
AC Input

110-480Vac input voltage without additional adapter
DC Input

100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD

<10%
Power Factor

≥0.98

       Warranty
LED Module
5 years

Driver
5 years

Housing
10 years



Features:

✦ 80% lumen maintenance over 50,000hours.
✦ 110-480Vac input voltage without additional adapter.
✦ 0-10VDC, DALI and wireless control available.
✦ Photocell & motion sensor system available.
✦ Built-in surge protection & thermal protection.
✦ Mercury free, No UV or IR.
✦ High uniformity & color rendering index.



Aluminum House 12V 24VDC Boat Navigation Lights 96000lm Outside Flood Lights 800W 0



Advantages:

Razorlux’s reliable in-lighting design and technical team to ensure we deliver as promised

Razorlux continuously improves our range to deliver the best performance, with enhanced operational efficiencies, like:

1.Market-leading weight and sail area = Easy retrofit of old style luminaires, and reduced install costs

2.Meanwell drivers = Ease of maintenance

3.Patented heat sink design = Better heat dissipation in harsh environment

4.Unique design = you can not find the second supplier in the market

5.Wide selection of beam angle = you always find the best one to match with the height of installation

6.Easy installation for electricians = reduced installation costs

7.Full replacement warranty* = confidence that you are working with a company who stands behind their product

8.0-10V /1-10V dimmable = reduced operating costs and ability to choose what parts of the fields you illuminate

9.Various Colour Temperatures available = easier matching of existing luminaires on site



Application:



1. Instead of the fluorescent lights indoors
2. School / Universities / Hospital
3. Conference / Meeting room / Show Room
4. Commercial establishments
5. Factories / Offices
6. Super-markets



FAQ:



Q1. Are you a factory?
YES, our factory in XI'AN established in 2010 with 50 workers and 10 engineers.

Q2. : Color temperature of the outdoor led high mast light?
3000/3500/4000/4500/5000/5700/6000/6500K

Q3: Certificates for the outdoor led high mast light?
CE(EMC + LVD) SAA ROHS UL DLC

Q4: How long is the lifetime for the outdoor led high mast light?
50,000HOURS

Q5: Lumens of the outdoor led high mast light?
100-130 LM/W Differs with different series

Q6: Warranty for the outdoor led high mast light?
5 years warranty depends on customers requests

Q7: What lamps can be replaced with the outdoor led high mast light?
Halogen,HPSL & compact fluorescent lamps.

Q8: Any intelligent options for the outdoor led high mast light?
0-10V PWM DALI PLC light control

Q9: Any OEM accessories can be provided when the standard one does not work for installation?
Yes, OEM/ODM support for the different application request.

Q10: Can I have our LOGO on the products and packages?
A: Yes.

Q11: How to deal with the faulty?
Our products are produced in a strict quality control system and the defective rate is less than 0.2%.
If a Quality problem happens, Return/Refund policy according to warranty agreement.
