Place of Origin: | Shaanxi, China |
Brand Name: | Razorlux |
Certification: | ce, LVD, RoHS, Saa, UL |
Model Number: | RGL2-1000P |
Minimum Order Quantity: | 2 Pieces |
---|---|
Price: | $2,753.00/Pieces |
Packaging Details: | 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*560mm<br>3.One 20'' Container can accept 250 Units |
Color Temperature(CCT): | 6000K (Daylight Alert), Cool White | Lamp Luminous Efficiency(lm/w): | 120 |
---|---|---|---|
Color Rendering Index(Ra): | 80 | Lighting Solutions Service: | Lighting And Circuitry Design, DIALux Evo Layout, Agi32 Layout |
Product Weight(kg): | 30 | Input Voltage(V): | 80~315Vac, (347Vac Available On Request) |
Beam Angle(°): | 15° 20° 30° | Application: | Sports Stadiums |
Lamp Luminous Flux(lm): | 120000, 120000lm | Working Temperature(℃): | -40 To 60, -40 - 60 |

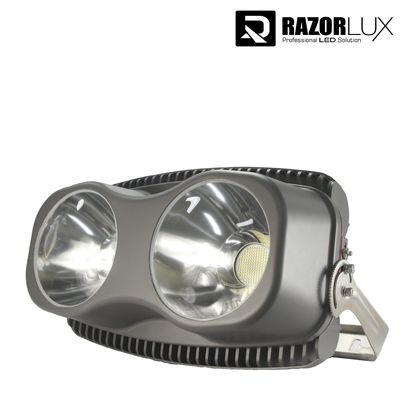

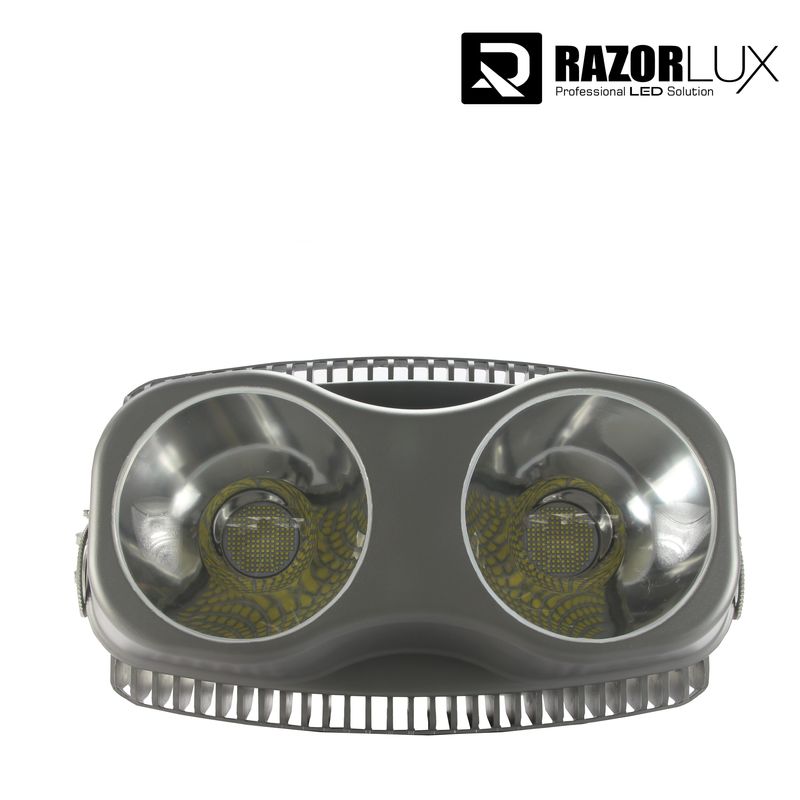

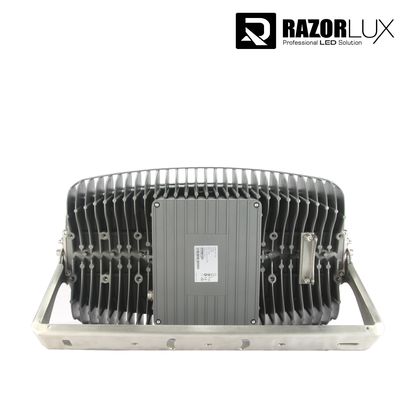

Product Name: | 1000W LED Marine Flood Light | Warranty: | 5Years |
IP Class: | IP 65 (Upgradeable To IP 67) | ||
High Light: | 120000lm Marine Led Flood Light,1000W Marine Led Flood Light,high lumen outdoor led flood light |
Featutres:
80-305Vac,12-24V DC Voltage Range
Commercial marine grade powder-coating and treatment on a die-cast aluminum housing
316 Stainless steel mounting bracket and fastening components
IP67 for protection from the elements and maintenance-free operation
2700K-6000K,5000K Daylight White color, perfect for work areas
LEDs with a 15,°20°,40°, 60°120°,beam angle
IP67 waterproof, IK10 impact proof
TOP chips high efficacy 130lm/w±7% with meanwell driver
0-10VDC, Casambi,DALI and wireless control available
DLC, TUV CE RoHS, CB, SAA, UL,LM79 listed
Neutral Salt Spray Resistance
Parameters:
Model | RGL2-1000P | |
Beam Angle | 15° 20° 30° | |
Stable Flux (5700K after 1 hour) |
120000lm | |
Dimension (mm) | 474*388*982 | |
LEDs | 900W | |
Power | Driver | 100W |
Consumption | Total | 800W |
Replace HID Lamp | 2200~2500W | |
Net Weight | 38kg with stainless steel floodlight bracket | |
Color Temperature | 2700-6500K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class |
IP 65 (Upgradeable to IP 67) |
|
IK Class |
IK 10 |
|
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 110-480Vac input voltage without additional adapter | |
DC Input | 100 ~ 400Vdc, 500Vdc ~ 800Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 year |
Driver | 5 year | |
Housing | 10 year |
Advantages:
1. Service:We also provide our client with lighting layout design and brightness calculation of projects ,Razorlux would be your first choice of professional Led lighting supplies.
2. Universival input without additional.
3. Meanwell driver,heat resistant for our power supply. It can working well on temperature at 55°C
4. Multi-function designed, flexible,you always find a combination fitting your projects perfectly.
5. Unique and elegant appearance,and patented heat dissipation technology.
6. Have cooperated with a lot of importers in EU markets more than 10 years.
7. Experienced in doing business with big customers.
9. Own designing team for new products development ,our products were developed by ourselves and we hold 125 patents.
10. We have passed the testing and got the ISO9001,TUV,LVD,SAA,CE,UL,DLC,CUL,Rohs certificates.
Application:
Outdoor/Indoor, Stadium, Airport, Marine, Ship, Dock, Trawer, Harour, Mining, Industrial lighting, etc.
Commercial Vessels. Suitable for use on tugboats, towboats, passenger ferries, fishing vessels, trawlers and barges.
Marine applications: Walkways, doorways and stairwells on the deck and interior of vessels, as well as perimeter deck lighting
Mining applications: Perimeter and walkway lighting on large mining equipment like shovels and draglines, machine, electrical and engine rooms, as well as any dusty or dirty location
Industrial: Parking garages, carwashes, transportation centers, subways, swimming pools, locker rooms, automotive repair facilities as well as food processing facilities, including walk-in freezers, and industrial kitchens
FAQ:
Q1. Are you a factory?
YES, our factory in XI'AN established in 2010 with 50 workers and 10 engineers.
Q2. : Color temperature of the outdoor led high mast light?
3000/3500/4000/4500/5000/5700/6000/6500K
Q3: Certificates for the outdoor led high mast light?
CE(EMC + LVD) SAA ROHS UL DLC
Q4: How long is the lifetime for the outdoor led high mast light?
50,000HOURS
Q5: Lumens of the outdoor led high mast light?
100-130 LM/W Differs with different series
Q6: Warranty for the outdoor led high mast light?
5 years warranty depends on customers requests
Q7: What lamps can be replaced with the outdoor led high mast light?
Halogen,HPSL & compact fluorescent lamps.
Q8: Any intelligent options for the outdoor led high mast light?
0-10V PWM DALI PLC light control
Q9: Any OEM accessories can be provided when the standard one does not work for installation?
Yes, OEM/ODM support for the different application request.
Q10: Can I have our LOGO on the products and packages?
A: Yes.
