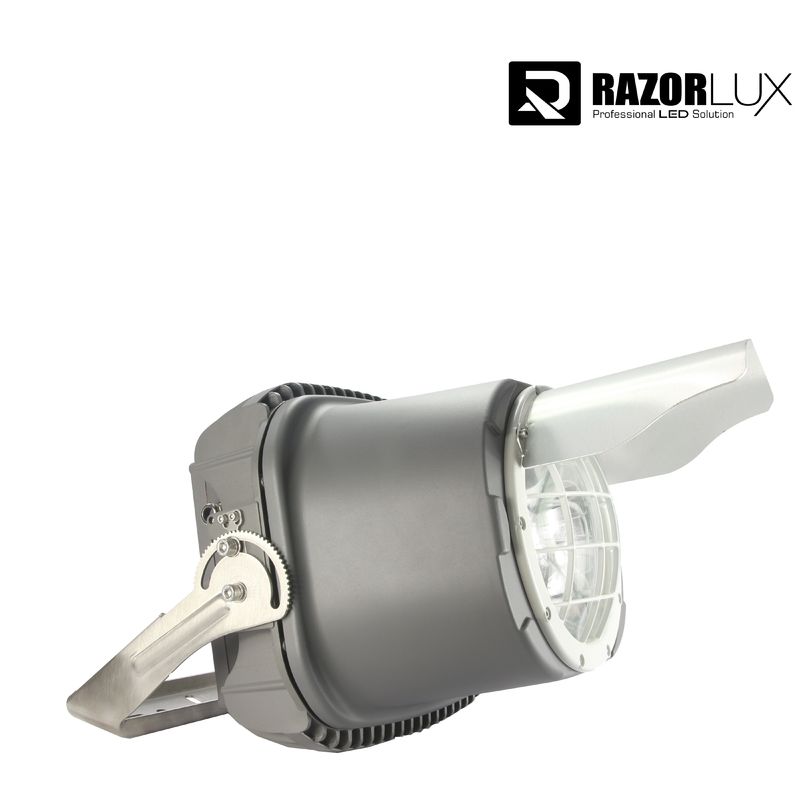

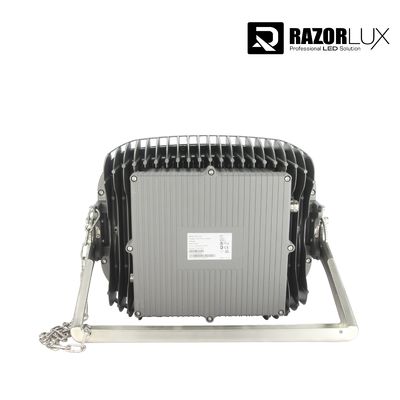

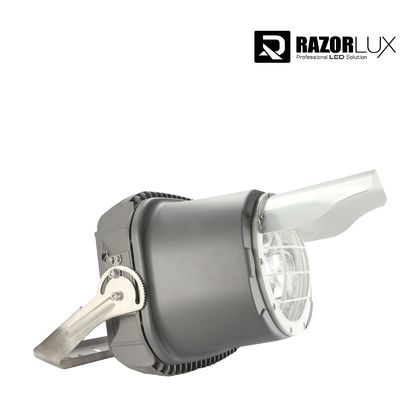

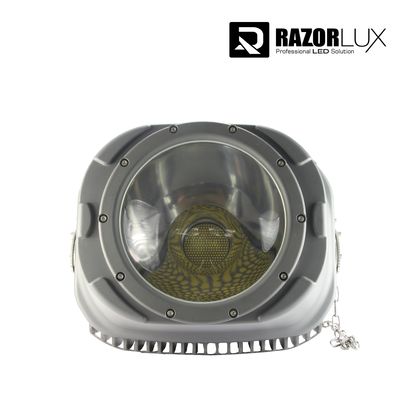

Saa Marine Led Flood Light 6000lm/W Boat Navigation Led Light

Saa Marine Led Flood Light 6000lm/W Boat Navigation Led Light

  • Saa Marine Led Flood Light 6000lm/W Boat Navigation Led Light
  • Saa Marine Led Flood Light 6000lm/W Boat Navigation Led Light
  • Saa Marine Led Flood Light 6000lm/W Boat Navigation Led Light
  • Saa Marine Led Flood Light 6000lm/W Boat Navigation Led Light
Saa Marine Led Flood Light 6000lm/W Boat Navigation Led Light
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, C-tick, EMC, LVD, RoHS, Saa, UL
Model Number: RGL2-400P
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: $783.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*560mm<br>3.One 20'' Container can accept 250 Units
Contact Now
Detailed Product Description
Color Temperature(CCT): 6000K (Daylight Alert), Cool White Lamp Luminous Efficiency(lm/w): 6000, 120
Lighting Solutions Service: Lighting And Circuitry Design, DIALux Evo Layout, Agi32 Layout Lifespan (hours): 50000
Product Weight(kg): 15 Input Voltage(V): 80~305Vac,180-528vac
Beam Angle(°): 15° 20° 30° Lamp Body Material: Aluminum Alloy
Working Temperature(℃): -40 - 60°C, -40 - 60 IP Class: IP 65 (Upgradeable To IP 67)
LED Chip: Samsung
High Light:

6000lm/w Marine Led Flood Light

,

Saa Marine Led Flood Light

,

Saa boat navigation led light

High Quality 48000lm IP67 Waterproof 400W Boat Navigation Light

Parameters:

Model

RGL2-400P
Beam Angle

15° 20° 30°
Stable Flux(5700K after 1 hour)

48000lm
Dimension (mm)

466*388*487

LEDs
360W
Power
Driver
40W
Consumption
Total
400W
Replace HID Lamp

400~600W
Net Weight

19kg with stainless steel floodlight bracket
Color Temperature

2700-6500K
Color Rendering

≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life

≥50000Hrs
Housing Material

Aluminum & Powder coating
Power Supply

Meanwell
IP Class

IP 65 (Upgradeable to IP 67)
IK Class

IK 10
Insulation Class

Class I
Working Temperature

-40C ~ 60C / -40F ~ 140F
Working Humidity

10% ~ 95%
AC Input

110-480Vac input voltage without additional adapter
DC Input

100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD

<10%
Power Factor

≥0.98
Warranty
LED Module
5 year

Driver
5 year

Housing
10 year

Features:

1. 80% lumen maintenance over 50000hours.
2. Wide Power range: 400W.
3. 110-480Vac input voltage without additional adapter.
4. Patent Built-in Serge Protection.
5. Top chips high efficacy 120lm/w with meanwell driver.
6. IP67 waterproof, IK10 impact proof.
7. NeutralSalt Spray Resistance.
8. Anti-Corression power coating surface treatment.
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available.
11. UL cUL DLC, TUV CE RoHS, CB, SAA, LM79 listed.

12. High uniformity & color rendering index.



Description:



Lighter & Thinner Featuring with corrosion proof casting aluminum heat sink & sleek shatter-proof tempered glass diffuser, Razolux provides a more aesthetic pleasing feeling and blends perfectly into all exteriors. Unique reflector Multiple Beam Angles deliver more lumens to the desired target. It will siginificantly enhance the visibility of lighting area and improve safety, or help the views more bright and beautiful. Highly energy efficient 130lm/W, super durable and high performance, Razorlux is energy efficient as well as cost efficient.



Lighter & Thinner Featuring with corrosion proof casting aluminum heat sink & sleek shatter-proof tempered glass diffuser, Razorlux provides a more aesthetic pleasing feeling and blends perfectly into all exteriors. Unique reflector Multiple Beam Angles deliver more lumens to the desired target. It will siginificantly enhance the visibility of lighting area and improve safety, or help the views more bright and beautiful. Highly energy efficient 130lm/W, super durable and high performance, Razorlux is energy efficient as well as cost efficient.



Application:



Saa Marine Led Flood Light 6000lm/W Boat Navigation Led Light 0

Features:



We use Top grade Osram / Cree /lumileds chip

Meanwell driver

Stainless steel bracket

Powder coating for lamp body,corrosion resistance is better

Patented built-in driver and fin type radiator.(Very good heat dissipation)

Built-in surge protection, Built-in thermal protection.

Uni-body and Multi-function designed. (Suitable for all projects)

Universal input 80~305Vac without additional adapter.

110-130 lm/w lamp efficiency.

All our product are IP65/67 waterproof.

All our product has 3/5 years warranty.



Application:



Saa Marine Led Flood Light 6000lm/W Boat Navigation Led Light 1

Mining applications: Perimeter and walkway lighting on large mining equipment like shovels and draglines, machine, electrical and engine rooms, as well as any dusty or dirty location

Industrial: Parking garages, carwashes, transportation centers, subways, swimming pools, locker rooms, automotive repair facilities as well as food processing facilities, including walk-in freezers, and industrial kitchens

FAQ:



Q1. Are you a factory?
YES, our factory in XI'AN established in 2010 with 50 workers and 10 engineers.

Q2. : Color temperature of the outdoor led high mast light?
3000/3500/4000/4500/5000/5700/6000/6500K

Q3: Certificates for the outdoor led high mast light?
CE(EMC + LVD) SAA ROHS UL DLC

Q4: How long is the lifetime for the outdoor led high mast light?
50,000HOURS

Q5: Lumens of the outdoor led high mast light?
100-130 LM/W Differs with different series

Q6: Warranty for the outdoor led high mast light?
5 years warranty depends on customers requests

Q7: What lamps can be replaced with the outdoor led high mast light?
Halogen,HPSL & compact fluorescent lamps.

Q8: Any intelligent options for the outdoor led high mast light?
0-10V PWM DALI PLC light control

Q9: Any OEM accessories can be provided when the standard one does not work for installation?
Yes, OEM/ODM support for the different application request.

Q10: Can I have our LOGO on the products and packages?
A: Yes.

Q11: How to deal with the faulty?
Our products are produced in a strict quality control system and the defective rate is less than 0.2%.
If a Quality problem happens, Return/Refund policy according to warranty agreement.
