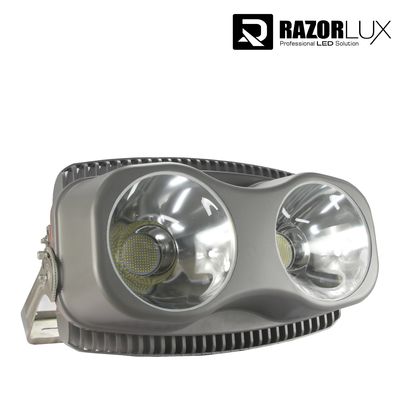

120000lm Marine Deck Lights Boats Floodlight 1000W DIALux Evo Layout

120000lm Marine Deck Lights Boats Floodlight 1000W DIALux Evo Layout

  • 120000lm Marine Deck Lights Boats Floodlight 1000W DIALux Evo Layout
  • 120000lm Marine Deck Lights Boats Floodlight 1000W DIALux Evo Layout
  • 120000lm Marine Deck Lights Boats Floodlight 1000W DIALux Evo Layout
  • 120000lm Marine Deck Lights Boats Floodlight 1000W DIALux Evo Layout
120000lm Marine Deck Lights Boats Floodlight 1000W DIALux Evo Layout
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, LVD, RoHS, Saa
Model Number: RGL2-1000P
Payment & Shipping Terms:
Price: $1,652.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*560mm<br>3.One 20'' Container can accept 250 Units
Contact Now
Detailed Product Description
Lamp Luminous Efficiency(lm/w): 120, 120 Color Rendering Index(Ra): 80
Lighting Solutions Service: DIALux Evo Layout, Agi32 Layout, Auto CAD Layout Lifespan (hours): 50000
Product Weight(kg): 30 Input Voltage(V): 80~305Vac,180-528vac
CRI (Ra>): 75 Beam Angle(°): 15° 20° 30°
Working Lifetime(Hour): 50000 Lamp Body Material: Aluminum Alloy
IP Rating: IP67 Application: Sports Stadiums
Lamp Luminous Flux(lm): 120000, 120000lm Working Temperature(℃): -40 To 60, -40 - 60
Product Name: Waterproof LED Lights For Boats IP Class: IP 65 (Upgradeable To IP 67)
High Light:

1000W marine deck lights

,

120000lm marine deck lights

,

Boats marine led floodlight

5 Years Warranty High Power 1000W Waterproof LED Lights for Boats



Features:



New type Top grade Osram/Lumileds light source.

New type 6mm thick installation Stainless steel brackets

Heavy Duty Front Cover (Free upgrade)

EX-protection cover available

IK10 Impact Resistance

Neutral Salt Spray Resistance

Anti-Corression power coating surface treatment



Parameters:



Model RGL-1000P
Beam Angle 15° 20° 30°

Stable Flux

(5700K after 1 hour)

120000lm
Dimension (mm) 671*405*379
  LEDs 900W
Power  Driver 100W
Consumption  Total 800W
Replace HID Lamp 2200~2500W
Net Weight 38kg with stainless steel floodlight bracket
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class

IP 65 (Upgradeable to IP 67)

IK Class

IK 10

Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 year
Driver 5 year
Housing 10 year







For Different application requirement, Razorlux Genius Series have different types of beam angles options.

at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.




 120000lm Marine Deck Lights Boats Floodlight 1000W DIALux Evo Layout 1



Unique design, Osram/lumileds chip better performance for industrial lighting.

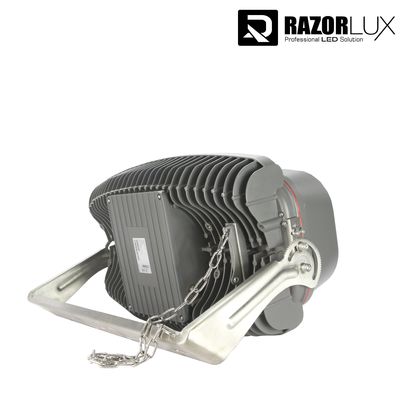

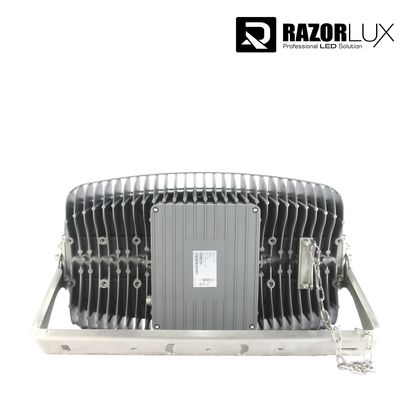

360° adjustable bracket, can be adjusted to any projection angle.

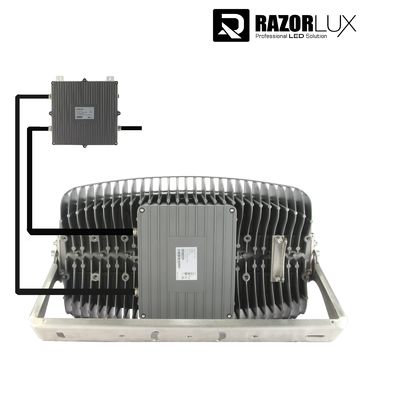

Built in driver , built-in surge protection, built -in thermal protection, neat inner cavity structure, ensure the thermal convection of LED driver.

Entirely made in aluminimum, not only exquisite appearance, but also no corrosion concerns.

Corrosive resistant powder coating and SS316 stainless steel strong bracket, it can keep working on harsh environment.





Application:



1. Instead of the fluorescent lights indoors
2. School / Universities / Hospital
3. Conference / Meeting room / Show Room
4. Commercial establishments
5. Factories / Offices
6. Super-markets





FAQ:



Q1. Are you a factory?
YES, our factory in XI'AN established in 2010 with 50 workers and 10 engineers.

Q2. : Color temperature of the outdoor led high mast light?
3000/3500/4000/4500/5000/5700/6000/6500K

Q3: Certificates for the outdoor led high mast light?
CE(EMC + LVD) SAA ROHS UL DLC

Q4: How long is the lifetime for the outdoor led high mast light?
50,000HOURS

100-130 LM/W Differs with different series



Q5: Lumens of the outdoor led high mast light?
100-130 LM/W Differs with different series
