Home ProductsLED Boat Deck Light

5000K Heavy Duty Led Flood Lights IP67 1200w Marine Spot Marine Mining

5000K Heavy Duty Led Flood Lights IP67 1200w Marine Spot Marine Mining

  • 5000K Heavy Duty Led Flood Lights IP67 1200w Marine Spot Marine Mining
5000K Heavy Duty Led Flood Lights IP67 1200w Marine Spot Marine Mining
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: C-tick, EMC, LVD, RoHS, UL
Model Number: RGL2-1200P
Payment & Shipping Terms:
Price: $800.00 - $1,652.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*570x2 <br>3. 2 cartons per set
Supply Ability: 5000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Color Temperature(CCT): 5000K (Daylight) Lamp Luminous Efficiency(lm/w): 120
Color Rendering Index(Ra): 80 Support Dimmer: Yes
Lighting Solutions Service: DIALux Evo Layout, Agi32 Layout, Auto CAD Layout Working Time (hours): 50000
Product Weight(kg): 30 Input Voltage(V): 90-305Vac
CRI (Ra>): 80 Beam Angle(°): 15, 20, 30, 40, 60, 120
Working Lifetime(Hour): 50000 Lamp Body Material: Aluminum Alloy
IP Rating: IP67 Application: Vessel Deck
Lamp Luminous Flux(lm): 144000 Working Temperature(℃): -40 To 60
Warranty(Year): 5-Year Product Name: Sports Lighting Marine Flood Light 1200w For Sea Fishing
Power: 1200W Housing Material: Die-cast Aluminum Alloy
Painting: Powder Coating Bracket: Stainless Steel
LED Chip: Samsung LED Driver: MEANWELL
Power Factor: 0.98 CCT: 3000K-6000K
Usage: Marine, Mining, Sports Stadium, Mining Site, Etc
High Light:

5000K heavy duty led flood lights


1200w heavy duty led flood lights


IP67 marine spot flood light

IP67 stainless steel bracket high lumen intensity sports lighting marine flood light 1200w for sea fishing

5000K Heavy Duty Led Flood Lights IP67 1200w Marine Spot Marine Mining 0

Main Features
1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 1200W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. TOP chips high efficacy 130lm/w±7% with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index

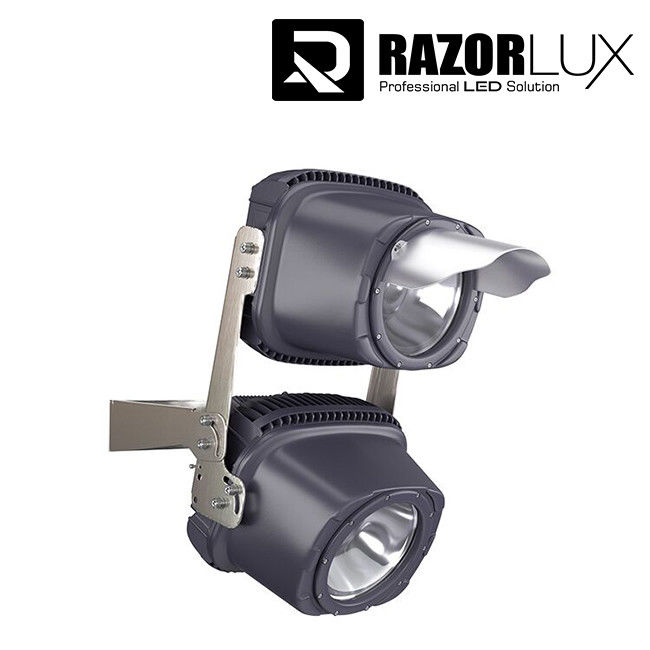

Photos of Floodlight 1200W for sea fishing:




5000K Heavy Duty Led Flood Lights IP67 1200w Marine Spot Marine Mining 3

5000K Heavy Duty Led Flood Lights IP67 1200w Marine Spot Marine Mining 5


Parameter of Razorlux Floodlight 1200W for sea fishing:


Model RGL2-1200A
Beam Angle 40° 60° 120° 140°

Stable Flux

(5700K after 1 hour)

Dimension (mm) 474*388*982
  LEDs 1120W
Power  Driver 80W
Consumption  Total 1200W
Replace HID Lamp 2200~2500W
Net Weight 30kg (66lbs)
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class

IP 65 (Upgradeable to IP 67)

IK Class

IK 10

Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 years
Driver 5 years
Housing 10 years




Lighting Distribution of Floodlight 1000W:


For Different application requirement, Razorlux Genius Series have different types of beam angles options.

at the moment we have 15° 20° 30°40° 60° 120° 140° beam angle available.


Packaging & Shipping




Genius II 1000W A Series



Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to

the delivery of products, each item will be checked and tested for several times.


Quality Control - Testing Equipments:


For every piece of Razorlux 1000 Watt LED Flood Light are tested in different procedures.

No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)

No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.

No. 3 & 4: Dark Room for testing IES files and other Photometric datas.




Quality Control - Aging Department:


For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment

to make sure of their long term and stable performances within lifetime.




Razorlux Service:



1. Before and after sales in time service 7/24

2. Professional Lighting solution, DIALux simulation available

3. Payment terms: Paypal, TT, LC, DP et

4. Shipment terms: FOB, CIF, CFR

5. Lead time: 5-7 working days

6. NO MOQ required, sample testing welcome

Trade Shows


Razorlux at Lighting Fairs:


Hong Kong International Lighting Fair (Spring Edition) 2016/2017/2018

Hong Kong International Lighting Fair (Autumn Edition) 2016/2017/2018

2015 LED Expo in Den Bosch, Netherland

2016 Strategies in Light in Las Vegas, U.S.A

2016 IIDEX in Toronto, Canada
