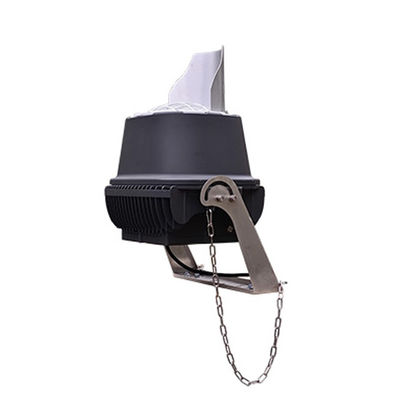

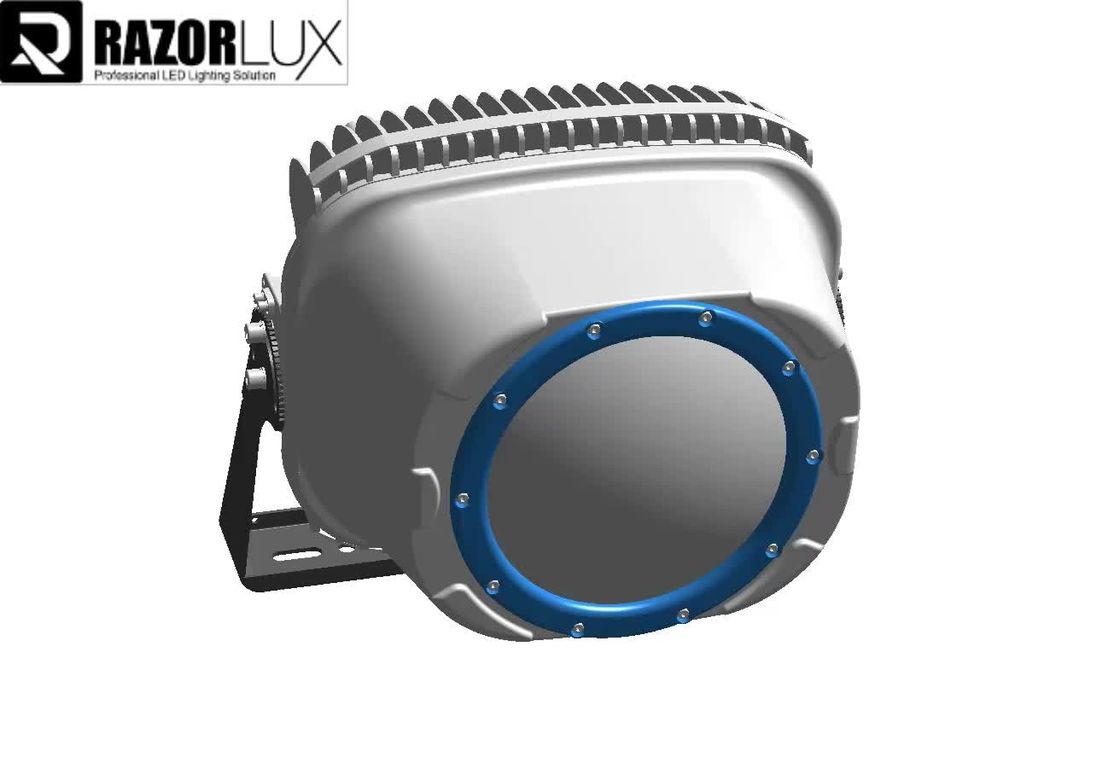

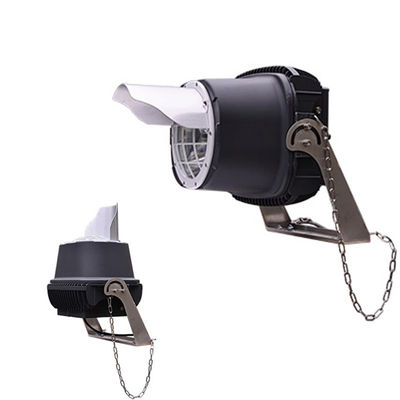

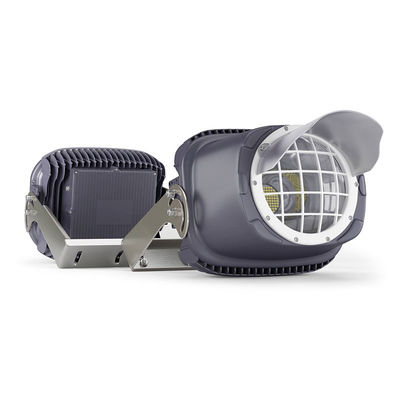

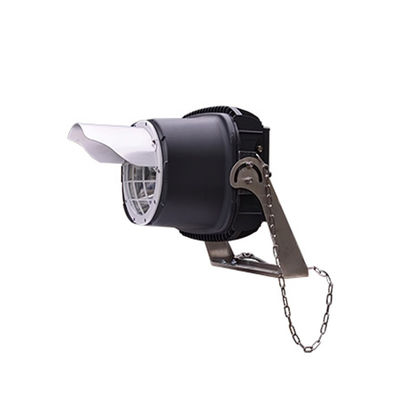

220V IP67 Waterproof Outdoor Flood Lights 200W Dimmable Led Spotlights

220V IP67 Waterproof Outdoor Flood Lights 200W Dimmable Led Spotlights

  • 220V IP67 Waterproof Outdoor Flood Lights 200W Dimmable Led Spotlights
  • 220V IP67 Waterproof Outdoor Flood Lights 200W Dimmable Led Spotlights
  • 220V IP67 Waterproof Outdoor Flood Lights 200W Dimmable Led Spotlights
  • 220V IP67 Waterproof Outdoor Flood Lights 200W Dimmable Led Spotlights
  • 220V IP67 Waterproof Outdoor Flood Lights 200W Dimmable Led Spotlights
  • 220V IP67 Waterproof Outdoor Flood Lights 200W Dimmable Led Spotlights
220V IP67 Waterproof Outdoor Flood Lights 200W Dimmable Led Spotlights
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, C-tick, EMC, LVD, RoHS, Saa, UL
Model Number: RGL2-200P
Payment & Shipping Terms:
Price: $455.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*560mm<br>3.One 20'' Container can accept 250 Units
Contact Now
All Products
LED Outdoor Flood Light (33)
Marine LED Flood Light (42)
Waterproof LED Flood Light (25)
LED Industrial Flood Light (18)
Dimmable LED Flood Light (22)
LED Stadium Lights (62)
LED Outdoor Sports Lighting (19)
LED Boat Deck Light (11)
LED High Mast Light (17)
LED Crane Light (10)
LED High Bay Lights (28)
LED Explosion Proof Light (28)
Detailed Product Description
Color Temperature(CCT): 6000K (Daylight Alert), Cool White Color Rendering Index(Ra): 120
Support Dimmer: YES Lighting Solutions Service: Lighting And Circuitry Design, DIALux Evo Layout, Agi32 Layout
Lifespan (hours): 50000 Working Time (hours): 50000
Product Weight（kg）: 15 Input Voltage(V): 80~315Vac, (347Vac Available On Request)
CRI (Ra>): 75 Beam Angle(°): 15° 20° 30°
Working Lifetime(Hour): 50000 Lamp Body Material: Aluminum Alloy
IP Rating: IP67 Application: ROAD
Light Source: LED Lamp Luminous Flux(lm): 24000, 24000lm
Working Temperature(℃): -40 To 60, -40 - 60 Warranty(Year): 5-Year
Product Name: Flood Light LED 220V 200W Lamp Luminous Efficiency(lm/w): 120
Warranty: 5Years Housiong Material: Aluminum
Working Life: 50000 IP Class: IP 65 (Upgradeable To IP 67)
LED Chip: Samsung
High Light:

IP67 waterproof outdoor flood lights

,

220V waterproof outdoor flood lights

,

200W dimmable led spotlights

Energy Saving IP67 Waterproof Flood Light LED 220V 200W for Billboard Lights

On top of the great experience that Billboard lights offer through their quality light output, they also offer great energy savings for the fields that pay to run them.

Since LED technology is so powerful and popular, it is being applied to the sports fields industry, including baseball fields and even are a popular as a batting cage lighting option. It's increasingly popular for the main reasons below.



Main Features





1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 200W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. chips high efficacy 120lm/w with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index





Parameter of Razorlux Flood Light LED 220V 200W:



Model RGL2-200P
Beam Angle 15° 20° 30°

Stable Flux

(5700K after 1 hour)

 24000lm
Dimension (mm) 466*388*487
  LEDs 180W
Power  Driver 20W
Consumption  Total 200W
Replace HID Lamp 400~600W
Net Weight 19kg with stainless steel floodlight bracket
Color Temperature 2700-6500K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum & Powder coating
Power Supply Meanwell
IP Class

IP 65 (Upgradeable to IP 67)
IK Class

IK 10
Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 110-480Vac input voltage without additional adapter
DC Input 100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 year
Driver 5 year
Housing 10 year



220V IP67 Waterproof Outdoor Flood Lights 200W Dimmable Led Spotlights 0220V IP67 Waterproof Outdoor Flood Lights 200W Dimmable Led Spotlights 1



Lighting Distribution of Razorlux Flood Light LED 220V 200W:



For Different application requirement, Razorlux Genius Series have different types of beam angles options.

at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.

 220V IP67 Waterproof Outdoor Flood Lights 200W Dimmable Led Spotlights 2



Quality Control - Testing Equipments:



For every piece of Razorlux 200 Watt LED Flood Light are tested in different procedures.

No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 140 degree)

No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.
No. 3 & 4: Dark Room for testing IES files and other Photometric datas.



 220V IP67 Waterproof Outdoor Flood Lights 200W Dimmable Led Spotlights 4



Razorlux Service:



1. Before and after sales in time service 7/24

2. Professional Lighting solution, DIALux simulation available

3. Payment terms: Paypal, TT, LC, DP etc

4. Shipment terms: FOB, CIF, CFR

5. Lead time: 5-7 working days

6. NO MOQ required, sample testing welcome



Our advantages.

  • Patented Multi-function design, suitable for all working environments.
  • Rated Power: 400W-1200W
  • Input Voltage: AC90-305, DC127-431
  • Color Temperature: 2700K-6500K
  • Lamp Efficiency: 130LM/W
  • Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
  • CRI: Ra>75
  • IP Grade: IP65/IP67
  • Bracket: Stainless Steel
  • Net Weight: 15KG
  • Warranty: 5 Years
