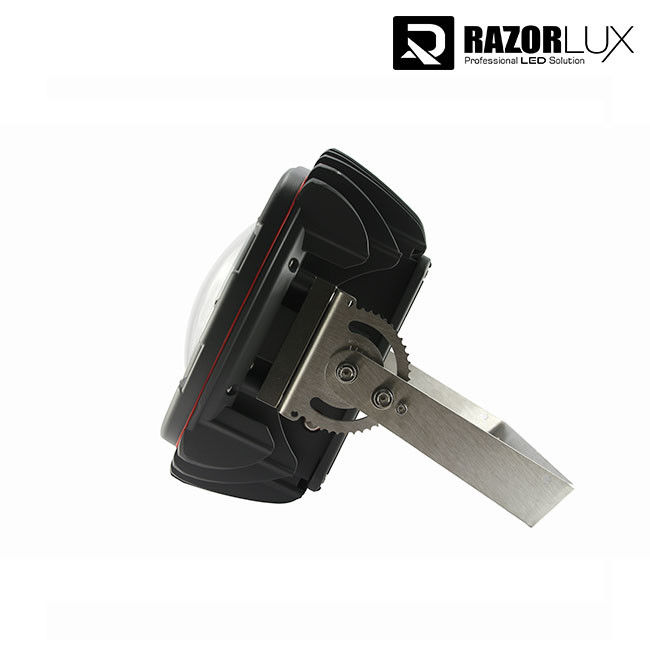

30w 5000K Billboard Led Building Light Aluminum 120lm/W

30w 5000K Billboard Led Building Light Aluminum 120lm/W

  • 30w 5000K Billboard Led Building Light Aluminum 120lm/W
30w 5000K Billboard Led Building Light Aluminum 120lm/W
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, LVD, Saa
Model Number: RGL-30A
Payment & Shipping Terms:
Price: $10.00 - $215.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):263*263*155 <br>3.One 20'' Container can accept 250 Units
Supply Ability: 5000 Piece/Pieces per Month
Contact Now
All Products
LED Outdoor Flood Light (33)
Marine LED Flood Light (42)
Waterproof LED Flood Light (25)
LED Industrial Flood Light (18)
Dimmable LED Flood Light (22)
LED Stadium Lights (62)
LED Outdoor Sports Lighting (19)
LED Boat Deck Light (11)
LED High Mast Light (17)
LED Crane Light (10)
LED High Bay Lights (28)
LED Explosion Proof Light (28)
Detailed Product Description
Color Temperature(CCT): 5000K (Daylight), Cool White Lamp Luminous Efficiency(lm/w): 120, 120
Color Rendering Index(Ra): 80 Lighting Solutions Service: Lighting And Circuitry Design, DIALux Evo Layout, Agi32 Layout
Working Time (hours): 50000 Input Voltage(V): 80 ~360Vac
CRI (Ra>): 75 Beam Angle(°): 60 /120
Working Lifetime(Hour): 50000 Lamp Body Material: Aluminum Alloy
IP Rating: IP65 Application: Theme Park, Billborad
Light Source: LED Lamp Luminous Flux(lm): 7200, 3600 Lm
Working Temperature(℃): -40 To 60, -40 - 60 Warranty(Year): 5-Year
Product Name: Led Billboard Lights Warranty: 5Years
Housiong Material: Aluminum
High Light:

30w billboard led building light

,

120lm/w led building light

,

5000K aluminum led light

Hot selling 120lm/w 60 degree 30w led billboard lights

30w 5000K Billboard Led Building Light Aluminum 120lm/W 0

Description of Commercial 30w led billboard lights:

Commercial Billboard Lighting Fixtures, Power & Light Innovations, bringing innovative high quality lighting such as LED Billboard Lighting Fixtures to highway lighting. Converting Businesses to the Highest Quality Lighting Systems. If you are looking for high power, high quality lighting solutions for your outdoorspace, check out our wide selection of LED lighting.

The perfect companion to streets, parking lots, and any other wide open area in need of a high volume of light LED roadway lighting will provide the illumination.

Our advantages:



1. Top performance LED chips, 120 lm/w system efficacy
2. Wide Power range: 30W
3. Universal input 80-360V. (DC12V 24V 48V AC347V available)
4. Patent Built-in Serge Protection.
5. Patent Built-in Thermal Protection.
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. DALI/Photocell/Microwave Motion control available.
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. World Top 500's supplier.



30w 5000K Billboard Led Building Light Aluminum 120lm/W 2

30w 5000K Billboard Led Building Light Aluminum 120lm/W 4



Model ZHGL-30A
Beam Angle 60°

Stable Flux

(5700K after 1 hour)

 3600 lm
Dimension (mm) 360x358x187mm
  LEDs 25W
Power  Driver 5W
Consumption  Total 30W
Replace HID Lamp 50-100W
Net Weight 8kg (17.6lbs)
Color Temperature 2000K - 6000K
Color Rendering ≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life ≥50000Hrs
Housing Material Aluminum
Coating Powder Coating
IP Class

IP 65 (Upgradeable to IP 67)
IK Class

IK 10
Insulation Class Class I
Working Temperature -40C ~ 60C / -40F ~ 140F
Working Humidity 10% ~ 95%
AC Input 80 ~ 315Vac, (347Vac available on request)
DC Input 80 ~ 400Vdc, (12Vdc, 24Vdc and other input available on request)
THD <10%
Power Factor ≥0.98
Warranty LED Module 5 years
Driver 5 years
Housing 10 years





Features & Specifications of 1-10V Dimmable led flood light 400Watt

  • Patented Multi-function design, suitable for all working environments.
  • Rated Power: 400W-1200W
  • Input Voltage: AC90-305, DC127-431
  • Color Temperature: 2700K-6500K
  • Lamp Efficiency: 130LM/W
  • Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
  • CRI: Ra>75
  • IP Grade: IP65/IP67
  • Bracket: Stainless Steel
  • Net Weight: 15KG
  • Warranty: 5 Years








Tag:

200W Dimmable Led Flood Light,

24000lm Dimmable Led Flood Light,

15/30 beam angle led light
