Lighting And Circuitry Design, DIALux Evo Layout, Agi32 Layout
Working Time (hours):
50000
Product Weight（kg）:
12
Input Voltage(V):
80~315Vac, (347Vac Available On Request)
CRI (Ra>):
75
Beam Angle(°):
40° 60° 120° 140°
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP67
Working Temperature(℃):
-40 To 60, -40 - 60
Warranty:
5Years
LED Chip:
SAMSUNG
High Light:
130lm/w Dimmable Led Flood Light
,
300W Dimmable Led Flood Light
,
IP67 300 watt outdoor flood light
5 Years Warranty IP67 Waterproof 300W Outdoor Billboard Lighting.
Description of 300W Outdoor Billboard Lighting:
Outdoor Billboard Lighting are one of the indispensable parts for game play – a good flood lighting system invigorates the baseball game and enhance the performance of the players. We offer the best LED lights for baseball field that save 80% energy after replacing the metal halide, mercury, halogen or HPS lamps, from 400 watt, 1000 watt to 1500 watt.
Our exclusive thermal management system help reduce the junction temperature of LED chips and thus extend the life span of the lights to 80000 hours. Our product is also suitable for outdoor sports field or indoor batting cage. In 2019, we upgrade the baseball field lighting design, so the anti-glare ability is enhanced by 30%. Despite the upgrade, the cost of baseball field lighting remains the same.
Main Features
1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 300W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. TOP chips high efficacy 130lm/w±7% with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index

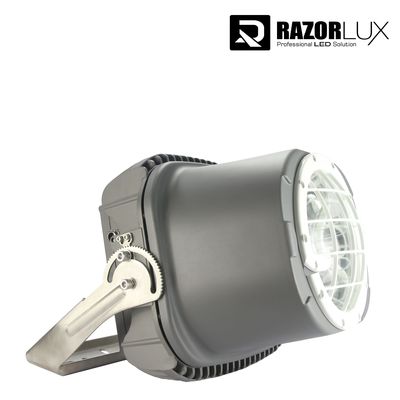

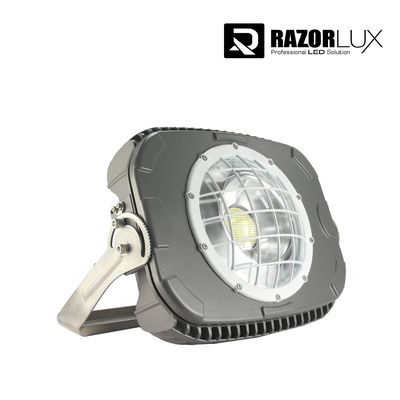

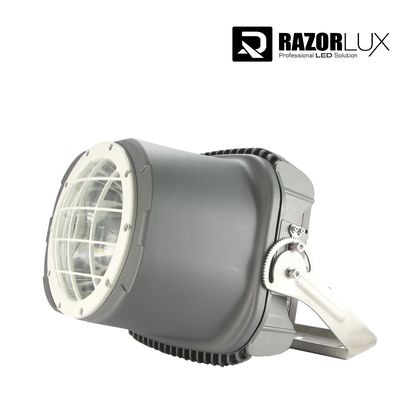

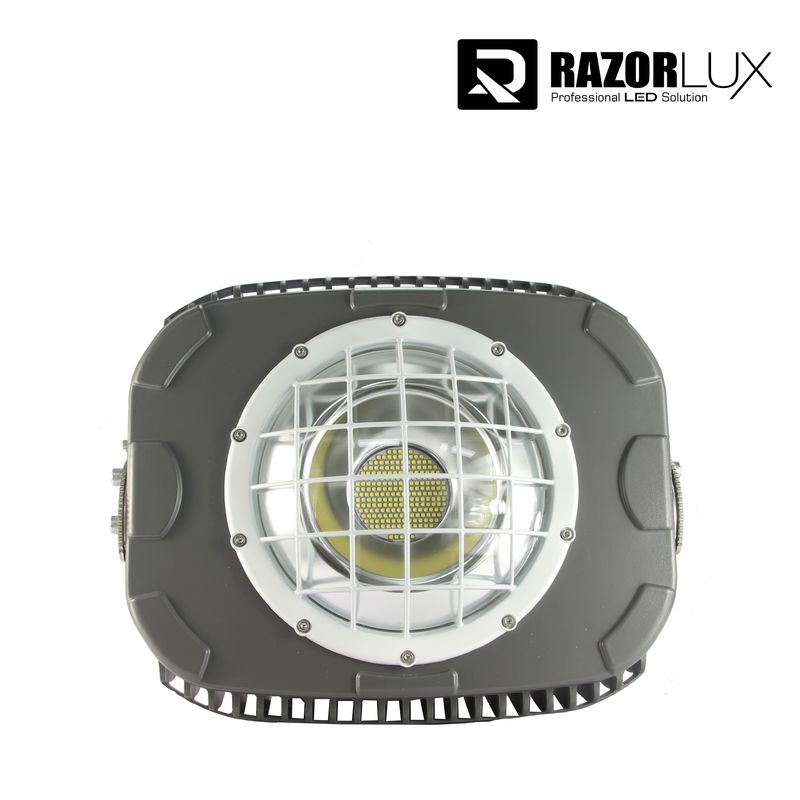

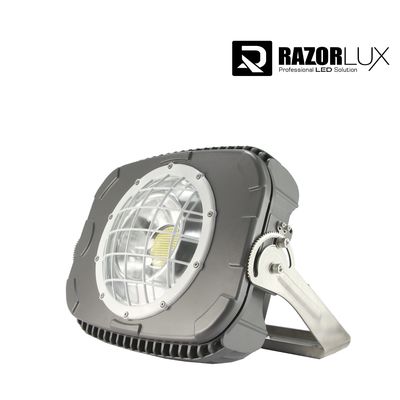

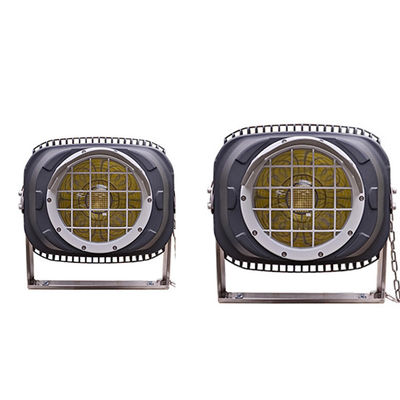

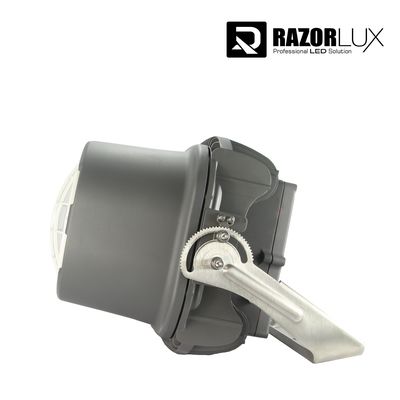

Photos of Outdoor Billboard Lighting:
Parameter of Razorlux Outdoor Billboard Lighting:
Model
RGL2-300A
Beam Angle
40° 60° 120° 140°
Stable Flux
(5700K after 1 hour)
39000lm
Dimension (mm)
468*388*367
LEDs
270W
Power
Driver
30W
Consumption
Total
300W
Replace HID Lamp
600~800W
Net Weight
15kg with stainless steel floodlight bracket
Color Temperature
2700-6500K
Color Rendering
≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life
≥50000Hrs
Housing Material
Aluminum & Powder coating
Power Supply
Meanwell
IP Class
IP 65 (Upgradeable to IP 67)
IK Class
IK 10
Insulation Class
Class I
Working Temperature
-40C ~ 60C / -40F ~ 140F
Working Humidity
10% ~ 95%
AC Input
110-480Vac input voltage without additional adapter
DC Input
100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD
<10%
Power Factor
≥0.98
Warranty
LED Module
5 year
Driver
5 year
Housing
10 year
Lighting Distribution of Razorlux Outdoor Billboard Lighting:
For Different application requirement, Razorlux Genius Series have different types of beam angles options.
at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.
Certificates of Razorlux:
1. UL Certificate No.: 20141114-E471702
2. TUV-EMC Certificate No. :E8A 16 11 76176 008
3. TUV-LVD Certificate No.: N8A 16 10 76176 005
4. LM-79 Testing Report No. :20141114-E471702
5. SAA Certificate No.: SAA132163
6. RoHs Certificate No.: LCGCll110284 (Issued on JuI.10, 2012)
7. For DLC, please check in website: www.designlights.org/search/#/results, search by keyword "Razorlux" for more details.
Model
G.W
Genius II 300W A Series
15KGS
Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to
the delivery of products, each item will be checked and tested for several times.
Quality Control - Testing Equipments:
For every piece of Razorlux 300 Watt LED Flood Light are tested in different procedures.
No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree)
No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.
No. 3 & 4: Dark Room for testing IES files and other Photometric datas.
Quality Control - Aging Department:
For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment
to make sure of their long term and stable performances within lifetime.
Razorlux Service:
1. Before and after sales in time service 7/24
2. Professional Lighting solution, DIALux simulation available
3. Payment terms: Paypal, TT, LC, DP etc
4. Shipment terms: FOB, CIF, CFR
5. Lead time: 5-7 working days
6. NO MOQ required, sample testing welcome
Trade Shows
Razorlux at Lighting Fairs:
Hong Kong International Lighting Fair (Spring Edition) 2016/2017/2018
Hong Kong International Lighting Fair (Autumn Edition) 2016/2017/2018
2015 LED Expo in Den Bosch, Netherland
2016 Strategies in Light in Las Vegas, U.S.A
2016 IIDEX in Toronto, Canada
FAQ:
Where can floodlights be used?
Floodlights are used in range of settings but are mainly used as outdoor lighting fixtures. They are used for domestic and business security, to highlight building architecture or landscapes, in retail to highlight the sign or name of the company and to light up the field, court and surrounding area at sporting venues and car parks
Can LED floodlights be controlled with a timer?
Yes. They are perfect for time-control.
Can you buy floodlights with sensors?
Yes. With PIR (Passive Infrared) sensor options, you would have a switch as an override to give you the best of both worlds!
What is the wattage of LED floodlights?
Our range is broad – from 10W, which is equivalent to a 150W halogen, 30W for standard 250W halogen up to 270W for heavy-duty areas.
Can you point LED floodlights in different directions?
Our LED floodlight range includes those that are adjustable vertically. With the versions with sensors, you can adjust the PIR independently – up/down, left and right. You can also adjust the PIR for time on, daylight level and sensor sensitivity.
