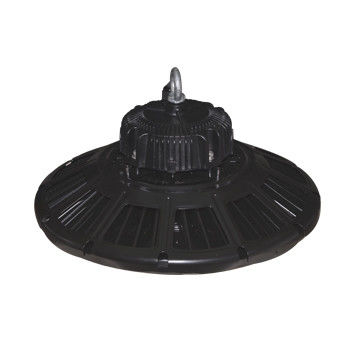

Pavilion Led High Bay Lights

Pavilion Led High Bay Lights
Pavilion Led High Bay Lights

Large Image :  Pavilion Led High Bay Lights

Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, EMC, RoHS
Model Number: RHB-150A
Payment & Shipping Terms:
Price: $10.00 - $82.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):263*263*155 <br>3.One 20'' Container can accept 250 Units
Supply Ability: 5000 Piece/Pieces per Month
Detailed Product Description
Color Temperature(CCT): 2800-6500K Lamp Luminous Efficiency(lm/w): 120
Color Rendering Index(Ra): 75 Lighting Solutions Service: Lighting And Circuitry Design, DIALux Evo Layout, Agi32 Layout
Lifespan (hours): 50000 Working Time (hours): 50000
Product Weight(kg): 5.7 Input Voltage(V): AC 85-265V
Lamp Luminous Flux(lm): 18000 Lm
High Light:

18000 lm Led High Bay Lights

,

pavilion Led High Bay Lights

,

150w energy efficient high bay lighting

Warehouse High Luminous industry Exhibition pavilion led high bay light ufo 150w for industry


Feature: Curving heat sink and exterior Meanwell driver for outstanding heat dissipation and easy maintenance.

Lumileds Lumileds and Samsung LEDs with more than 120lm/w system efficiency.

Model No.: RHB-100A, RHB-150A, RHB-200A

Rated Power:100W, 150W, 200W

Input Voltage: AC100-277V

Color Temperature:3000-6500K

Lamp Efficiency: 120lm/w

Beam Angle: 60°,90°,110°

CRI: Ra>80 IP Grade: IP65



Why Choose Us



1.For Different application requirement, Razorlux Genius Series have different types of beam angles options.at the moment we have 60° 120° 140° beam angle available.

2.Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to the delivery of products, each item will be checked and tested for several times.

3.For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment to make sure of their long term and stable performances within lifetime.



High bay LED lights provide clear, uniform illumination of what is below it with little glare.

Different kinds of reflectors can accomplish different kinds of lighting results, also.

Aluminum reflectors make light from the fixtures flow directly down to the floor,

while prismatic reflectors create a more diffused lighting useful for illuminating shelves and other elevated objects in a space.



Model RHB-100A RHB-150A RHB-200A
Size Φ280*185mm Φ340*187mm Φ400*196mm
Rated Power 100W 150W 200W
Working Voltage AC85-265V 50-60Hz
LED Quantity 140PCS, SMD3030 210PCS, SMD3030 294PCS, SMD3030
Color Temperature 2800-3000k, 3000-3200k, 4000-4500k, 5000-5500k, 6000-6500K
Luminous Flux 12000LM 18000 lm 24000 lm
CRI >75
Materials PC+Aluminum
Beam Angle 60°, 90°, 120°
IP Grade IP65
Package 3.5kg/1pcs/Carton 4.8kg/1pcs/Carton 6.5kg/1pcs/Carton
Net Weight 2.8kg/pcs 3.5kg 5.5kg/pcs
Power Factor 0.95
Insulation Class Class I
Warranty 5 years
Pavilion Led High Bay Lights 0
