IP68 Reflector Led Flood Light 100w

China Xi'an Razorlux Optoelectronic Technology Co., Ltd. certification
China Xi'an Razorlux Optoelectronic Technology Co., Ltd. certification
I'm Online Chat Now

IP68 Reflector Led Flood Light 100w

IP68 Reflector Led Flood Light 100w
IP68 Reflector Led Flood Light 100w

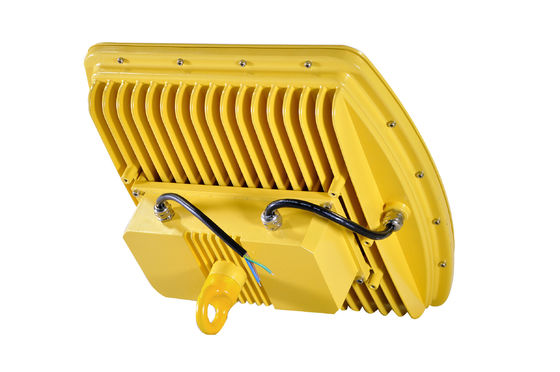

Large Image :  IP68 Reflector Led Flood Light 100w

Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, C-tick, PSE, RoHS, Saa
Model Number: R EP-J-100
Payment & Shipping Terms:
Price: $200.00 - $255.00/Pieces
Packaging Details: Delivery term: FOB Tianjin/Shanghai, EX-Work, CFR, CIF <br>3-5 days for samples after payment
Supply Ability: 3000 Piece/Pieces per Month
Detailed Product Description
Product Name: Explosion Proof Cover 100w Waterpoof Led Outdoor Reflector Floodlights Application: Gas Station
Warranty: 5 Years Material: Die Cast Aluminum
Power: 100W Driver: MeanWell Driver
Housing: Explosion Proof Aluminum Housing Items: Moistureproof Dustproof Led Tri-proof Light
Port: Tianjin/Shanghai/Shenzhen
High Light:

ADC12 reflector led flood light 100w


IP68 reflector led flood light 100w


Moistureproof explosion proof floodlight

Safe Waterproof corrosion resistant 5 years warranty 100w Construction site work led explosion proof light
1. High Efficacy low decay 700MA LED chip
2. High heat transmit die cast housing ADC12 aluminum, patent design, IP68
3. Shock and vibration resistant tempered glass, super clear 95% light transmit rate
4. Anti-glare.Scientific optical reflector design, making the light more focus,even, comfortable for eyes
5. Original Bridgelux LED source,high luminous efficacy and long lifespan
6. MEANWELL HLG series driver, the highest level of MEANWELL driver
7. Surface treatment-Powder painted, salt resistant and chemical resistant, also hard for dust to accumulate on the surface
8. 2.0mm aluminum PCB with heat index 2.5, keep LED working under cool temperature
9. Working temperature: -30ºC to 50ºC.
1. Suitable for gas station, petroleum and chemical industries, coal mine, military, airport, warehouse, marine etc.
2. Zone1 & Zone2 gaseous environment, and Zone21 & Zone22 dust environment.
3. Class I Division 2 Group A, B, C, D

Long Lifespan & Better Design

50000 Hour Life with fully-sealed & vibration & resistant aluminum alloy housing which is designed for better safety & cooling & stable quality

to prevent the release of sparks and ensure long life performance! Moreover IP66 waterproof rating will provide full protection for dust and moisture area.

Instand on with Easy Installation (3/4" NPT or Bracket), NO humming & NO UV or IR in the beam, green and eco-friendly,

you will love this new product immediately!


Hazardous Location Area Lights consumes 50% less energy than traditional HID fixtures and provides years of high-quality,

maintenance-free illumination for Class I Division 2 applications. Engineered for maximum durability in harsh and hazardous locations,

the flood light is marine-grade and able to operate in temperatures of up to 60°C.

The fixture can be ceiling or wall mounted to address a variety of area lighting needs. A 2-3/8" tennon adaptor is also available.


Hazardous area/explosion proof fixtures are extra durable fixtures designed specifically for the toughest environments.

Hazardous Area/Explosion Proof Lighting from delivers superior illumination in the most extreme environments.

TOTAL POWER 30w 100w 185w
Replace HPS 150w 300-350w 700-1000w
Dimension 200*200*270mm 300*300*175mm 400*400*185
Weight 4KG 7.5KG 12KG
Reflector/ wide angle 120 wide angle wide angle
Nominal lumens 3480lm 11600lm 20880lm
Driver Current 350mA
# OF LEDS 24 84 156
System Efficacy 116 LM/W
Light Color option 5700/4000/2700K
Materia Die Cast Aluminum
Wide AC input 90-305 VAC
Power Factor 0.98
Total Harmonic Distortion < 10%
Surge protection IEC/EN 61000-4-5
Operation temp -30 ºC to +50 ºC
IP class 68
Rated Life 100,000+ hrs
Warranty 5 years

1. UL TUV CB EMC CE certified MW
HLG series power driver, IP67 protective level, 7 years warranty.

2. The integration of reflective optical design,install directly in the light body,
make the light more focus and comfortable for eyes.

3. High pressure die casting alloy aluminum housing, create through high pressure(1600
ton) in one piece,high explosion proof level and IP68 waterproof protection.

4. LED chip with 2.0mm thick Aluminum PCB board installed directly onto Aluminum Shell. As a result,
the whole lamp is integrated as a radiator for the LED chips. Besides,the distance of LEDS are good
enough for spreading heat, to ensure long lifespan, and with special circuit design, each LED chip
won’t affect the others when fail to work, so the lamp will keep working even if some LED chips stopped.
