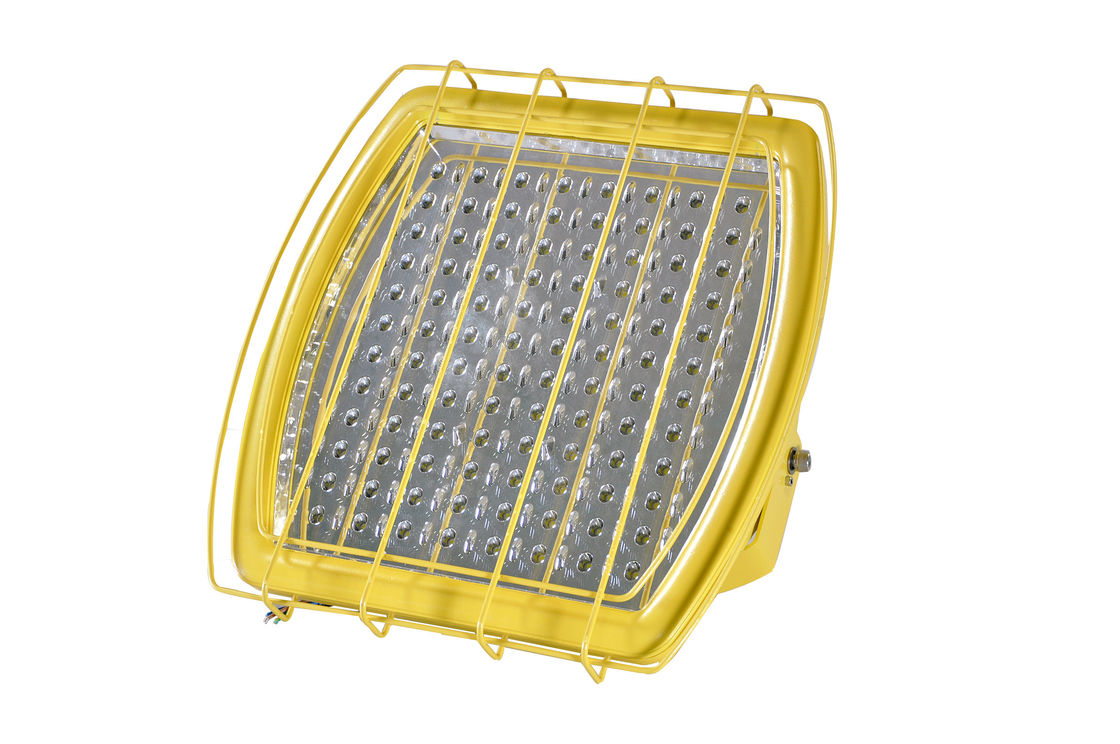

305V 100w Led Explosion Proof Light Aluminum Paint Booth Lighting Design

305V 100w Led Explosion Proof Light Aluminum Paint Booth Lighting Design

  • 305V 100w Led Explosion Proof Light Aluminum Paint Booth Lighting Design
305V 100w Led Explosion Proof Light Aluminum Paint Booth Lighting Design
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, C-tick, PSE, RoHS, Saa
Model Number: R EP-J-100
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: $10.00 - $500.00/Pieces
Packaging Details: Delivery term: FOB Tianjin/Shanghai, EX-Work, CFR, CIF <br>3-5 days for samples after payment
Supply Ability: 3000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Color Temperature(CCT): 5000K (Daylight), Cool White Input Voltage(V): 90-305 VAC
Warranty(Year): 5-Year Lighting Solutions Service: Lighting And Circuitry Design, DIALux Evo Layout
CRI (Ra>): 75 Product Name: High Quality 100w Explosion Proof Led Flood Light
Material: Aluminum Alloy Driver: MeanWell Driver
Housing: Explosion Proof Aluminum Housing Port: Tianjin/Shanghai/Shenzhen
High Light:

305V Led Explosion Proof Light


100w Led Explosion Proof Light.


Aluminum paint booth lighting design

5 years warranty IP65 120lm/w 60 degree 270w LED projector light

1.High Efficacy low decay 700MA LED chip.
2.High heat transmit die-cast housing ADC12 aluminum, patent design, IP68.
3.Shock and vibration resistant tempered glass, super clear 95% light transmit rate.
4.Anti-glare.Scientific optical reflector design, making the light more focus, even, comfortable for eyes 5.Original Bridgelux LED source, high luminous efficacy and long lifespan.
6.MEANWELL HLG series driver, the highest level of MEANWELL driver.
7.Surface treatment-Powder painted, salt resistant and chemical resistant, also hard for dust to accumulate on the surface.
8.2.0mm aluminum PCB with heat index 2.5, keep LED working under cool temperature.
9.Working temperature: -30ºC to 50ºC.


This light is universal voltage capable and can be operated with 100-277 VAC, 50/60Hz.

We also offer a low voltage version of this LED fixture that operates on AC/DC voltages from 11-25 Volts.

This explosion proof LED light fixture is IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion.

The cast aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts.

The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LEDs and electronics.

TOTAL POWER 30w 100w 185w
Replace HPS 150w 300-350w 700-1000w
Dimension 200*200*270mm 300*300*175mm 400*400*185
Weight 4KG 7.5KG 12KG
Reflector/ wide angle 120 wide angle wide angle
Nominal lumens 3480lm 11600lm 20880lm
Driver Current 350mA
# OF LEDS 24 84 156
System Efficacy 116 LM/W
Light Color option 5700/4000/2700K
Materia Die Cast Aluminum
Wide AC input 90-305 VAC
Power Factor 0.98
Total Harmonic Distortion < 10%
Surge protection IEC/EN 61000-4-5
Operation temp -30 ºC to +50 ºC
IP class 68
Rated Life 100,000+ hrs
Warranty 5 years


1. UL TUV CB EMC CE certified MW
HLG series power driver, IP67 protective level, 7 years warranty.

2. The integration of reflective optical design,install directly in the light body,
make the light more focus and comfortable for eyes.

3. High pressure die casting alloy aluminum housing, create through high pressure(1600
ton) in one piece,high explosion proof level and IP68 waterproof protection.

4. LED chip with 2.0mm thick Aluminum PCB board installed directly onto Aluminum Shell. As a result,
the whole lamp is integrated as a radiator for the LED chips. Besides,the distance of LEDS are good
enough for spreading heat, to ensure long lifespan, and with special circuit design, each LED chip
won’t affect the others when fail to work, so the lamp will keep working even if some LED chips stopped.

305V 100w Led Explosion Proof Light Aluminum Paint Booth Lighting Design 0
