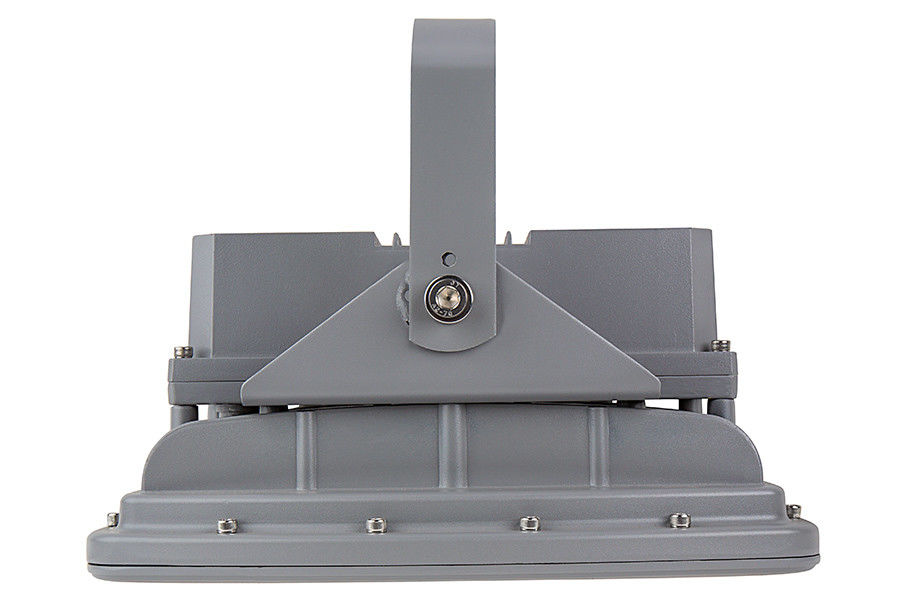

3480lm Led Explosion Proof Light 40W 116 Lm W Corrosion Proof Led Lights

Product Details:

Place of Origin:	Shaanxi, China
Brand Name:	Razorlux
Certification:	ce, C-tick, EMC, LVD, PSE, RoHS, Saa
Model Number:	R EP-J-40

Payment & Shipping Terms:

Price:	$80.00 - $120.00/Pieces
Packaging Details:	Delivery term: FOB Tianjin/Shanghai, EX-Work, CFR, CIF <br>3-5 days for samples after payment
Supply Ability:	1000 Piece/Pieces per Week

Contact Now

All Products

LED Outdoor Flood Light (33)

Marine LED Flood Light (42)

Waterproof LED Flood Light (25)

LED Industrial Flood Light (18)

Dimmable LED Flood Light (22)

LED Stadium Lights (62)

LED Outdoor Sports Lighting (19)

LED Boat Deck Light (11)

LED High Mast Light (17)

LED Crane Light (10)

LED High Bay Lights (28)

LED Explosion Proof Light (28)

Detailed Product Description

Lamp Luminous Efficiency(lm/w):	116, 116(lm/w)	Warranty(Year):	5-Year
Support Dimmer:	YES	Lighting Solutions Service:	Lighting And Circuitry Design, DIALux Evo Layout, Agi32 Layout
Lifespan (hours):	100,000	Working Time (hours):	100,000
Product Weight（kg）:	7.5	Lamp Luminous Flux(lm):	3480lm
Product Name:	IP68 Waterproof And Corrosion-resistant Safety Factor 2 Major Certificate Certification 40w Explosion Proof Light Led	Power:	40W
High Light:	3480lm Led Explosion Proof Light , 116 lm w Led Explosion Proof Light , 40W corrosion proof led lights

IP68 waterproof and corrosion-resistant safety factor 2 major certificate certification 40w explosion proof light led

FEATURES:

1. High Efficacy low decay 700MA LED chip
2. High heat transmit die cast housing ADC12 aluminum, patent design, IP68
3. Shock and vibration resistant tempered glass, super clear 95% light transmit rate
4. Anti-glare.Scientific optical reflector design, making the light more focus,even, comfortable for eyes
5. Original Bridgelux LED source,high luminous efficacy and long lifespan
6. MEANWELL HLG series driver, the highest level of MEANWELL driver
7. Surface treatment-Powder painted, salt resistant and chemical resistant, also hard for dust to accumulate on the surface
8. 2.0mm aluminum PCB with heat index 2.5, keep LED working under cool temperature
9. Working temperature: -30ºC to 50ºC.

Long Lifespan & Better Design

50000 Hour Life with fully-sealed & vibration & resistant aluminum alloy housing which is designed for better safety & cooling & stable quality

to prevent the release of sparks and ensure long life performance! Moreover IP66 waterproof rating will provide full protection for dust and moisture area.

Instand on with Easy Installation (3/4" NPT or Bracket), NO humming & NO UV or IR in the beam, green and eco-friendly,

you will love this new product immediately!

The explosion proof LED light fixture features multiple LED drivers which helps to increase the operational life of the fixture.

With traditional LED lights, in the event an LED array or driver fails, the entire fixture no longer illuminates.

This new series of LED lamps contains twelve individual LED boards configured in a series of banks.

Each bank contains two LED boards with an individual driver.

In the event of a driver failure, only one bank of LEDs will be effected while the other banks will continue to operate.

In the event that of an LED failure, the mating LED will continue to operate.

ITEM NO.	RLEP-J40	RLEP-J100	RLEP-J200
TOTAL POWER	30w	100w	185w
Replace HPS	150w	300-350w	700-1000w
Dimension	200200270mm	300300175mm	400400185
Weight	4KG	7.5KG	12KG
Reflector/ wide angle	120	wide angle	wide angle
Nominal lumens	3480lm	11600lm	20880lm
Driver Current	350mA
# OF LEDS	24	84	156
System Efficacy	116 LM/W
Light Color option	5700/4000/2700K
Materia	Die Cast Aluminum
Wide AC input	90-305 VAC
Power Factor	0.98
Total Harmonic Distortion	< 10%
Surge protection	IEC/EN 61000-4-5
Operation temp	-30 ºC to +50 ºC
IP class	68
Rated Life	100,000+ hrs
Warranty	5 years
Certificate	ROHS CE DLC ATEX SAA PSE C-TICK

1. UL TUV CB EMC CE certified MW
HLG series power driver, IP67 protective level, 7 years warranty.

2. The integration of reflective optical design,install directly in the light body,
make the light more focus and comfortable for eyes.

3. High pressure die casting alloy aluminum housing, create through high pressure(1600
ton) in one piece,high explosion proof level and IP68 waterproof protection.

4. LED chip with 2.0mm thick Aluminum PCB board installed directly onto Aluminum Shell. As a result,
the whole lamp is integrated as a radiator for the LED chips. Besides,the distance of LEDS are good
enough for spreading heat, to ensure long lifespan, and with special circuit design, each LED chip
won’t affect the others when fail to work, so the lamp will keep working even if some LED chips stopped.
