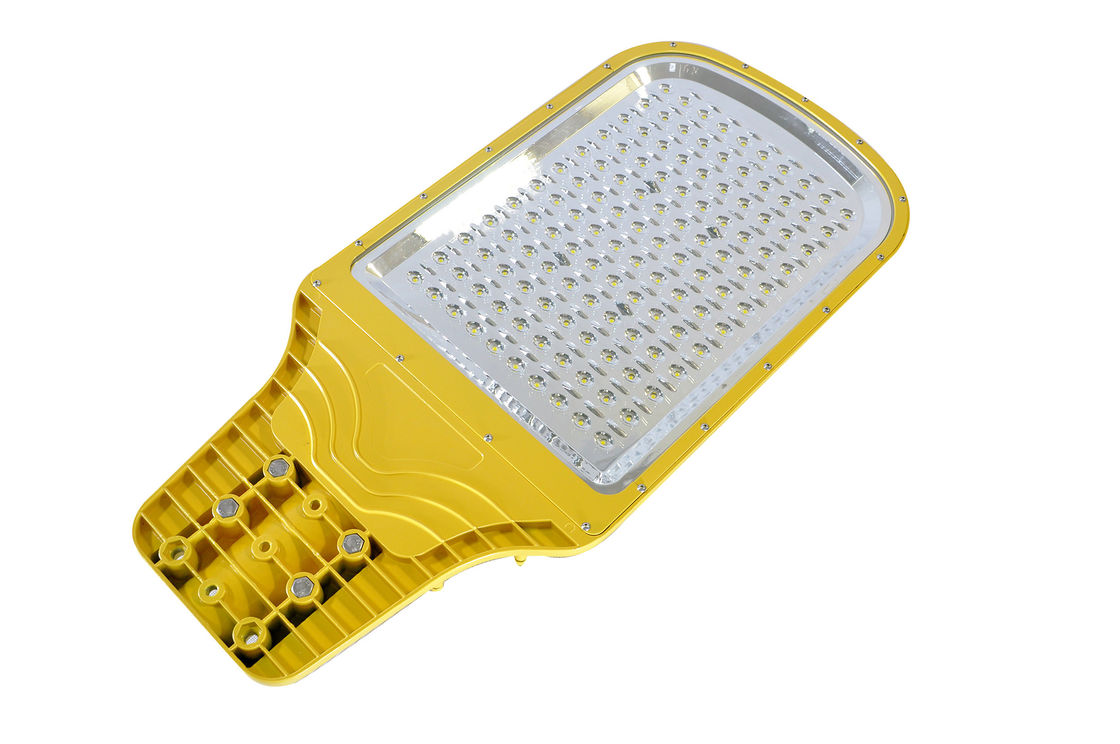

Construction Emergency Led Explosion Proof Light 80w 8000lm Paint Booth Light

Construction Emergency Led Explosion Proof Light 80w 8000lm Paint Booth Light

  • Construction Emergency Led Explosion Proof Light 80w 8000lm Paint Booth Light
Construction Emergency Led Explosion Proof Light 80w 8000lm Paint Booth Light
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, C-tick, PSE, RoHS, Saa
Model Number: R EP-L-80
Payment & Shipping Terms:
Price: $200.00 - $240.00/Pieces
Packaging Details: Delivery term: FOB Tianjin/Shanghai, EX-Work, CFR, CIF <br>3-5 days for samples after payment
Supply Ability: 1000 Piece/Pieces per Week
Contact Now
Detailed Product Description
Product Weight(kg): 11 Lamp Luminous Flux(lm): 8000lm
Product Name: Anti-corrosion Construction Site Paint Booth And Emergency Use 80w Explosion Proof Pole Installed Led Street Type Light Power: 80W
Material: Die Cast Aluminum DRIVE CURRENT: 350 MA
Power Factor: 0.98 Warranty: 5 Years
Application: Gas Station/chemical Industries/airport/warehouse/marine Port: TIAN JIN
High Light:

80w Led Explosion Proof Light

,

construction emergency Led Explosion Proof Light

,

8000lm paint booth light

Anti-corrosion construction site paint booth and emergency use 80w explosion proof pole installed led street type light

FEATURES:
1.High Efficacy low decay 700MA LED chip
2.High heat transmit die cast housing ADC12 aluminum, patent design, IP68
3.Shock and vibration resistant tempered glass, super clear 95% light transmit rate
4.Anti-glare.Scientific optical reflector design, making the light more focus,even, comfortable for eyes
5.Original Bridgelux LED source,high luminous efficacy and long lifespan
6.MEANWELL HLG series driver, the highest level of MEANWELL driver
7.Surface treatment-Powder painted, salt resistant and chemical resistant, also hard for dust to accumulate on the surface
8.2.0mm aluminum PCB with heat index 2.5, keep LED working under cool temperature
9.Working temperature: -30ºC to 50ºC.

Application:
1. Suitable for gas station, petroleum and chemical industries, coal mine, military, airport, warehouse, marine etc.
2. Zone1 & Zone2 gaseous environment, and Zone21 & Zone22 dust environment.
3. Class I Division 2 Group A, B, C, D


The Incoplas LED Hybrid is a durable multi-purpose and corrosion-resistant LED lighting solution that can be used in heavy industrial applications where hazardous location lighting is required.

This fixture can replace 100W and 250W metal halide lamps.

The Hybrid uses thermally conductive engineered polymers to extract heat away from the light source and its natural convection allows for maximum thermal performance while minimizing energy costs.



ITEM NO.
RLEP-J40
RLEP-J100
RLEP-J200
TOTAL POWER
30w
100w
185w
Replace HPS
150w
300-350w
700-1000w
Dimension
200*200*270mm
300*300*175mm
400*400*185
Weight
4KG
7.5KG
12KG
Reflector/ wide angle
120
wide angle
wide angle
Nominal lumens
3480lm
11600lm
20880lm
Driver Current
350mA
# OF LEDS
24
84
156
System Efficacy
116 LM/W
Light Color option
5700/4000/2700K
Materia
Die Cast Aluminum
Wide AC input
90-305 VAC
Power Factor
0.98
Total Harmonic Distortion
< 10%



Surge protection
IEC/EN 61000-4-5
Operation temp
-30 ºC to +50 ºC
IP class
68
Rated Life
100,000+ hrs
Warranty
5 years
Certificate
ROHS CE DLC ATEX SAA PSE C-TICK
