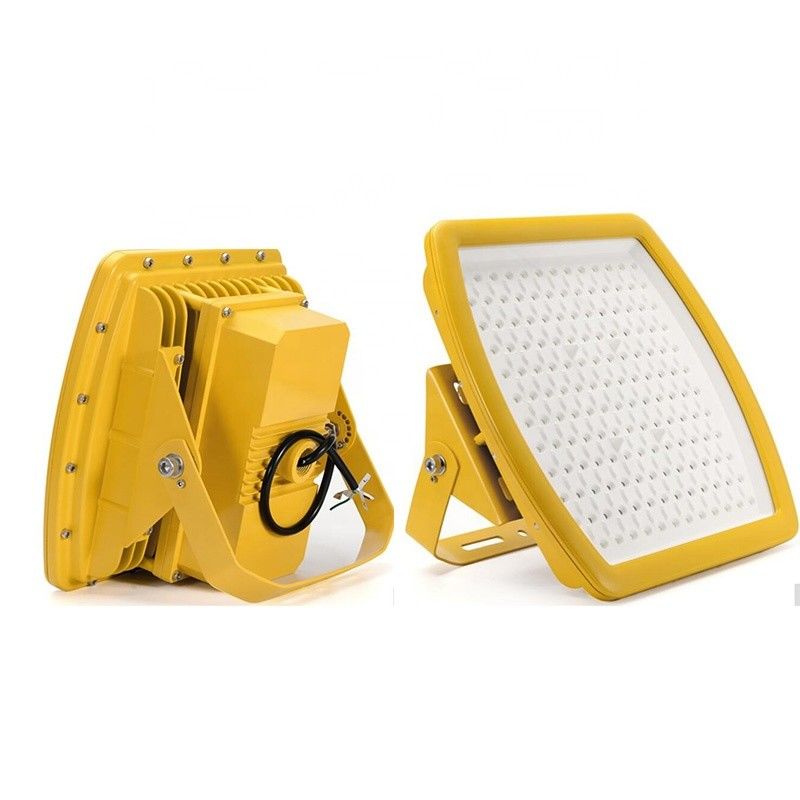

11600lm Explosion Proof Emergency Light Led 100w MeanWell Driver

1.High Efficacy low decay 700MA LED chip.
2.High heat transmit die-cast housing ADC12 aluminum, patent design, IP68.
3.Shock and vibration resistant tempered glass, super clear 95% light transmit rate.
4.Anti-glare.Scientific optical reflector design, making the light more focus, even, comfortable for eyes 5.Original Bridgelux LED source, high luminous efficacy and long lifespan.
6.MEANWELL HLG series driver, the highest level of MEANWELL driver.
7.Surface treatment-Powder painted, salt resistant and chemical resistant, also hard for dust to accumulate on the surface.
8.2.0mm aluminum PCB with heat index 2.5, keep LED working under cool temperature.
9.Working temperature: -30ºC to 50ºC.



EPL series LED Explosion Proof Light improves the task lighting of tough work environments where hazardous gases or fumes are present.

Heavy duty exterior is sealed to prevent sparks from internal components, protecting against the conditions of chemical plants, refineries, airplane hangers, and auto shops.

Powder coated aluminum and tempered glass construction is lightweight for easy installation, yet durable for corrosion and impact resistance.

High powered LEDs illuminate longer, brighter, and safer than 250-watt metal halide, reducing energy and maintenance costs.

Install with conduit to maintain safety certification, either direct pole mount or with included U-bracket.



ITEM NO.	RLEP-J40	RLEP-J100	RLEP-J200
TOTAL POWER	30w	100w	185w
Replace HPS	150w	300-350w	700-1000w
Dimension	200*200*270mm	300*300*175mm	400*400*185
Weight	4KG	7.5KG	12KG
Reflector/ wide angle	120	wide angle	wide angle
Nominal lumens	3480lm	11600lm	20880lm
Driver Current	350mA
# OF LEDS	24	84	156
System Efficacy	116 LM/W
Light Color option	5700/4000/2700K
Materia	Die Cast Aluminum
Wide AC input	90-305 VAC
Power Factor	0.98
Total Harmonic Distortion	< 10%
Surge protection	IEC/EN 61000-4-5
Operation temp	-30 ºC to +50 ºC
IP class	68
Rated Life	100,000+ hrs
Warranty	5 years
Certificate	ROHS CE DLC ATEX SAA PSE C-TICK



1. UL TUV CB EMC CE certified MW
HLG series power driver, IP67
protective level, 7 years warranty.

2. The integration of reflective optical
design,install directly in the light body,
make the light more focus and
comfortable for eyes.

3. High pressure die casting alloy aluminum
housing, create through high pressure(1600
ton) in one piece,high explosion proof level
and IP68 waterproof protection.

4. LED chip with 2.0mm thick Aluminum PCB board
installed directly onto Aluminum Shell. As a result,
the whole lamp is integrated as a radiator for the
LED chips. Besides,the distance of LEDS are good
enough for spreading heat, to ensure long lifespan,
and with special circuit design, each LED chip
won’t affect the others when fail to work, so the
lamp will keep working even if some LED chips
stopped.
