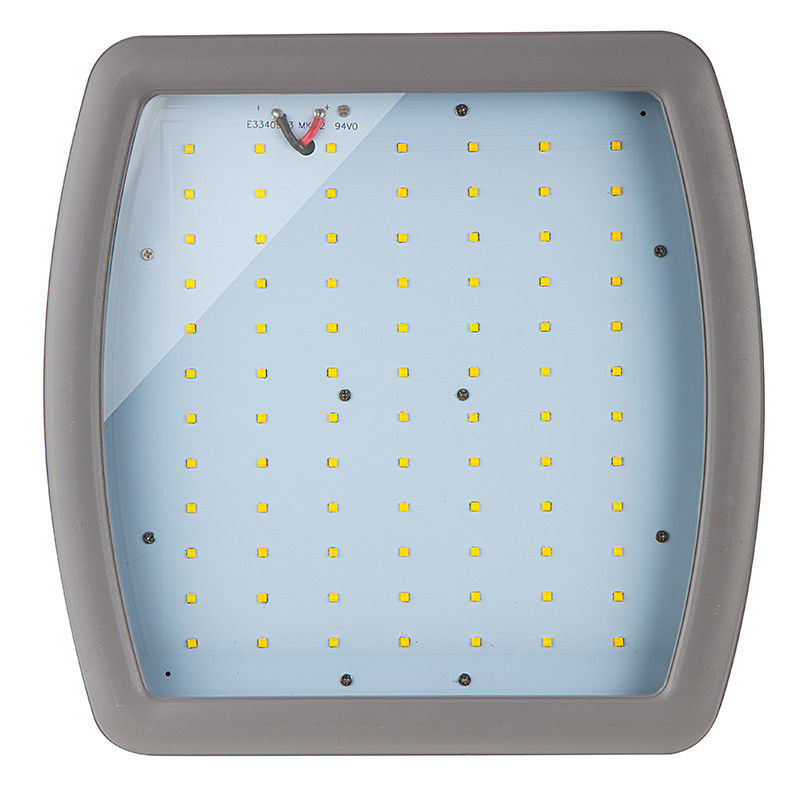

Obstruction IP68 Explosion Proof Led Lamp Portable 185w 90V

Obstruction IP68 Explosion Proof Led Lamp Portable 185w 90V

  • Obstruction IP68 Explosion Proof Led Lamp Portable 185w 90V
Obstruction IP68 Explosion Proof Led Lamp Portable 185w 90V
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, C-tick, PSE, RoHS, Saa
Model Number: R EP-J-200
Payment & Shipping Terms:
Price: $300.00 - $400.00/Pieces
Packaging Details: Delivery term: FOB Tianjin/Shanghai, EX-Work, CFR, CIF <br>3-5 days for samples after payment
Supply Ability: 1000 Piece/Pieces per Week
Contact Now
All Products
LED Outdoor Flood Light (33)
Marine LED Flood Light (42)
Waterproof LED Flood Light (25)
LED Industrial Flood Light (18)
Dimmable LED Flood Light (22)
LED Stadium Lights (62)
LED Outdoor Sports Lighting (19)
LED Boat Deck Light (11)
LED High Mast Light (17)
LED Crane Light (10)
LED High Bay Lights (28)
LED Explosion Proof Light (28)
Detailed Product Description
Color Temperature(CCT): 5700/4000/2700K, Cool White Input Voltage(V): 90-305 VAC
Lamp Luminous Flux(lm): 20880lm IP Rating: IP68
Working Temperature(℃): -30 - 50 Product Name: 185w Explosion Proof LED Lights
Power: 185W Warranty: 5 Years
Application: Gas Station/chemical Industries/airport/warehouse/marine Port: TIAN JIN
High Light:

90V explosion proof led lamp

,

IP68 explosion proof led lamp

,

185w portable explosion proof lamp

Razorlux obstruction led explosion-proof lights Class IP68 explosion proof led lamp

FEATURES:

1.High Efficacy low decay 700MA LED chip
2.High heat transmit die cast housing ADC12 aluminum, patent design, IP68
3.Shock and vibration resistant tempered glass, super clear 95% light transmit rate
4.Anti-glare.Scientific optical reflector design, making the light more focus,even, comfortable for eyes
5.Original Bridgelux LED source,high luminous efficacy and long lifespan
6.MEANWELL HLG series driver, the highest level of MEANWELL driver
7.Surface treatment-Powder painted, salt resistant and chemical resistant, also hard for dust to accumulate on the surface
8.2.0mm aluminum PCB with heat index 2.5, keep LED working under cool temperature
9.Working temperature: -30ºC to 50ºC.



ITEM NO.
RLEP-J40
RLEP-J100
RLEP-J200
TOTAL POWER
30w
100w
185w
Replace HPS
150w
300-350w
700-1000w
Dimension
200*200*270mm
300*300*175mm
400*400*185
Weight
4KG
7.5KG
12KG
Reflector/ wide angle
120
wide angle
wide angle
Nominal lumens
3480lm
11600lm
20880lm
Driver Current
350mA
# OF LEDS
24
84
156
System Efficacy
116 LM/W
Light Color option
5700/4000/2700K
Materia
Die Cast Aluminum
Wide AC input
90-305 VAC
Power Factor
0.98
Total Harmonic Distortion
< 10%
Surge protection
IEC/EN 61000-4-5
Operation temp
-30 ºC to +50 ºC
IP class
68
Rated Life
100,000+ hrs
Warranty
5 years
Certificate
ROHS CE DLC ATEX SAA PSE C-TICK

Application
1. Suitable for gas station, petroleum and chemical industries, coal mine, military, airport, warehouse, marine etc.
2. Zone1 & Zone2 gaseous environment, and Zone21 & Zone22 dust environment.
3. Class I Division 2 Group A, B, C, D


These heavy-duty explosion proof LED lights are designed for hazardous locations in which vapors and gases are present.

They're Class 1 Div 2 rated for granaries, mills, mines, gas stations, airplane hangars, and environments where petrochemical vapors exist.

The waterproof explosion-proof LED lights are durably constructed with fully-sealed, vibration-resistant housings to prevent the release of sparks.

Not only will these lights increase safety, they will do so while lowering energy costs and increasing light output.

Obstruction IP68 Explosion Proof Led Lamp Portable 185w 90V 1


Tag:

3480lm Led Explosion Proof Light,

0.98 Led Explosion Proof Light,

2700K Led Explosion Proof Light
