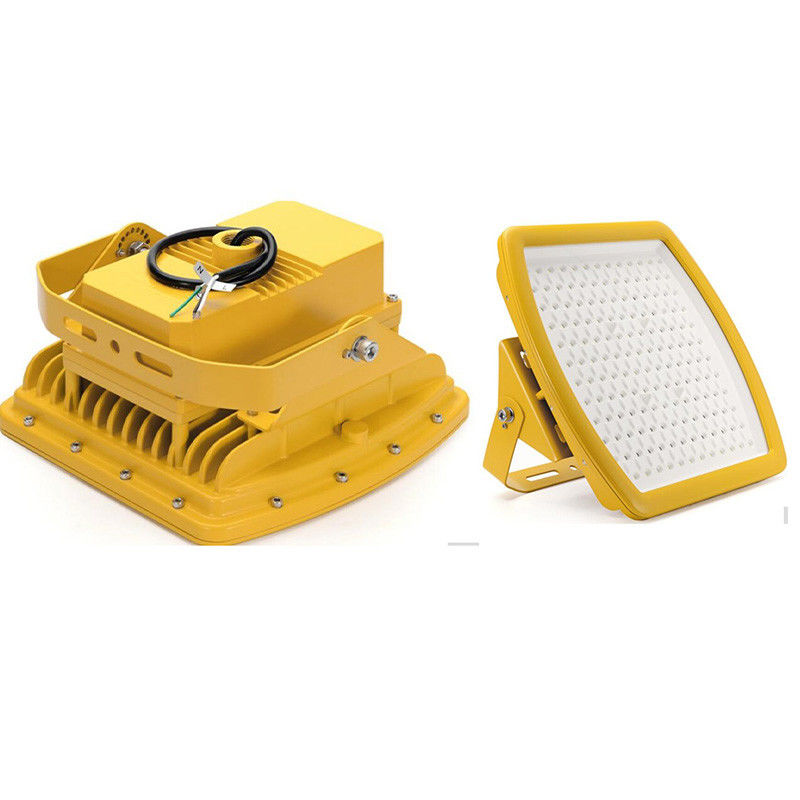

2700K 0.98 Led Explosion Proof Light 100w Outdoor Lamp Die Cast Aluminum

2700K 0.98 Led Explosion Proof Light 100w Outdoor Lamp Die Cast Aluminum

  • 2700K 0.98 Led Explosion Proof Light 100w Outdoor Lamp Die Cast Aluminum
2700K 0.98 Led Explosion Proof Light 100w Outdoor Lamp Die Cast Aluminum
Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, C-tick, PSE, RoHS, Saa
Model Number: R EP-J-100
Payment & Shipping Terms:
Price: $200.00 - $255.00/Pieces
Packaging Details: Delivery term: FOB Tianjin/Shanghai, EX-Work, CFR, CIF <br>3-5 days for samples after payment
Supply Ability: 1000 Piece/Pieces per Week
Contact Now
Detailed Product Description
Color Temperature(CCT): 5700/4000/2700K, Cool White Input Voltage(V): 90-305 VAC
Lamp Luminous Efficiency(lm/w): 116, 116(lm/w) Warranty(Year): 5-Year
Color Rendering Index(Ra): 75 Product Name: 100W Explosion Proof LED Lights
Power: 100W Material: Die Cast Aluminum
DRIVE CURRENT: 350 MA Power Factor: 0.98
Warranty: 5 Years Application: Gas Station/chemical Industries/airport/warehouse/marine
Port: TIAN JIN
High Light:

2700K Led Explosion Proof Light

,

0.98 Led Explosion Proof Light

,

100w outdoor explosion proof lamp

Newest design outdoor lighting Building safety 100w explosion proof led light


FEATURES:

1.High Efficacy low decay 700MA LED chip
2.High heat transmit die cast housing ADC12 aluminum, patent design, IP68
3.Shock and vibration resistant tempered glass, super clear 95% light transmit rate
4.Anti-glare.Scientific optical reflector design, making the light more focus,even, comfortable for eyes
5.Original Bridgelux LED source,high luminous efficacy and long lifespan
6.MEANWELL HLG series driver, the highest level of MEANWELL driver
7.Surface treatment-Powder painted, salt resistant and chemical resistant, also hard for dust to accumulate on the surface
8.2.0mm aluminum PCB with heat index 2.5, keep LED working under cool temperature
9.Working temperature: -30ºC to 50ºC.


Replace your old class 1, division 2 with a high efficiency LED. Save money and replace bulbs less often with a 100,000 hour rated LED.

Fixture is also ideal for new installations. Save money and improve lighting


ITEM NO.
RLEP-J40
RLEP-J100
RLEP-J200
TOTAL POWER
30w
100w
185w
Replace HPS
150w
300-350w
700-1000w
Dimension
200*200*270mm
300*300*175mm
400*400*185
Weight
4KG
7.5KG
12KG
Reflector/ wide angle
120
wide angle
wide angle
Nominal lumens
3480lm
11600lm
20880lm
Driver Current
350mA
# OF LEDS
24
84
156
System Efficacy
116 LM/W
Light Color option
5700/4000/2700K
Materia
Die Cast Aluminum
Wide AC input
90-305 VAC
Power Factor
0.98
Total Harmonic Distortion
< 10%
Surge protection
IEC/EN 61000-4-5
Operation temp
-30 ºC to +50 ºC
IP class
68
Rated Life
100,000+ hrs
Warranty
5 years
Certificate
ROHS CE DLC ATEX SAA PSE C-TICK



1. UL TUV CB EMC CE certified MW
HLG series power driver, IP67
protective level, 7 years warranty.

2. The integration of reflective optical
design,install directly in the light body,
make the light more focus and
comfortable for eyes.

3. High pressure die casting alloy aluminum
housing, create through high pressure(1600
ton) in one piece,high explosion proof level
and IP68 waterproof protection.

4. LED chip with 2.0mm thick Aluminum PCB board
installed directly onto Aluminum Shell. As a result,
the whole lamp is integrated as a radiator for the
LED chips. Besides,the distance of LEDS are good
enough for spreading heat, to ensure long lifespan,
and with special circuit design, each LED chip
won’t affect the others when fail to work, so the
lamp will keep working even if some LED chips
stopped.



2700K 0.98 Led Explosion Proof Light 100w Outdoor Lamp Die Cast Aluminum 1
