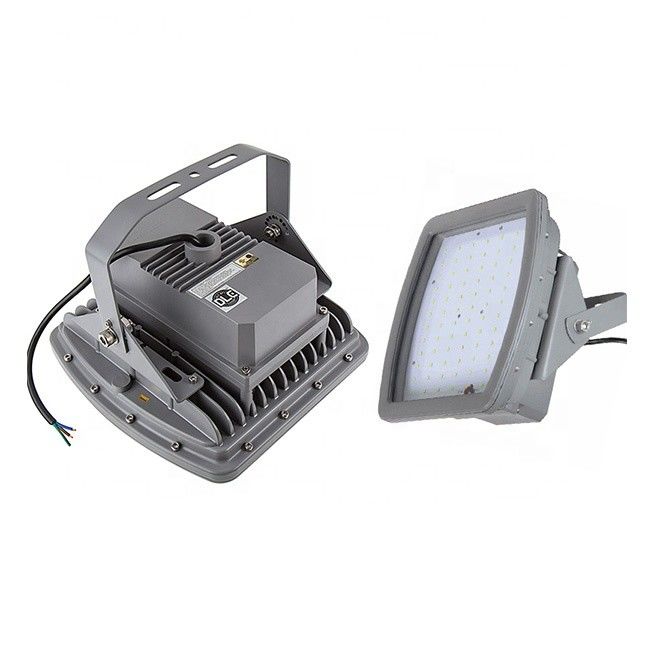

PSE Led Explosion Proof Light Fixtures IP68 Corrosion Resistant Construction

1.High Efficacy low decay 700MA LED chip
2.High heat transmit die cast housing ADC12 aluminum, patent design, IP68
3.Shock and vibration resistant tempered glass, super clear 95% light transmit rate
4.Anti-glare.Scientific optical reflector design, making the light more focus,even, comfortable for eyes
5.Original Bridgelux LED source,high luminous efficacy and long lifespan
6.MEANWELL HLG series driver, the highest level of MEANWELL driver
7.Surface treatment-Powder painted, salt resistant and chemical resistant, also hard for dust to accumulate on the surface
8.2.0mm aluminum PCB with heat index 2.5, keep LED working under cool temperature
9.Working temperature: -30ºC to 50ºC.

1. Suitable for gas station, petroleum and chemical industries, coal mine, military, airport, warehouse, marine etc.
2. Zone1 & Zone2 gaseous environment, and Zone21 & Zone22 dust environment.
3. Class I Division 2 Group A, B, C, D



BETTER DESIGN - 200 watt hazardous location light is powered by Epistar 2835 LEDs. LEDs that drive a high quality light with an impressive 84 CRI.

CLASS I, DIV II APPROVED - Certified for mines, marine, military, gas and other higher risk areas

SMALLER SIZE - New design the latest in LED technology. Smaller, longer lasting and more efficient.

EASY INSTALLATION - power port on side enable you to build the wiring as needed.

Preinstalled wires and hook makes installation easy. Simple replacement for existing lights or for new installation.

Product Weight only 14.52LB for easy handling.

BRIGHT, DIRECT and BUILT TO LAST - 120 Degree angle of light creates a wide even light.

100,000 LED saves having to replace bulbs- Aluminum Housing with high tech Heat Sink protects the LED Driver.

Better Heat dissipation ensures longer LED life and safety.

UL RATED & WARRANTY - UL listed for safety and 5 year rock solid warranty

These lights are the latest in LED technology. Smaller size and more efficient than the traditional High Bay Lights, these look better, last longer and are easier to install.



ITEM NO.	RLEP-J40	RLEP-J100	RLEP-J200
TOTAL POWER	30w	100w	185w
Replace HPS	150w	300-350w	700-1000w
Dimension	200*200*270mm	300*300*175mm	400*400*185
Weight	4KG	7.5KG	12KG
Reflector/ wide angle	120	wide angle	wide angle
Nominal lumens	3480lm	11600lm	20880lm
Driver Current	350mA
# OF LEDS	24	84	156
System Efficacy	116 LM/W
Light Color option	5700/4000/2700K
Materia	Die Cast Aluminum
Wide AC input	90-305 VAC
Power Factor	0.98
Total Harmonic Distortion	< 10%
Surge protection	IEC/EN 61000-4-5
Operation temp	-30 ºC to +50 ºC
IP class	68
Rated Life	100,000+ hrs
Warranty	5 years
Certificate	ROHS CE DLC ATEX SAA PSE C-TICK
